Installation

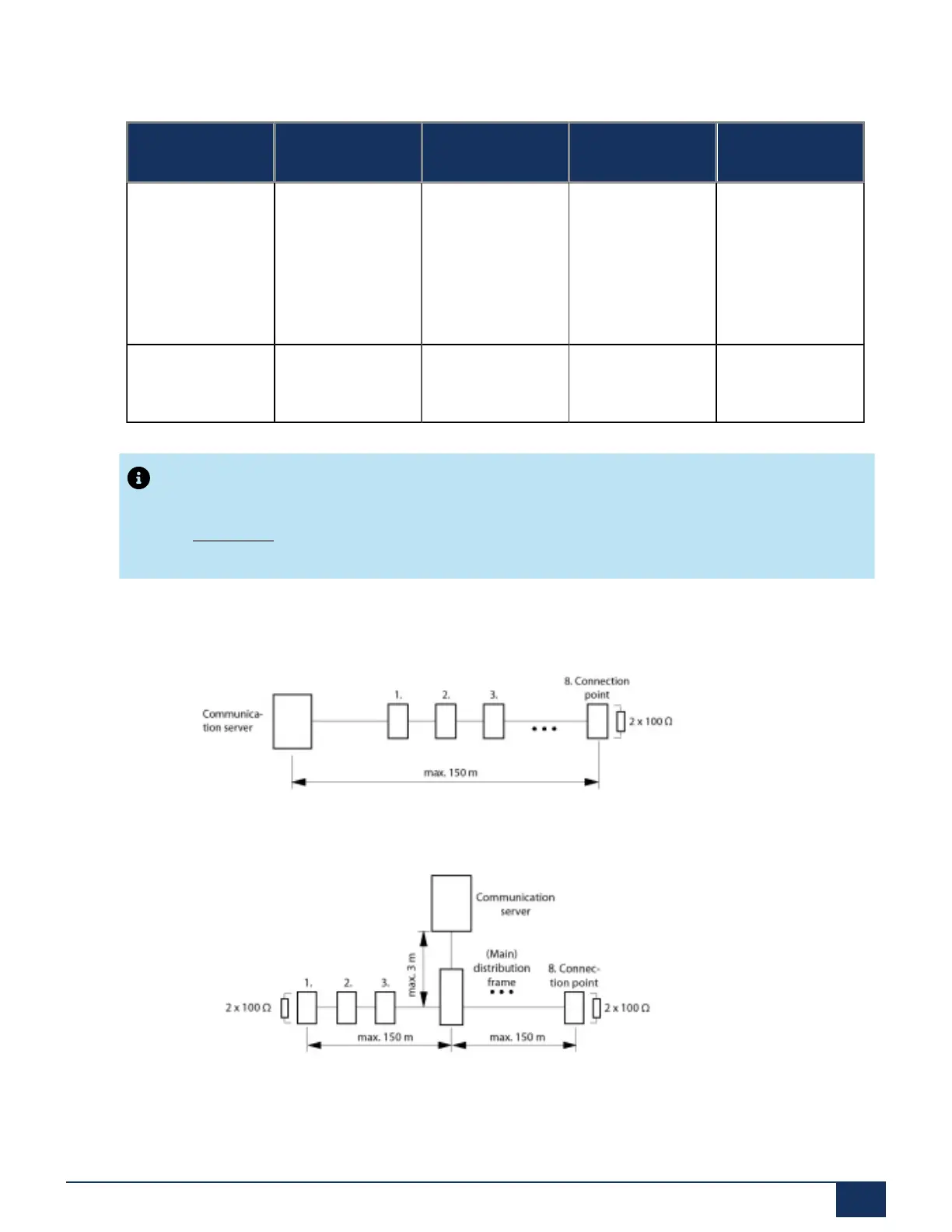

Table 52: S bus configurations depending on line length and the number of terminals.
S bus Short Short, V-shaped Long Point-to-point
Length (max.)
Server « terminal
Terminal 1 «
Terminal 4
150 m
–
2 ´ 150 m
–
500 m
20 m
1’000 m
–
Number of
terminals (max.)
8 8 4 1
Note:
The maximum number of terminals per S bus depends on the power requirements of the terminals
(see Restrictions).
Figure 41: S bus, short
Figure 42: S bus, short, V-shaped
Figure 43: S bus, long
Release 7.1
System Manual for Mitel SMB Controller 136
