Installation

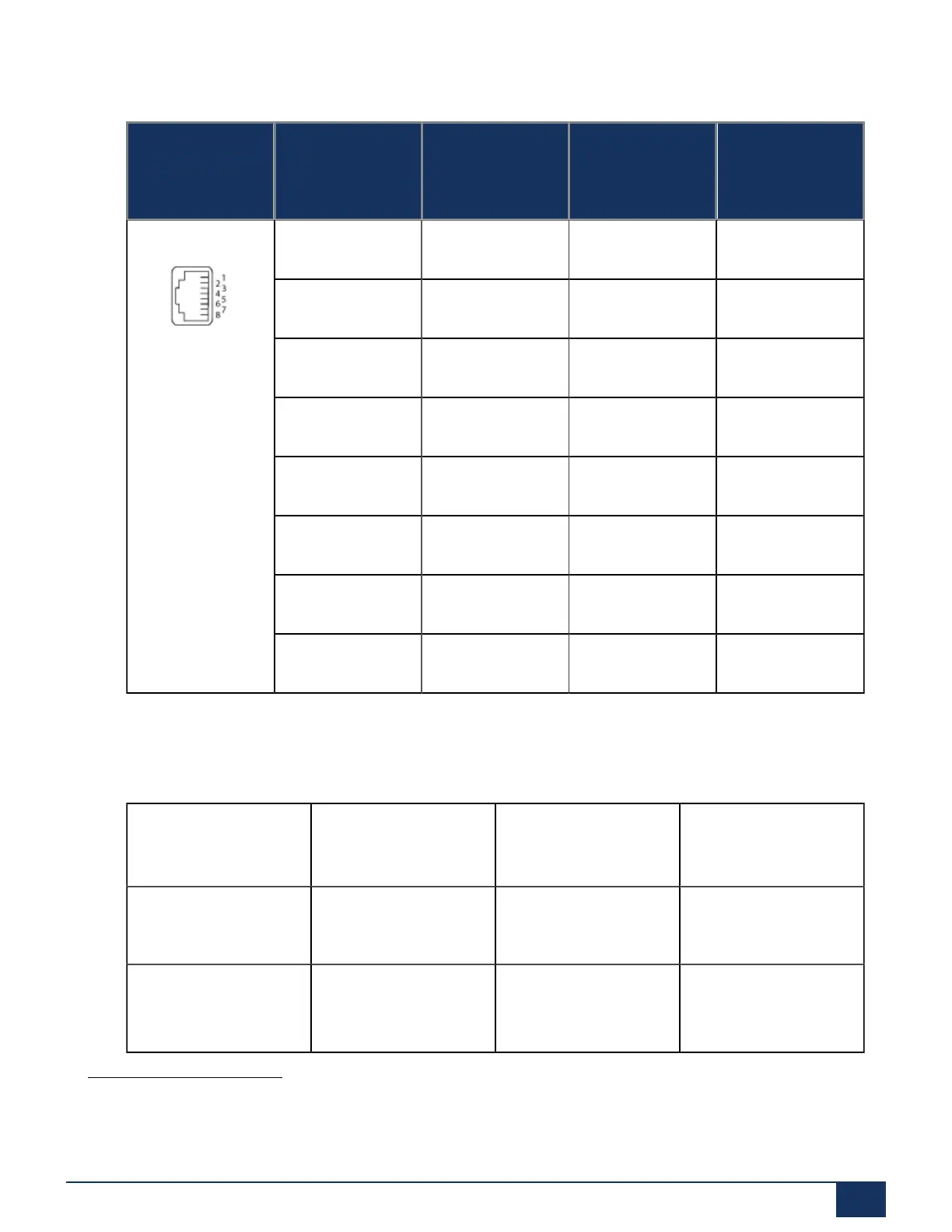

Table 69: Power over Ethernet
RJ45 socket Pin Signal PoE power
supply (Variant
1)
PoE power
supply (Variant
2)
1 Rx DC+ —
2 Rx DC+ —
3 Tx DC- —
4 — — DC+
5 — — DC+
6 Tx DC- —
7 — — DC-
8 — — DC-
Depending on the power requirements different classes are defined in the IEEE 802.3af standard. The
following table provides information on the class allocation of the IP system phones.
Table 70: PoE class allocation
Class
Max. load, PSE
59
Max. power
requirement, PD
60
IP system phones
1 4.0 W 0.44...3.84 W MiVoice 5360 IP,
MiVoice 5361 IP
2 7.0 W 3.84...6.49 W
MiVoice 5370 IP
61
,
MiVoice 5380 IP
62
59
PSE (Power Source Equipment) = power supply device, e.g. a switch
60
PD (Powered Device) = power consumer, e.g. an IP system phone
61
including an MiVoice M530 or MiVoice M535 expansion keypad
62
including up to three MiVoice M530 or MiVoice M535 expansion keypads
Release 7.1
System Manual for Mitel SMB Controller 160
