Installation
Position the DSI socket(s) near the radio unit.
Each radio unit requires one DSI bus (two optional on the SB-8): Do not connect any other terminals.
The radio units can be powered from the communication server up to the maximum line length of 1200 m
specified for operation (wire diameter 0.5 mm). The plug-in power supply unit for is the same as the one for
the Office 135 charging bay.

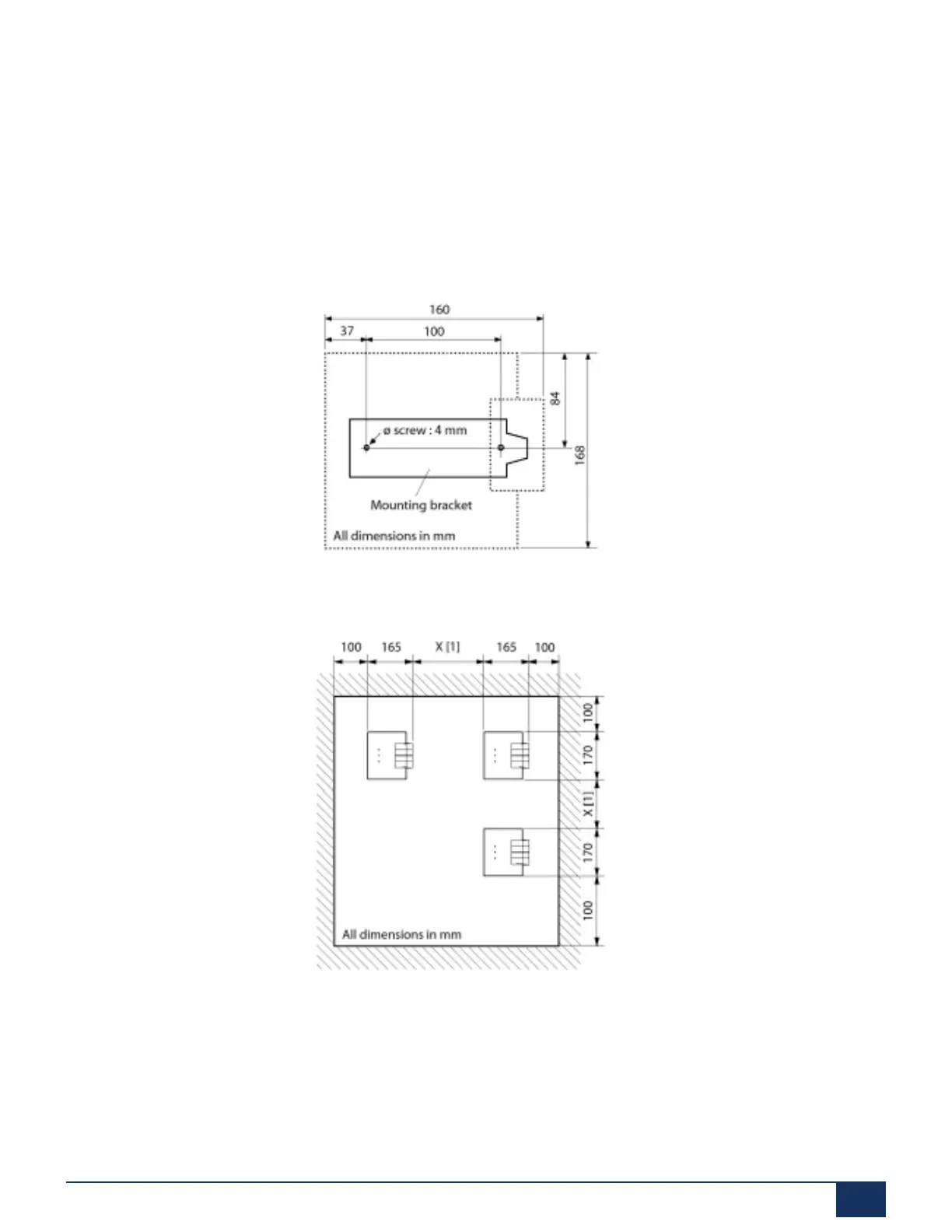

Figure 61: Dimensional drawing for wall-mounting the mounting bracket
Figure 62: Installation distances
[1] X = 200: Minimum distance if the radio units are connected to the same communication server
(synchronous)
X = 2000: Minimum distance if the radio units are not connected to the same communication server (not
synchronous)
Release 7.1
System Manual for Mitel SMB Controller 168
