Installation
Make sure the minimum distances are observed
Connecting the radio unit

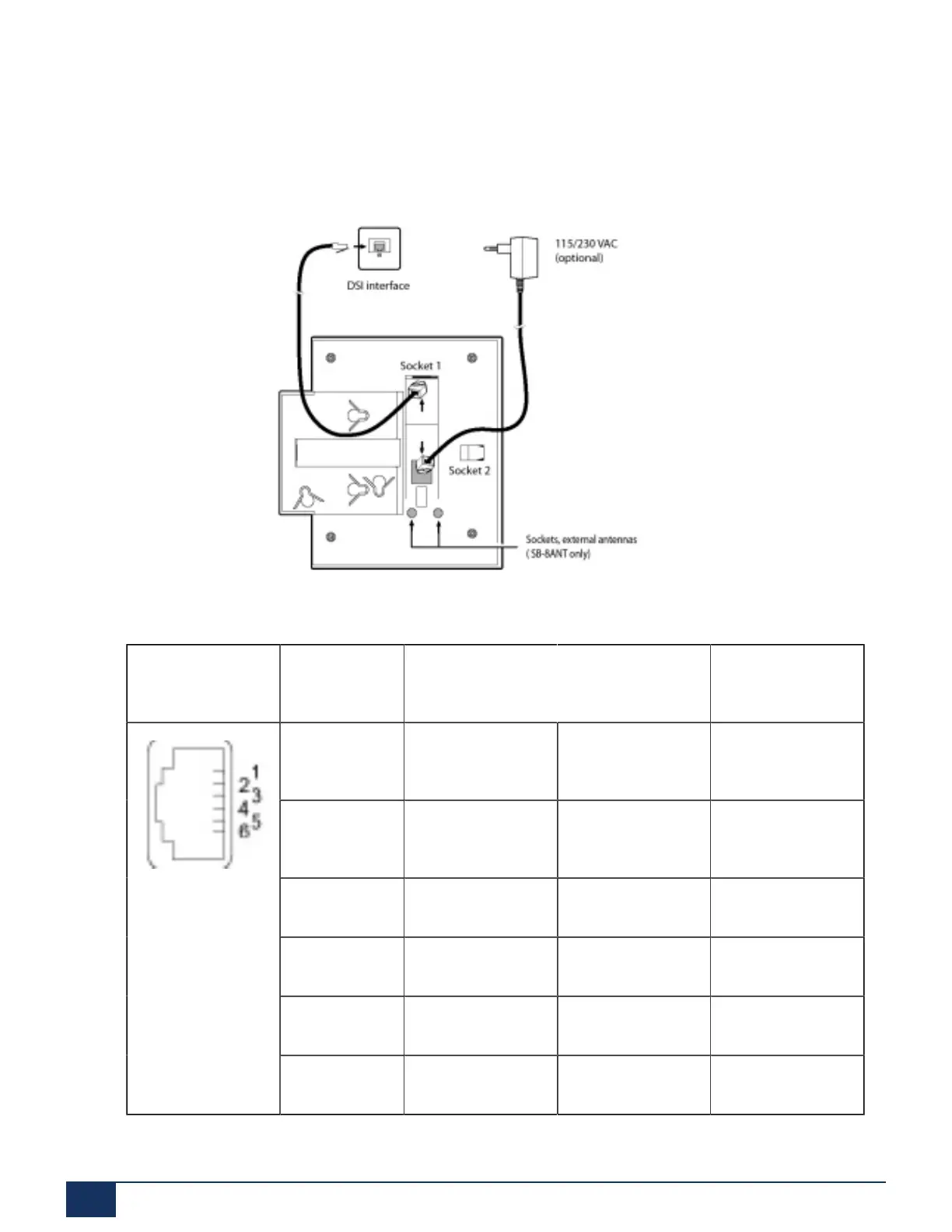

Figure 63: Underside of the radio units with connection points
Table 73: Connections on the Mitel DECT radio units
RJ12 sockets Pin Socket 1: DSI interface Socket 2: Power
supply
SB-4+ SB-8 / SB-8ANT SB-4+ / SB-8 /
SB-8ANT
1 Local power supply
–
Local power supply
–
Local power supply
–
2 — b2 —
3 b1 b1 —
4 a1 a1 —
5 — a2 —
Release 7.1
169 System Manual for Mitel SMB Controller
