14.5.3. Current
Data concerning the electrical current value of each axis motor can be monitored.
The following data can be monitored.
- Current cmd
The current command of the motor is displayed.
- Max. current cmd1
The maximum value of the current command after robot controller power supply is turned on is displayed.
- Max. current cmd2
The maximum value of the current command for the last 2 seconds is displayed.
- Current feedback
A present value of the motor current is displayed.
- Tolerable cmd-/+
The limit value of the minus side and the plus side of the current command set to the motor is displayed.
- RMS current
Present RMS value of the motor current is displayed.
Click [Reset] button to reset all Servo Monitor.

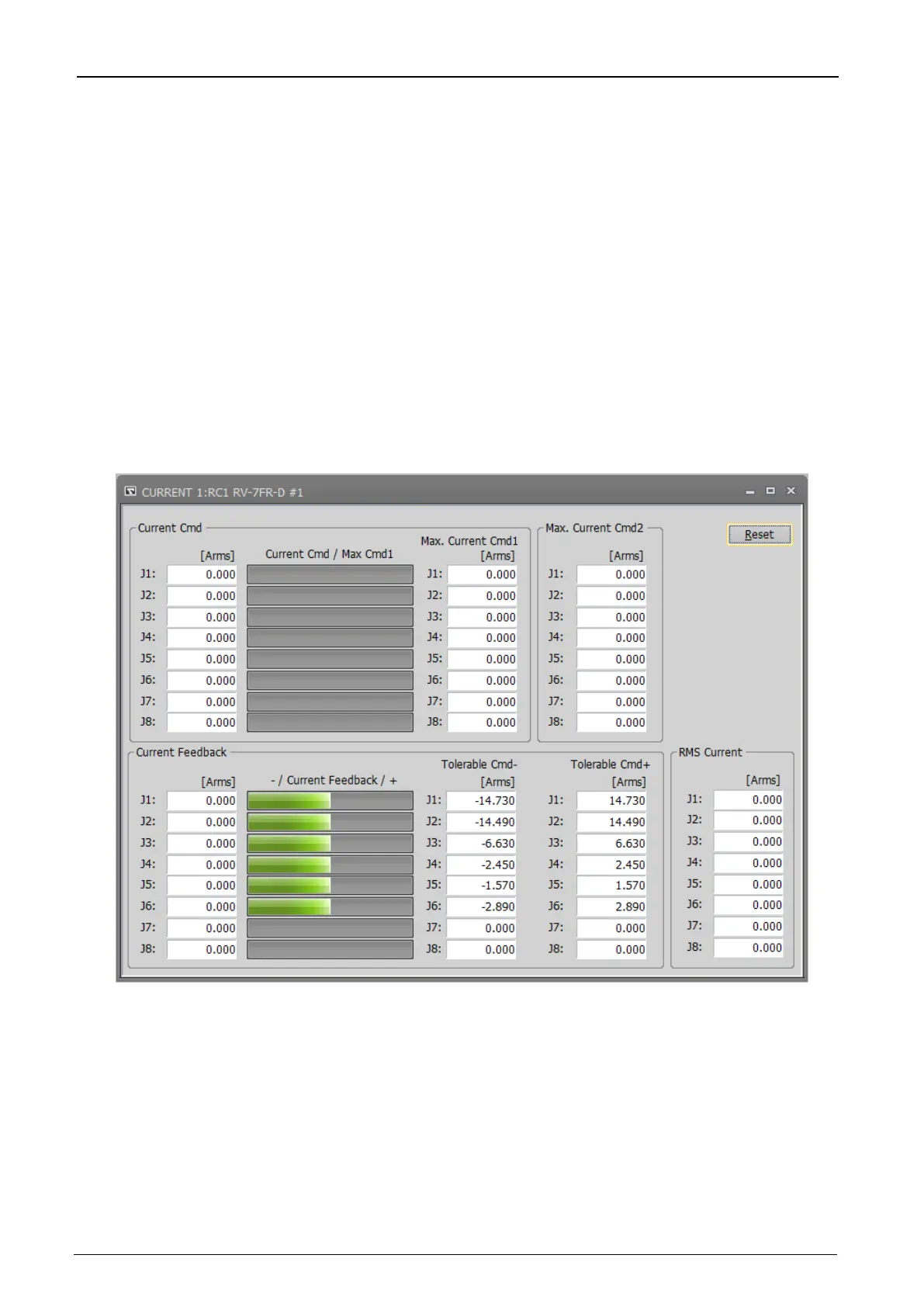

Figure 14-52 Servo monitor - Current
