21.5.3. Displaying coordinate axes
When [Display coordinate axes] is set to [False], the coordinate axes displayed at the origin in the 3D monitor
and the small coordinate axes displayed at the reference position of the robot model are hidden.

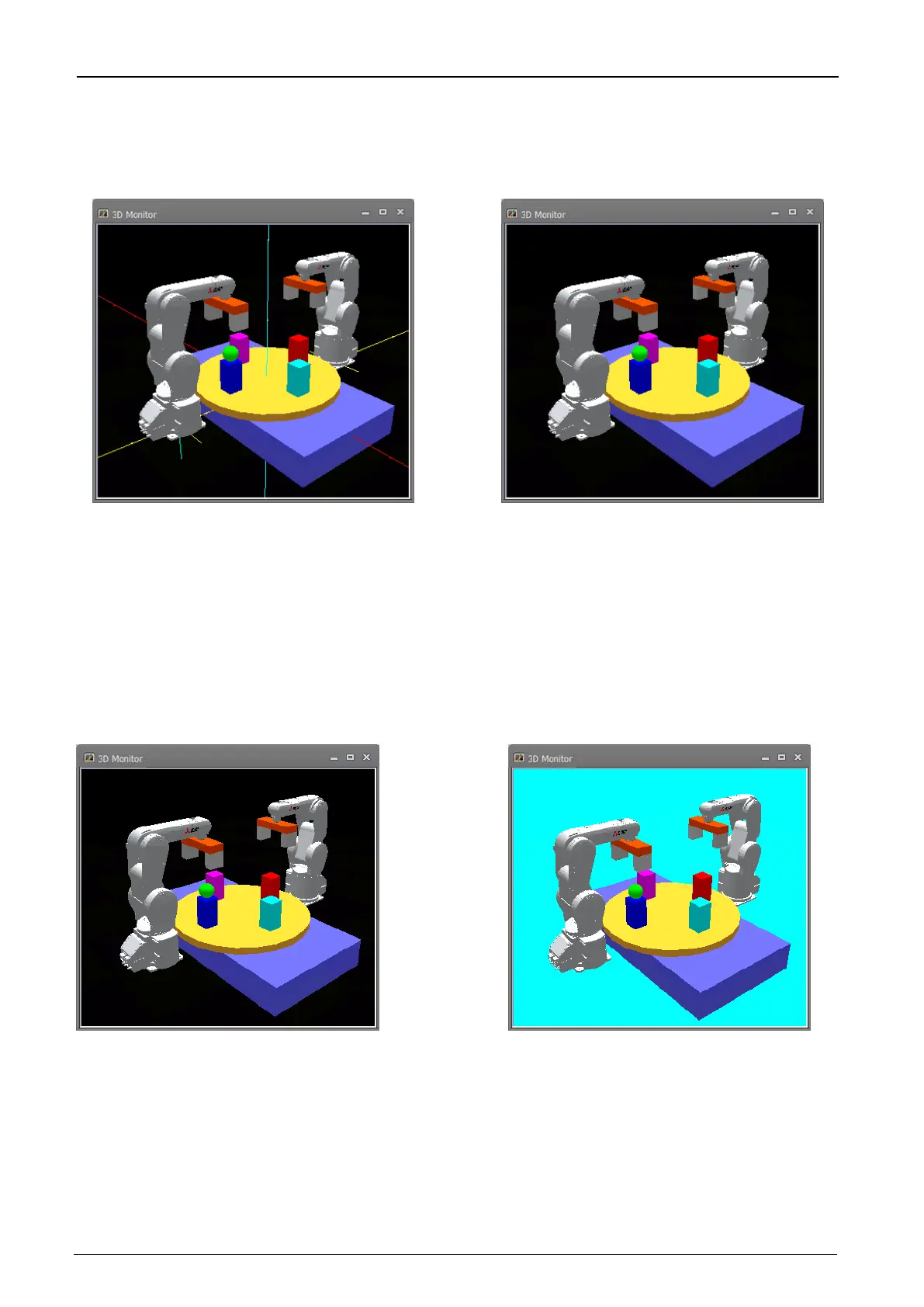

Figure 21-38 Displaying and Hiding the Coordinate Axes
21.5.4. Background color
When [Background color] is changed, the background color in the 3D monitor is changed to the new color. Click
the [...] button at [Color]. The Set Color screen is displayed. Set the new color in this screen.
The Set Color screen is also displayed just like clicking the [...] button at [Color] by clicking the [3D view] tab ->
[3D View] group -> [Background color] button on the ribbon.
Figure 21-39 Changing the Background Color
Coordinate axes displayed
Background color (0; 0; 0)
Background color (0; 255; 255)
