3-44 3-44
3. RT ToolBox3 Usage
This explains the usage of this software simply.
3.1. Starting RT ToolBox3
When you install this software, a shortcut is prepared on the desktop. Start RT ToolBox3 by double clicking this
short cut.

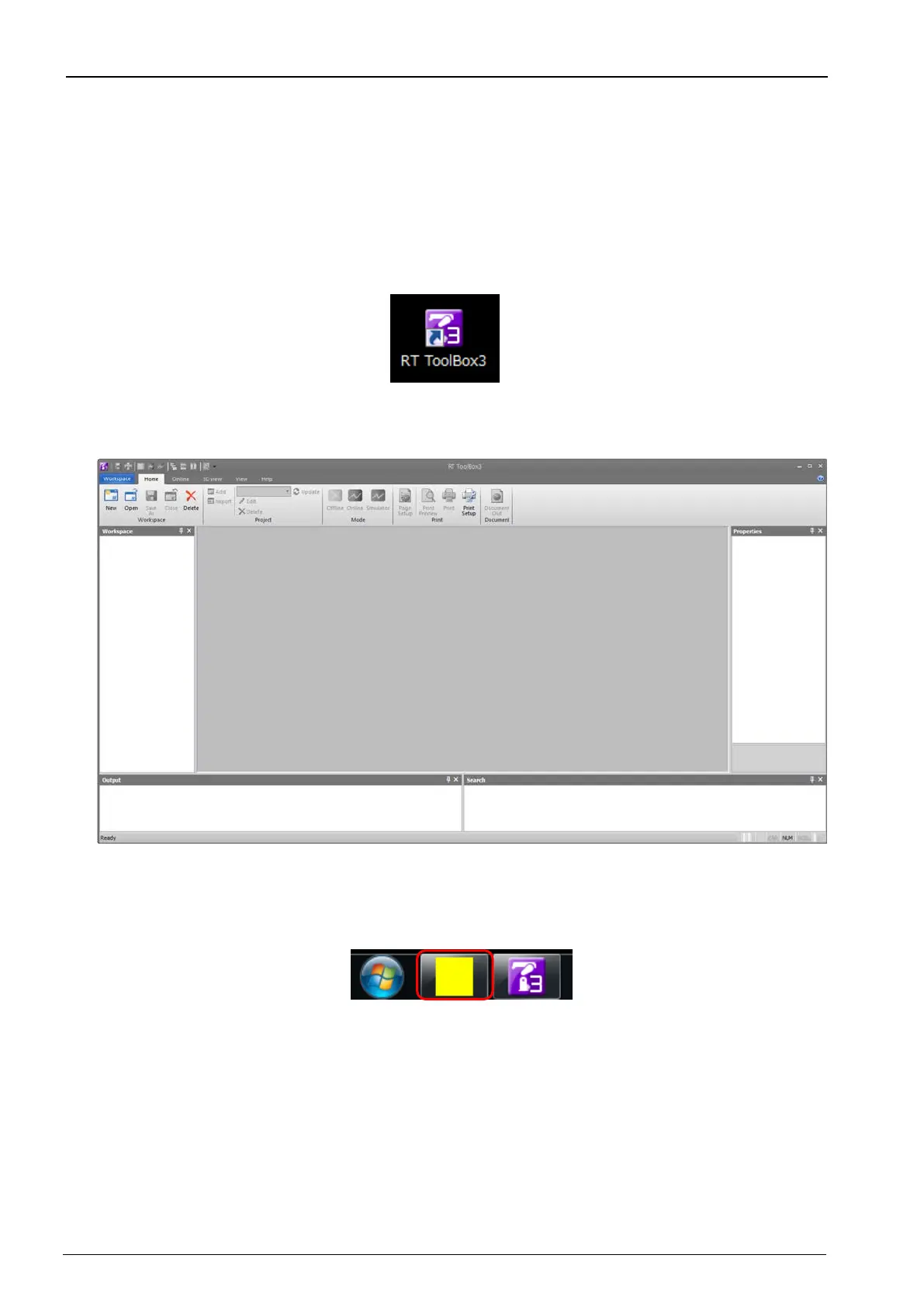

Figure 3-1 RT ToolBox3 Shortcut
From [Start] button -> [All Programs] -> [MELSOFT], select [RT ToolBox3] and start it.
Figure 3-2 RT ToolBox3 Initial Screen
When you start RT ToolBox3, "Communication Server 2" is started up as an icon.
This Communication Server 2 has functions for connecting with a robot controller or, during a simulation, a virtual
controller. Do not close Communication Server 2.
Figure 3
3 Communication Server 2
To Next Page
