8.9.3. Step 3. Communication
Set up communication with the robot controller to connect to the robot.
The network setup set on the personal computer can be copied to this screen by clicking the [Copy This PC Setting]
button.
For details on how to set the communication method, refer to "9.2 Connection Settings".

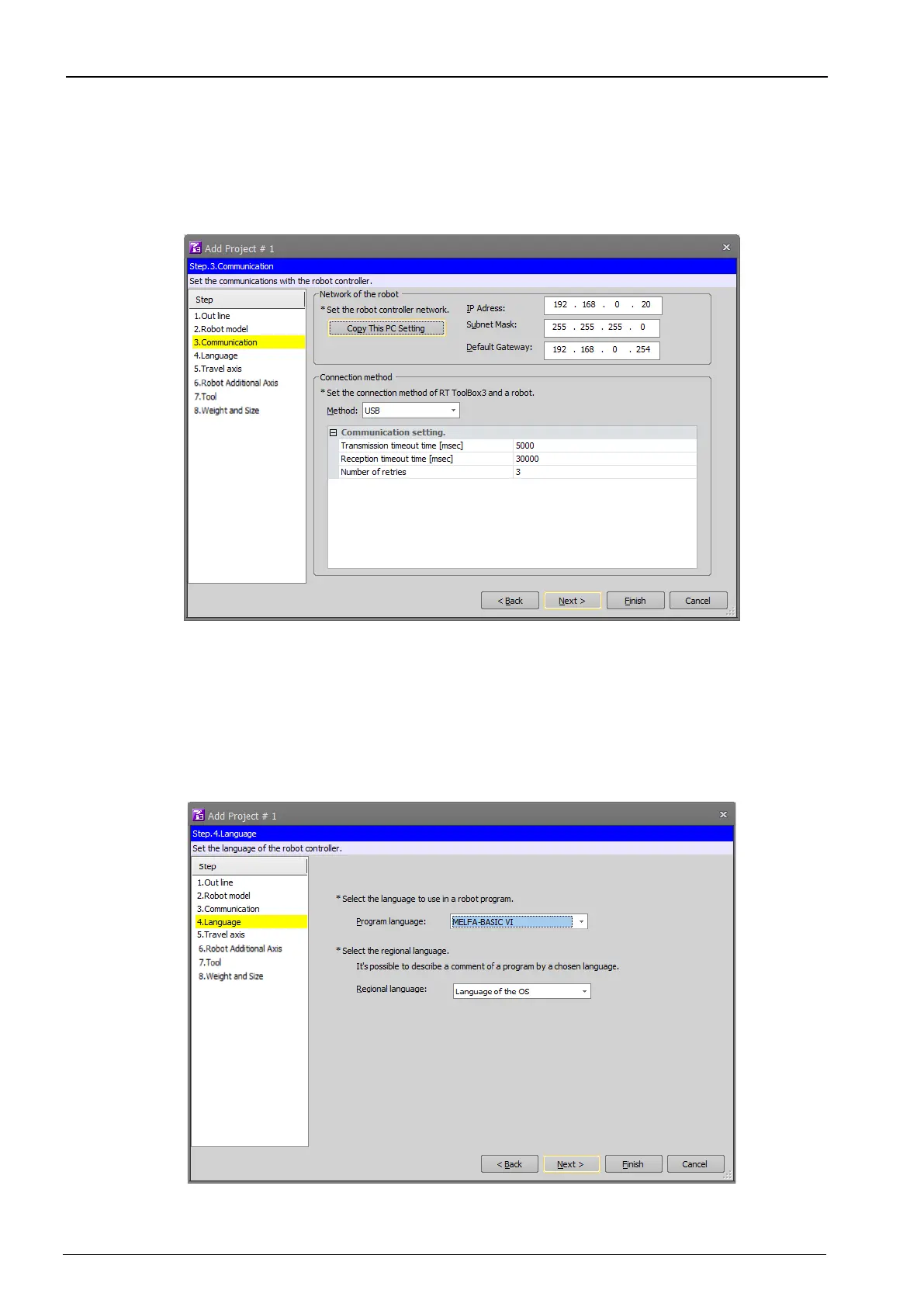

Figure 8-14 Add Project Screen (Step 3. Communication)
8.9.4. Step 4. Language
Select the program language that is used for programming the robot program. For details, refer to "10 Robot
Programming Language Setting".
Also, at "Regional language", set the language in which comment text in the robot program and messages set by the
user errors are handled. As the default setting, it is set so as to match "Language of the OS".
Figure 8-15 Add Project Screen (Step 4. Language)
