21.6.10. Free plane limit
You can check the free plane limit on the 3D monitor.
Only numbers set with the free plane limit parameter are displayed at "Properties".
In the offline mode, [Free plane limit] is not displayed.
When a number item is set to [True], the respective free plane limit is displayed.
Also, multiple free plane limits can be displayed together by entering only the numbers of specific free plane limits
to display in the format "[1; 2]" in [Display].
The length of one side of a free plane limit can be changed at [Length]. Note, however, that locations that are not
displayed cannot be moved simply by their display on the 3D monitor being changed.

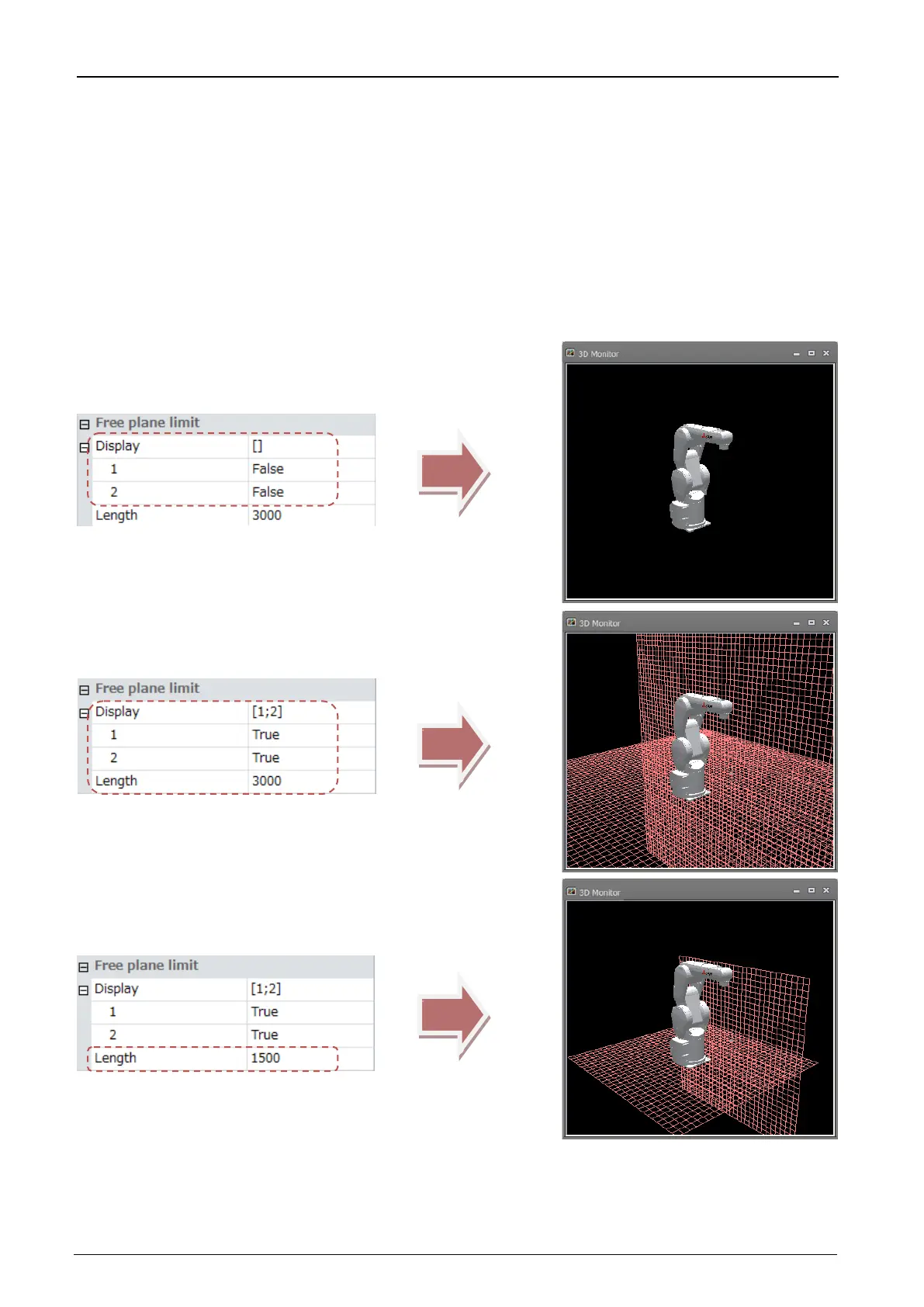

Figure 21-59 Displaying and Hiding Free Plane Limits and Changing Length
