8.14. Contents of Project Tree
A project tree shows the current workspace's project configuration in a hierarchical manner.
You can start all functions from the project tree, including program editing, monitoring, etc.
The contents of the project tree depend on the state of connection with the robot controller.

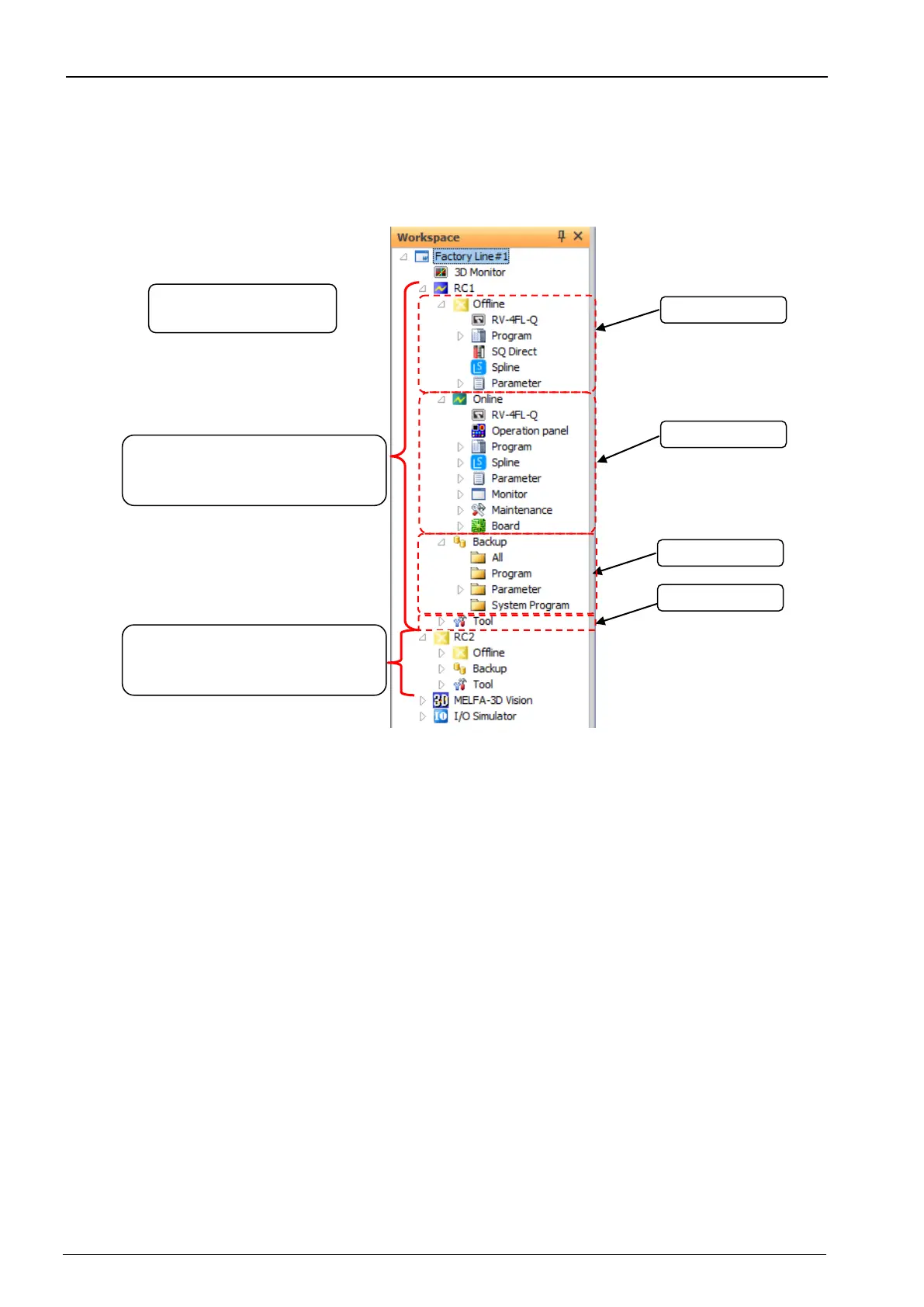

Figure 8-26 Structure of Project Tree in Workspace
(1) Offline/Simulation
Displays the information stored in computer. In the simulation mode, "Simulation" is displayed.
The name of the currently set robot model, name of the robot program/SQ direct file/spline file, and parameter
items that can be referenced are displayed.
(2) Online
The "Online" area is displayed when the online mode is switched to after connecting to the controller.
The name of the currently connected robot model and information items that can be referenced in the controller
are displayed.
(3) Backup
Controls the information backed up from the controller.
(4) Tool
Other functions are displayed.
each project.
<Project name: RC1>
Connected with the controller.
<Project name: RC2>
Not connected with the controller.
