Mitutoyo ID-C Series User Manual

2
1 Overview
No. 99MAH056A
1.2

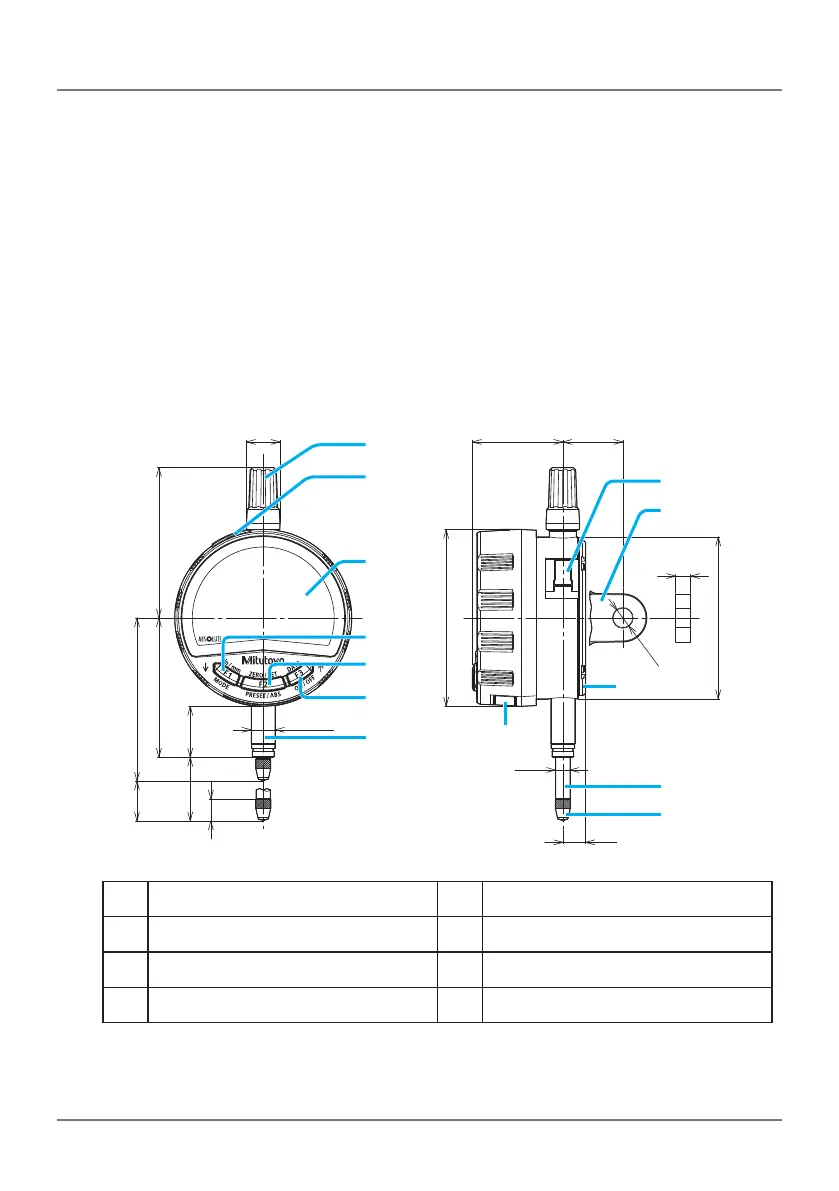

Names and Dimensions of Components
1. 2.1 Main Unit
■ISO/JIS models
Back with lug type:
ID-C0512NX, ID-C0512MNX, ID-C0512CNX, ID-C0512CMNX,
ID-C1012NX, ID-C1012MNX, ID-C1012CNX, ID-C1012CMNX
Flat back type*:
ID-C0512NXB, ID-C0512MNXB, ID-C0512CNXB, ID-C0512CMNXB,
ID-C1012NXB, ID-C1012MNXB, ID-C1012CNXB, ID-C1012CMNXB
①
②
④
⑤
⑥
⑦
⑧
⑨
⑫
⑪
⑩
⑬
③
ø4.8
ø6.5
7.6 *
ø8
0
-0.009
50.146.5
ø59
ø54
54.4
13.3
21.2
7.3
17
ø11.2 30.5 20
5
Unit: mm
①
Cap
⑤
[F2] key
②
I/O connector (with cover)
⑥
[F3] key
③
Display (LCD)
⑦
Stem
④
[F1] key
⑧
Battery holder
