5 Setting Parameters
(Short press) / (Long press)
5.11.3 Selecting Digimatic Output
For the following models, the data format setting for external output of
displayed values can be changed. Select from DIGIMATIC d1 (6-digit output) or
DIGIMATIC d2 (8-digit output).
ID -C0512NX, ID-C0512NXB, ID- C0512MNX, ID-C0512MNXB,
ID -C0512ENX, ID-C0512ENXB, ID-C0512CNX, ID -C0512CNXB,
ID-C0512CMNX, ID-C0512CMNXB, ID-C0512CENX, ID-C0512CENXB
2
-1
2
-2
1
F2
F2F1/F3
Go to the
next item

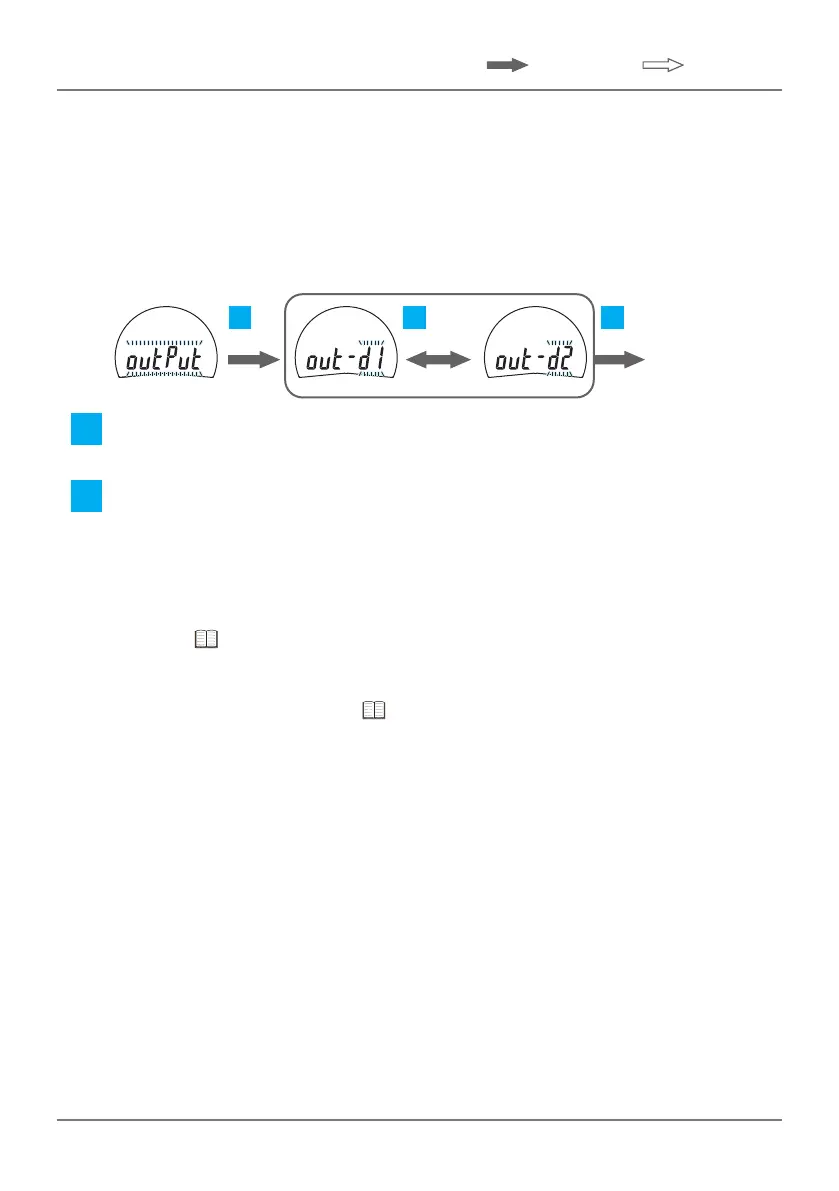

1 Press the [F2] key.
» Digimatic output selection can be set.
2 Select the data format for digimatic output.
1 Press the [F1] key or [F3] key.
» Each time the key is pressed, it will switch between [d1] and [d2].
2 Press the [F2] key.
» Settingisconrmed;shiftstothenextparameteritemof"Otherfunctionchanges".
(Go to "5.11.4 Auto OFF setting" on page 72.)
Tips
For details about data format, see "■Dataformat"onpage90.
