4 Measurement Method
No. 99MAH056A
(Short press) / (Long press)
4.1. 2 Measurement Operations
30.0000 30.000030.0000
1
-2
1
-3
1
-1
2
F2
F2

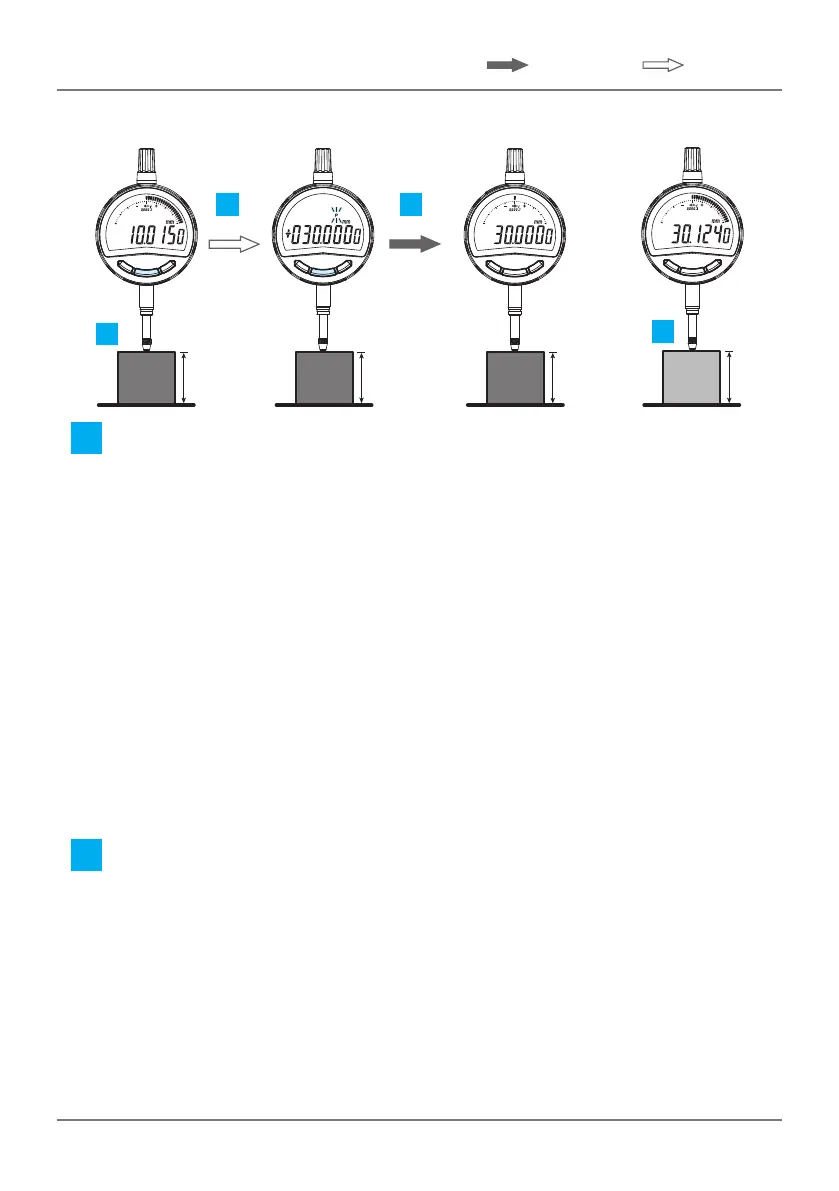

1 Determining the origin (origin point)
1 Set the master to use for reference.
2 Press and hold the [F2] key.
» The preset display ([P]) blinks and the previously set preset value
(e.g. 30.0000 mm) is displayed.
3 Conrmthepresetvalue,andthenpressthe[F2]key.
» The measurement origin is set as the preset value and it becomes measurable.
Tips
• Thesetpresetvalueandoriginareretainedevenwhenthepoweristurnedo󰀨.
However, the preset value is cleared when All Reset is performed and must be
reset.
• The preset value is automatically converted when the unit system or resolution
is changed. In this case, however, a conversion error may be produced. It is
therefore recommended to check the preset value after changing the unit system or
resolution.
2 Replace the master with the workpiece and perform absolute
measurement.
