Mitutoyo ID-C Series User Manual

9
No. 99MAH056A
2 Preparations before Use

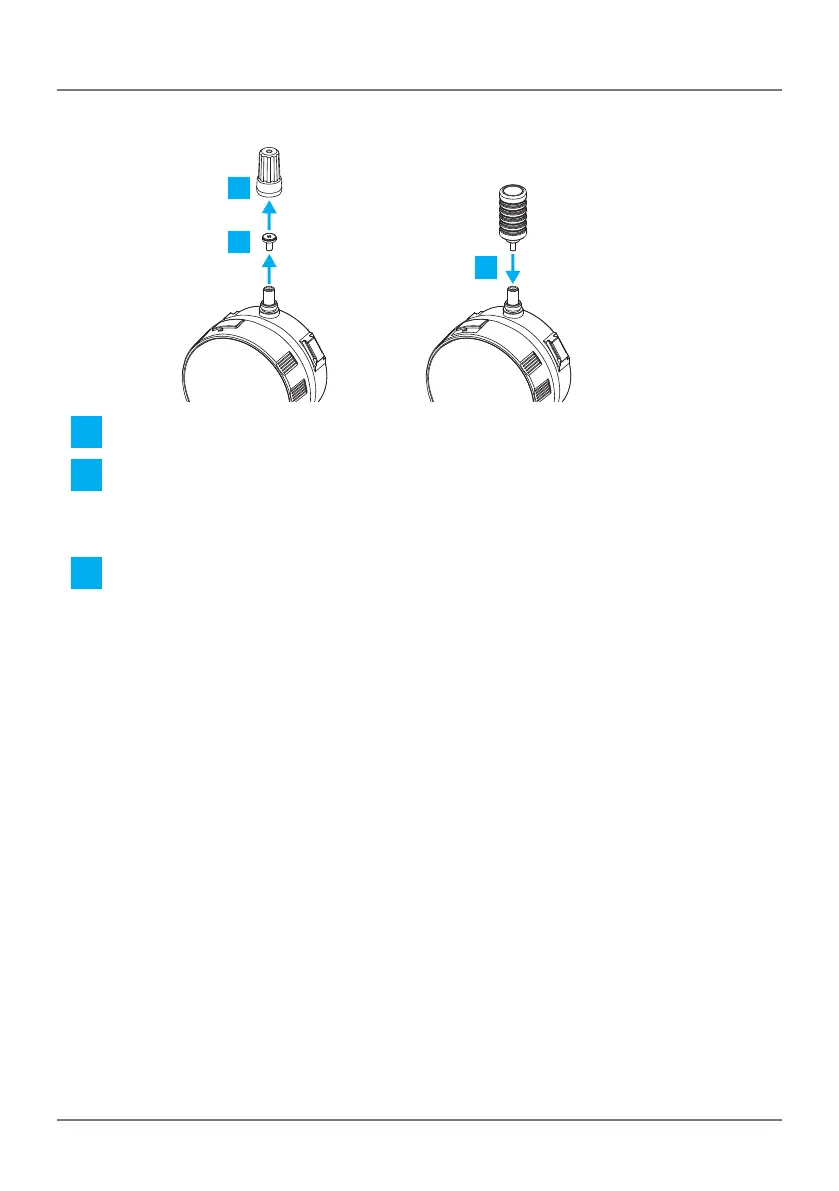

2.2.2 Lifting Knob (Optional)
3
2
1
Cap
Screw
Lifting knob
1 Rotate the cap counterclockwise to remove it from the product.
2 Fix the plunger, using pliers padded with a rag, etc., so that it does not
turn, and then remove the screw (M2.5) on top of the plunger.
During this process, push the plunger upward.
3 Mount the lifting knob on top of the plunger.
Tips
Store the removed screw and cap to prevent loss.
