Mitutoyo ID-C Series User Manual

79
No. 99MAH056A
7 Low Measuring Force Types
7.1.1 Adding/Removing the Coil Spring

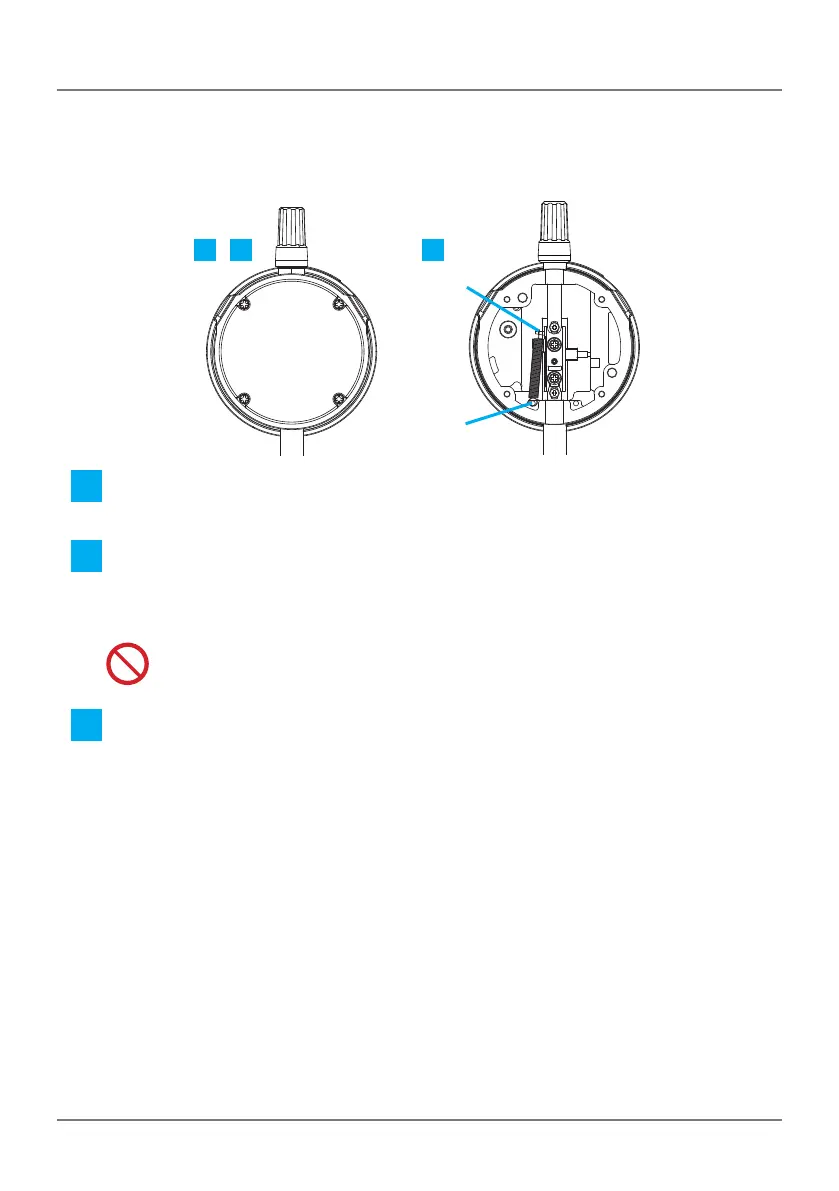

Thecoilspringismountedinsidetheproductasshowninthegurebelow.Use
the following procedure to add or remove it.
A
B
21
3
1 Remove the four screws on the back using a #0 Phillips screwdriver, and
thenremovetheatback.
2 Use a tool such as tweezers to pinch the coil spring hook part, and
then remove the coil spring from the spring attachment hook (A) and
projection(B).
Do not forcibly pull the removed coil spring by hand.
3 Placetheatbackandtightenthefourscrewsonthebackusinga#0
Phillips screwdriver.
