Mitutoyo ID-C Series User Manual

10
2 Preparations before Use
No. 99MAH056A
2.2.3 Release (Optional)
4
2
3
1
Cap
Screw
Screw
Mounting plate
Release

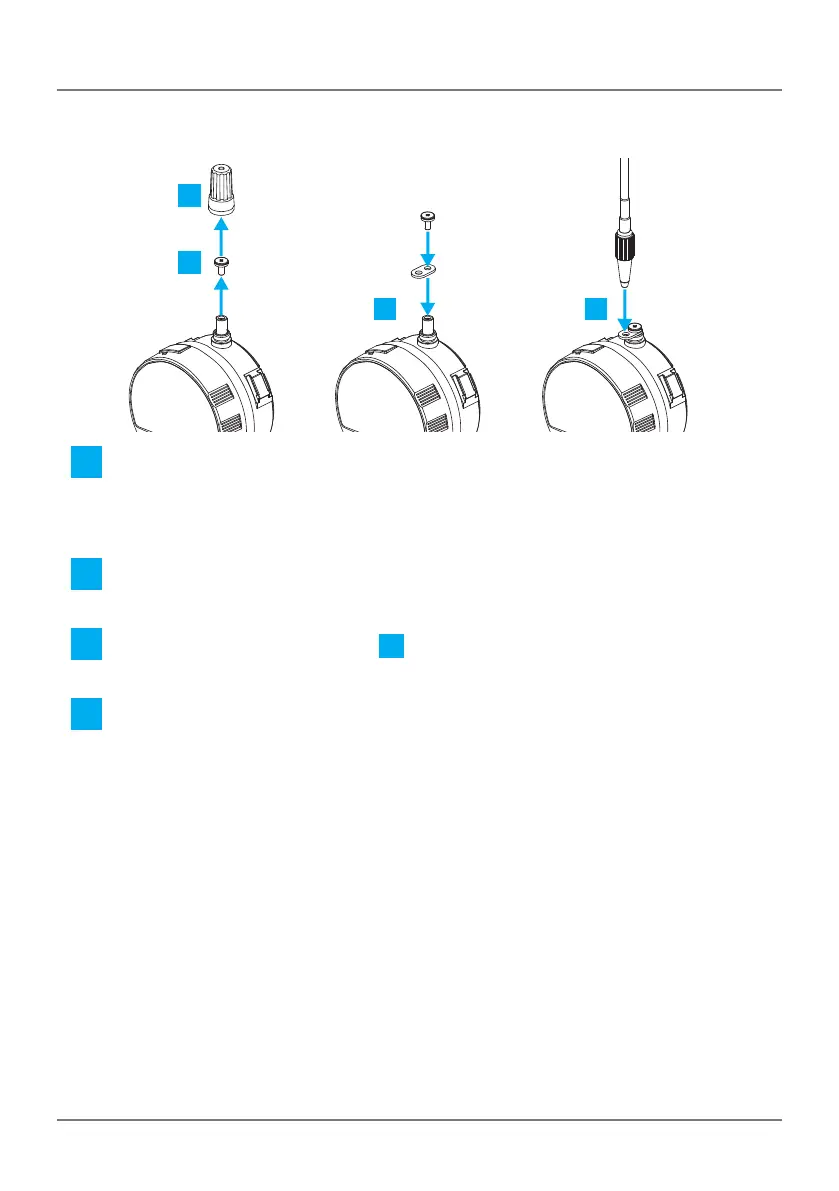

1 Rotate the cap counterclockwise to remove it from the product.
Tips
Store the removed cap to prevent loss.
2 Fix the plunger, using pliers padded with a rag, etc., so that it does not
turn, and then remove the screw (M2.5) on top of the plunger.
3 Use the screw removed in step 2 to secure the mounting plate supplied
with the release to the plunger.
4 Secure the tip of the release to the mounting plate.
