Mitutoyo ID-C Series User Manual

7
No. 99MAH056A
2 Preparations before Use
2
Preparations before Use
2.1

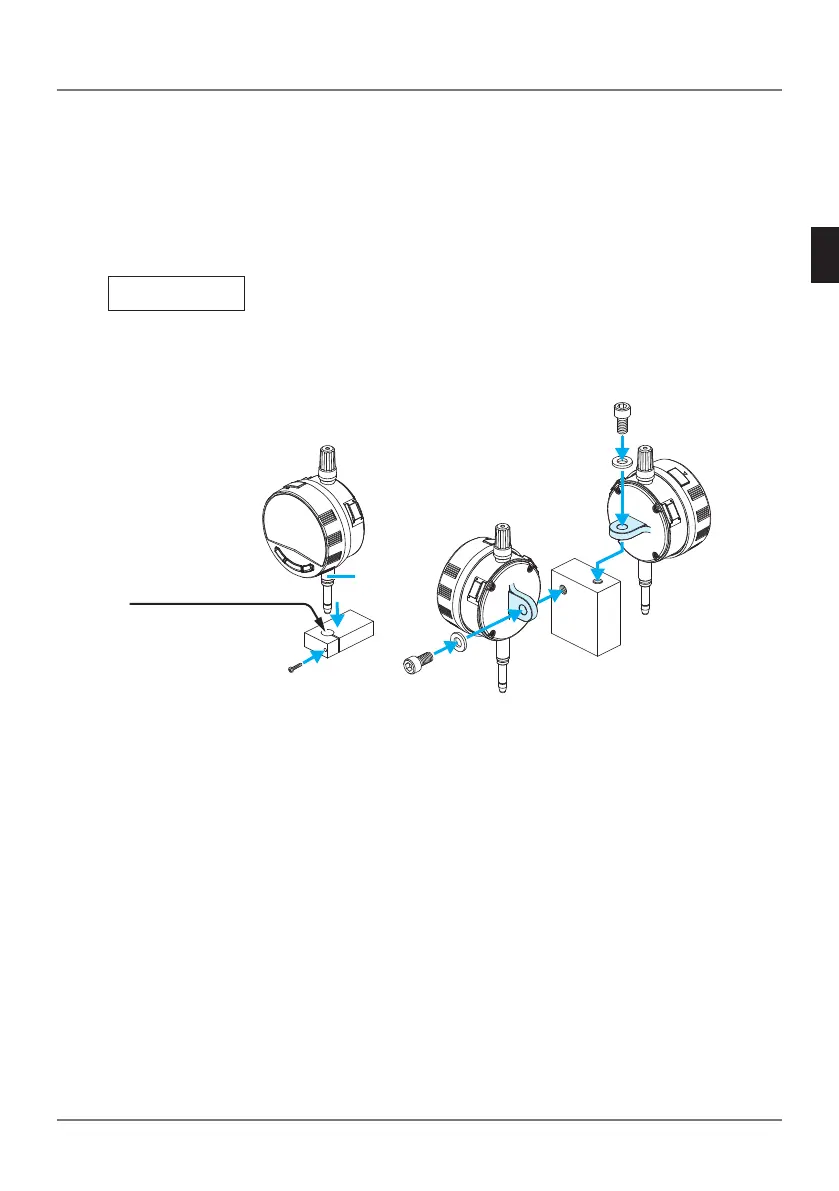

Mounting to a Stand/Jig
Install the stem to the holder of the stand when making measurement with this
product installed on a stand, etc.
NOTICE
Wheneverpossible,avoidxingthestemdirectlywithasetscrew,etc.
The plunger may not be able to move smoothly if the screw is tightened with a
tightening torque of 300 cN•m or more to secure the stem.
Stem
*ø9.52 mm (0.375 in)
ASME models
ø8
+0.02
mm
+0.005
Tips
When mounting the product to a stand or jig, use the stem or back with lug. If using the
stem, use a slotted holder with a hole that meets the following requirements.
ISO/JIS models: ø8 G7 (from +0.005 to +0.02) mm
ASME models: ø9.52 mm (0.375 in)
