5 Setting Parameters
No. 99MAH056A
(Short press) / (Long press)
5.6
Selecting the Tolerance Judgment Result Display
Method and Setting Allowable Values
The display method during tolerance judgment can be selected, and the
allowable values (upper limit value and lower limit value) can be set.
Allowable values can be set independently for each measurement system
(absolute measurement (ABS) and incremental measurement (INC)).
Tips
For the method for switching between absolute measurement (ABS)/incremental
measurement (INC), refer to
"4.1 Absolute Measurement (ABS)" on page 21 and
"4.2 Incremental Measurement (INC)" on page 25.
5.6.1 Setting Display Method
3
-2
3
33
-2
2
-1
-2
F2
F2
F3
F1
F1
F3
F1
F3
F2 F2

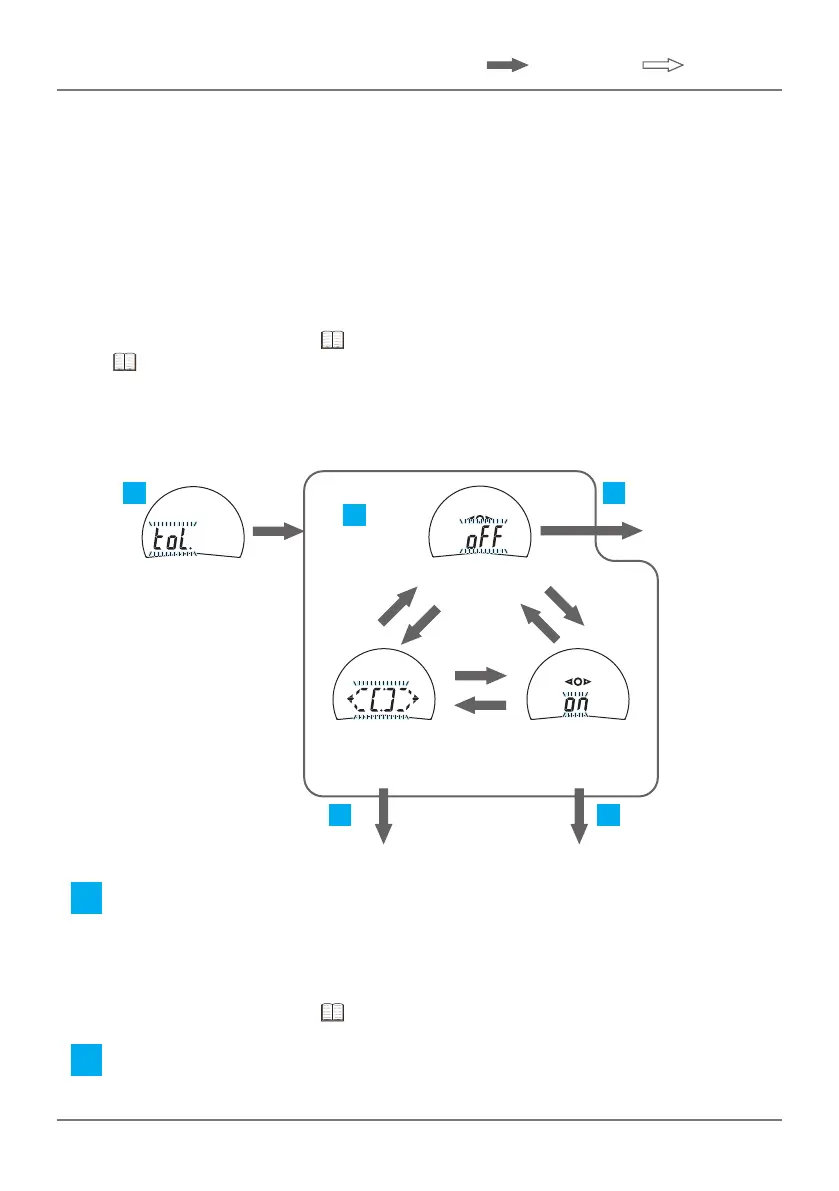

Go to the
next item
Tolerance judgment function OFF
Setting allowable values (upper limit value and lower limit value)
Tolerance judgment
function ON
Enlarged display
Tolerance judgment
function ON
Normal display
1 ConrmthatthemeasurementsystemtowhichtheToleranceJudgment
function is applied is selected.
Tips
For the method for switching between absolute measurement (ABS)/incremental
measurement (INC), refer to
"3.5 Switching Measurement Systems" on page 18.
2 Press the [F2] key.
» Tolerance Judgment function can be set.
