7 Low Measuring Force Types
No. 99MAH056A
7.1. 2 Adding/Removing the Weight
• When adding or removing the screw on top of the plunger or the weight,
make sure to insert a hex key or other tool (roughly 2 mm diameter) into the
key hole on the plunger in order to protect the internal mechanism.
• The screw on top of the plunger is used to protect the internal mechanism.
Make sure to attach this when not using a weight.
2
5
43
1
Cap
Screw
Hex key or other tool
Key hole
Weight

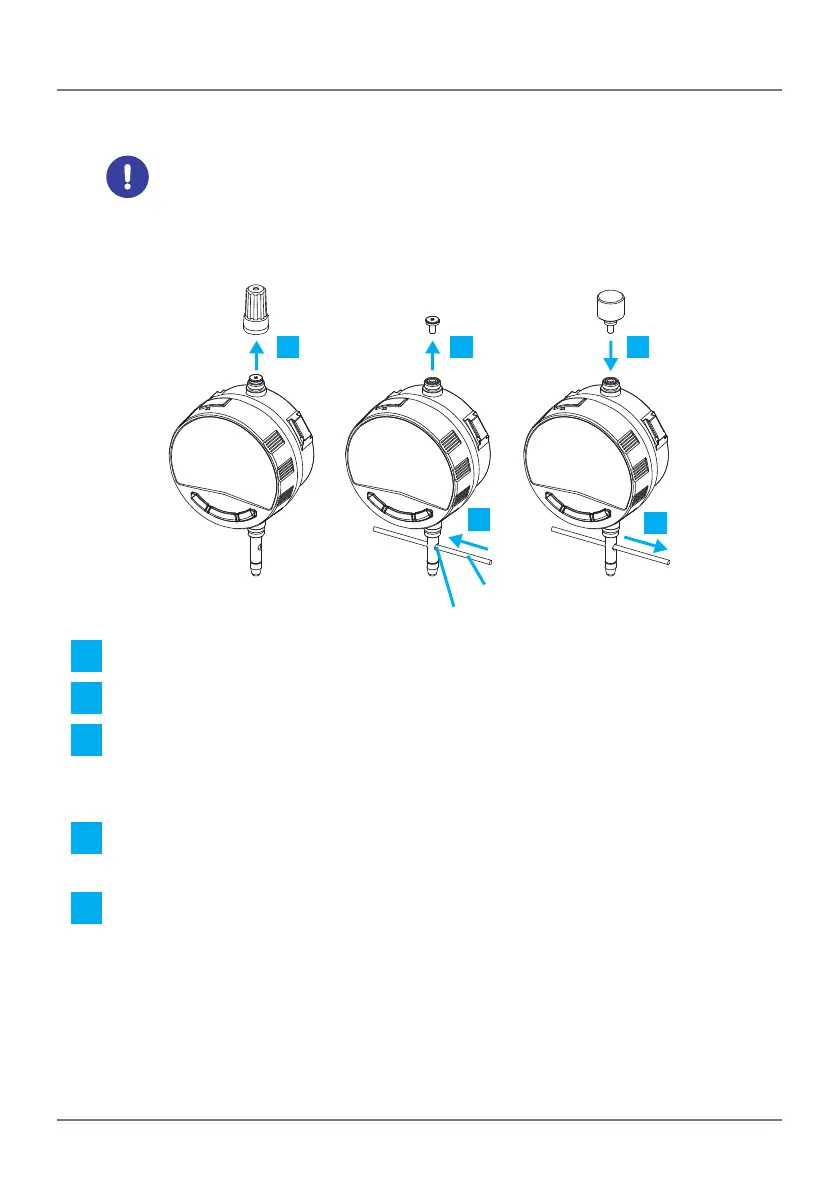

1 Rotate the cap counterclockwise to remove it from the product.
2 Insert a tool such as a hex key into the key hole in the plunger.
3 Use the hex key or other tool to hold the plunger in place and prevent
it from twisting as you turn the screw (M2.5) on top of the plunger to
remove it.
4 Keep holding the plunger in place as you attach a weight in place of the
screw.
5 Remove the hex key or other tool from the key hole.
Tips
• To replace a weight with a screw, follow the above procedure in reverse.
• The cap or lifting knob (optional) cannot be mounted when using a weight.
• The lifting lever can be used together with a weight.
