The following models (low measuring force type) use an aluminum plunger to
reduce the weight of the movable parts.
ID-C0512CNX, ID-C0512CNXB, ID-C0512CMNX, ID-C0512CMNXB,
ID-C0512CENX, ID-C0512CENXB, ID-C1012CNX, ID-C1012CNXB,
ID-C1012CMNX, ID-C1012CMNXB, ID-C1012CENX, ID-C1012CENXB
Although the surface of the plunger has been treated for abrasion resistance, any dirt
or damage on the surface of the plunger will make accurate measurements impossible.
7.1
Changing the Measuring Force

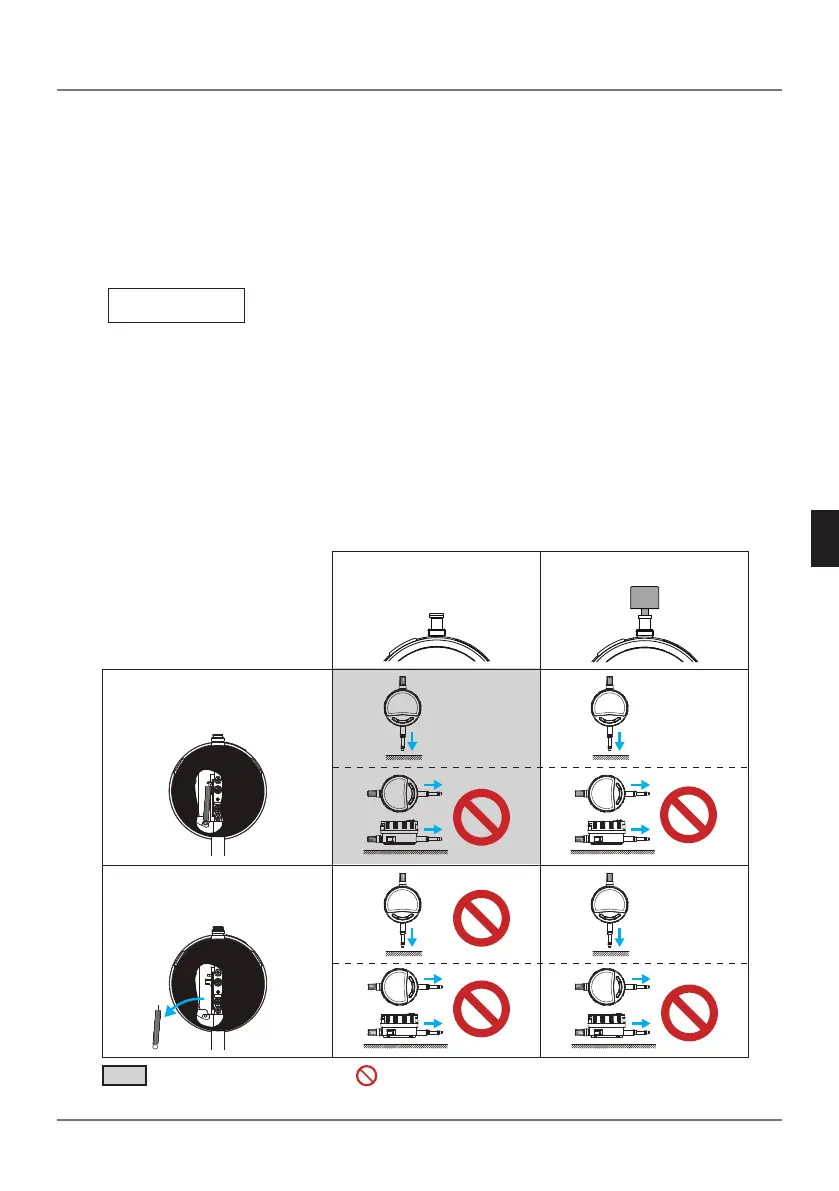

The measuring force can be changed as shown in the table below, by adding or
removing the coil spring or weight.
y ID-C0512CNX, ID-C0512CNXB, ID-C0512CMNX, ID-C0512CMNXB,
ID -C0512CENX, ID-C0512CENXB
Coil spring attached
No weight Weight attached
0.1 N
OK
≤0.6N
OK
≤0.7N
OK
≤0.4N
No coil spring
: Factory default conditions : Not a guaranteed operation posture
