33
No. 99MAH056A
4 Measurement Method
(Short press) / (Long press)

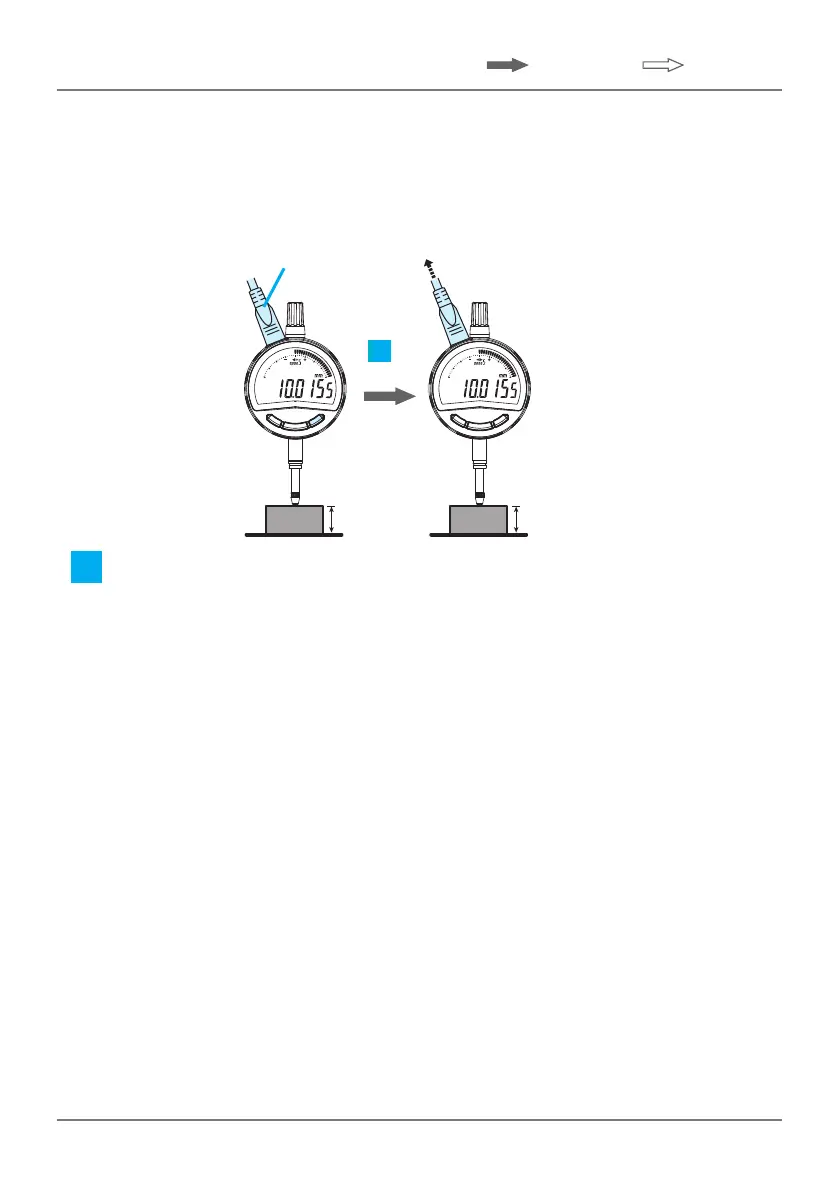

4.7. 2 External Output Operation
The displayed value is output to the connected external device.
This operation is enabled only when this product is connected to an external
device.
1
F3
Connection cable Outputs 10.0155 mm.
1 Press the [F3] key while in measurement mode.
» The displayed value is output to the connected external device.
Tips
• If inputting an output request (REQ) from the connected external device, do so only
when the plunger is stopped. If an output request (REQ) is input while the plunger is
moving, it may output an incorrect value or data output may not be possible.
• If output requests (REQ) are input over short intervals, data output may not be
possible.
• External output using the [F3] key is not possible during tolerance judgment
enlarged display. The measured value is externally output only when an output
request (REQ) from an external device is received.
To Next Page
