2 Preparations before Use
No. 99MAH056A
2.2
Mounting Options (Lifting Lever/Lifting Knob/
Release)
An option (lifting lever, lifting knob, or release) can be mounted to allow the
plunger to be raised indirectly.
• Using the product while the stop screw (supplied with the lifting lever) or lifting knob
isnotsecuredrmlymaydamageinternalcomponentsortheworkpiece.
• If not mounting a lifting lever, lifting knob, or release, always mount the original
screw on top of the plunger. Otherwise internal components or the workpiece may
be damaged.
2.2.1 Lifting Lever (Optional)
2
1
3

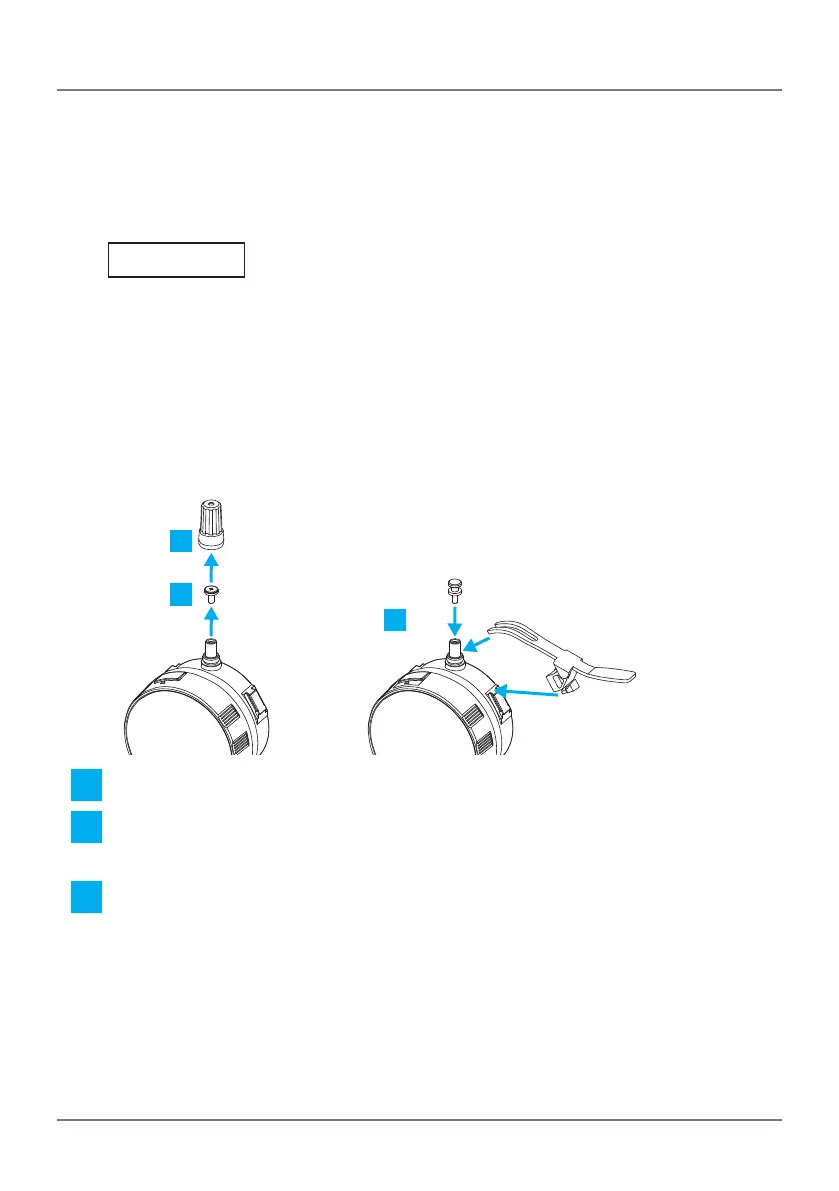

Cap
Screw
Stop screw
Lifting Lever
1 Rotate the cap counterclockwise to remove it from the product.
2 Fix the plunger, using pliers padded with a rag, etc., so that it does not
turn, and then remove the screw (M2.5) on top of the plunger.
3 Mount the stop screw and, with the lever tip caught by the stop screw,
mount the lifting lever on the lifting lever mount (dovetail).
Tips
Store the removed screw and cap to prevent loss.
