1. CONFIGURATION

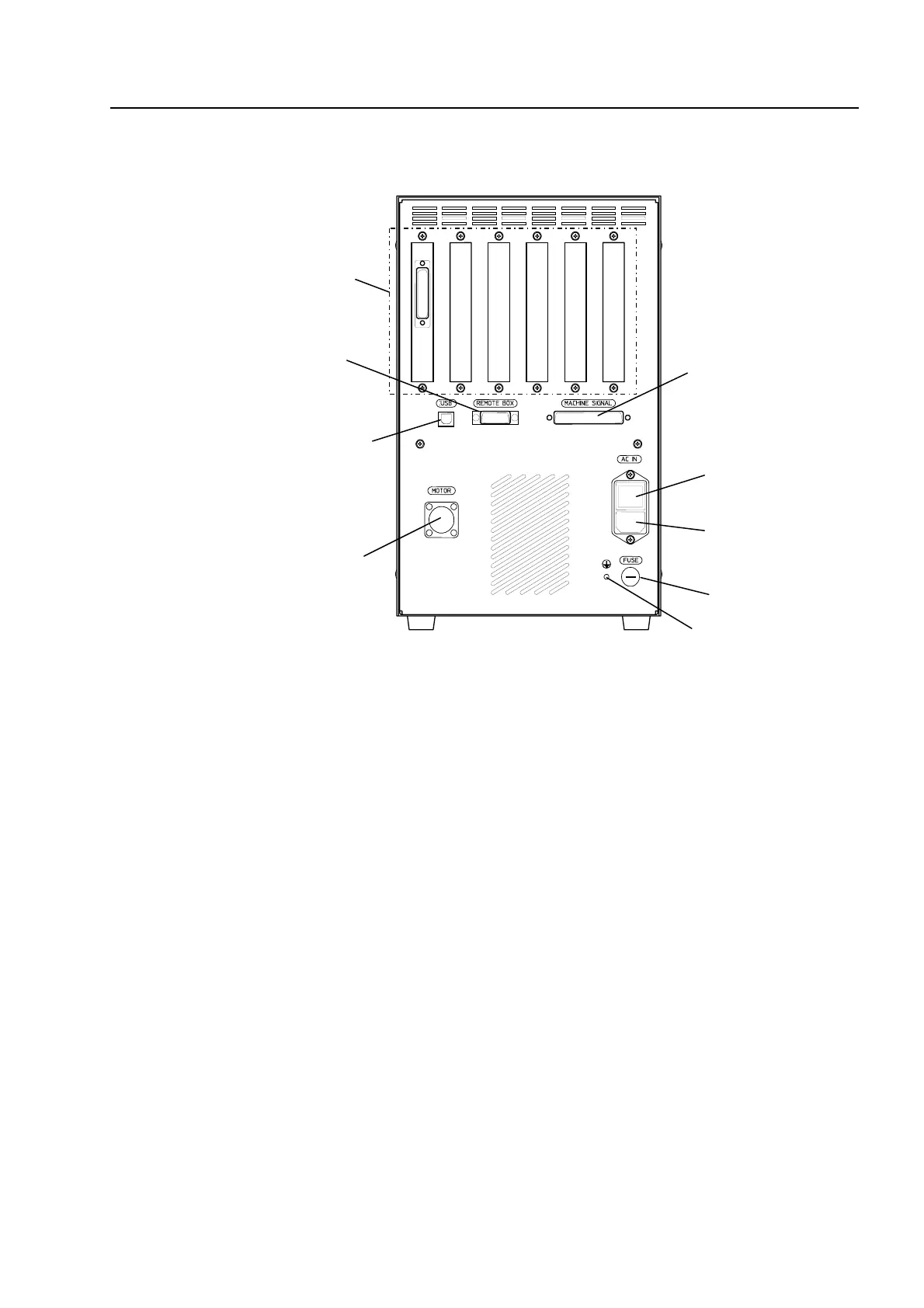

1.3.4.3 Controller rear panel
Fig. 1-10
8. Detector connector
and option connectors
1． Machine signal connector
Used for connecting the cable that controls the measuring main unit.
2． Remote box connector
Used for connecting the cable from the remote box.
3． USB communication connector
Used for connecting to a personal computer via the supplied USB
communication cable.
4． Motor connector
Used for connecting the cable that supplies drive power to the motors in the
measuring main unit.
5． Fuse holder
Used to hold a fuse.
6． Power supply connector
Used for connecting the supplied power cord.
2. Remote box connector
1. Machine signal
connector
3. USB communication
7. Main power switch
6. Power supply
5. Fuse holder
4. Motor connector
9. Grounding terminal
connector
No. 99MBB187A
1-13
