56BSetup 5BChapter Two: Installation
26
Setup
Dimensions
Note
All dimensions are listed in inches with millimeters referenced in parentheses.
Tolerances are ± .03 [.76 mm] unless specified otherwise.

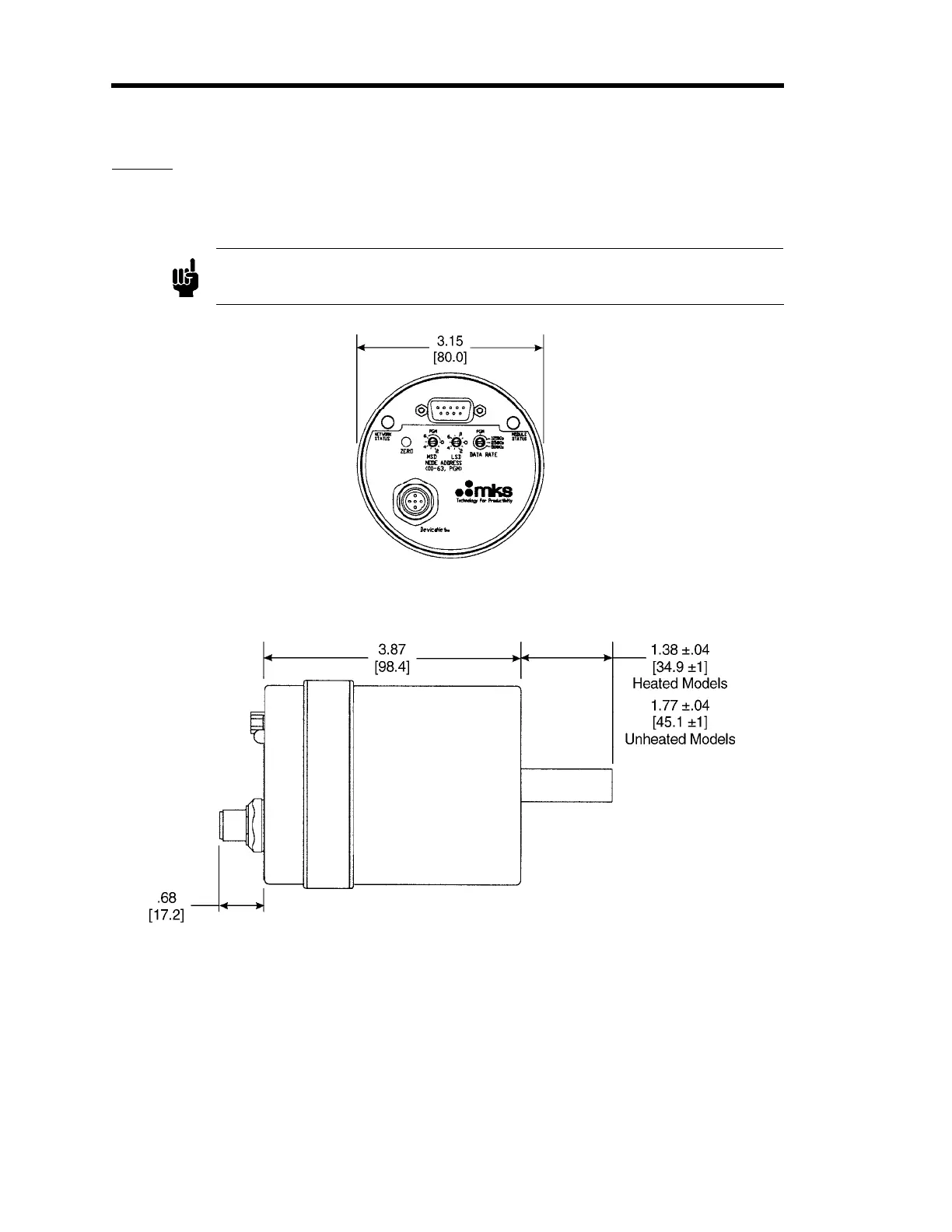

Figure 2: Top View Dimensions of the DMA Transducer
Figure 3: Side View Dimensions of the DMA Transducer
