Top Panel Components

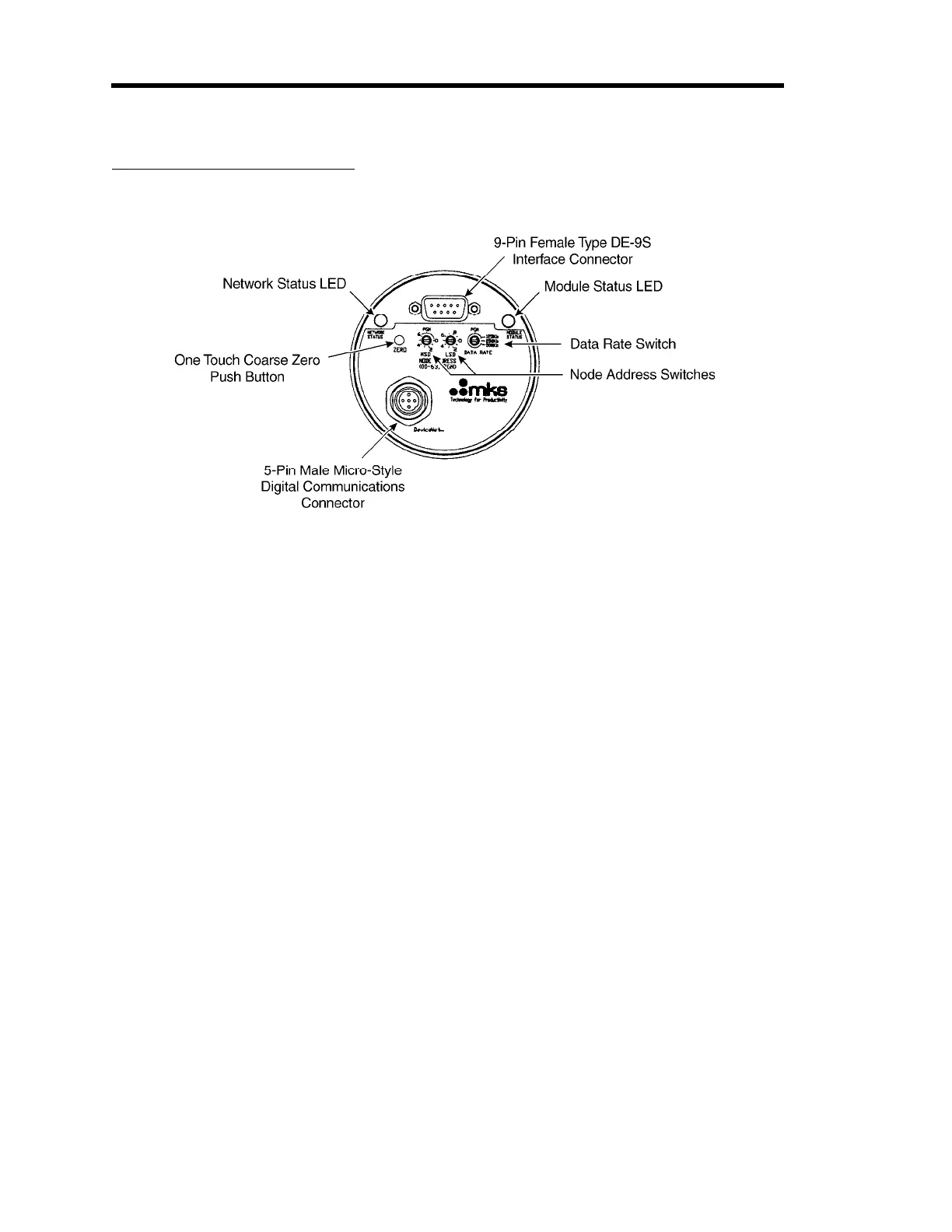

Figure 5 shows the top panel of your DMA transducer.
Figure 5: Top Panel Components
Digital Communications Connector
The 5-pin male m
icro-style connector accepts the power input from the DeviceNet network and
provides the interface for digital communications. This connector meets the requirements in the
ODVA “DeviceNet Specification,” Volume I [1]. Refer to Table 9, page 28, for the connector
pinout.
OneTouch Coarse Zero Push Button
This push button provides m
anual zeroing capability
for the transducer’s pressure reading. The
push button affects both the analog and digital zeros. Refer to Coarse Zero Adjustments, page 32,
for more inform
ation.
Analog Interface Connector
The 9-pin fem
ale Ty
pe DE-9S interface connector provides the pressure output signal for direct
measurement from the DMA transducer. Refer to Table 10, page 29, for the connector pinout.
DeviceNet Status LEDs
The DMA transducer has two standard bi-color (green/red) DeviceNet status LEDs, located on
top of the unit (Figure 5, page 38). The power-up sequence of these LEDs conforms to the
requirem
ents in the ODVA “DeviceNet Specification,” Volum
e I [1]. Refer to Power-Up, page
29, for more information.
Module Status LED
The Module Status LED indicates the status of the individual device, as defined in Table 14. If no
problems are detected, the Module Status LED illum
inates a solid green. The LED flashes green
