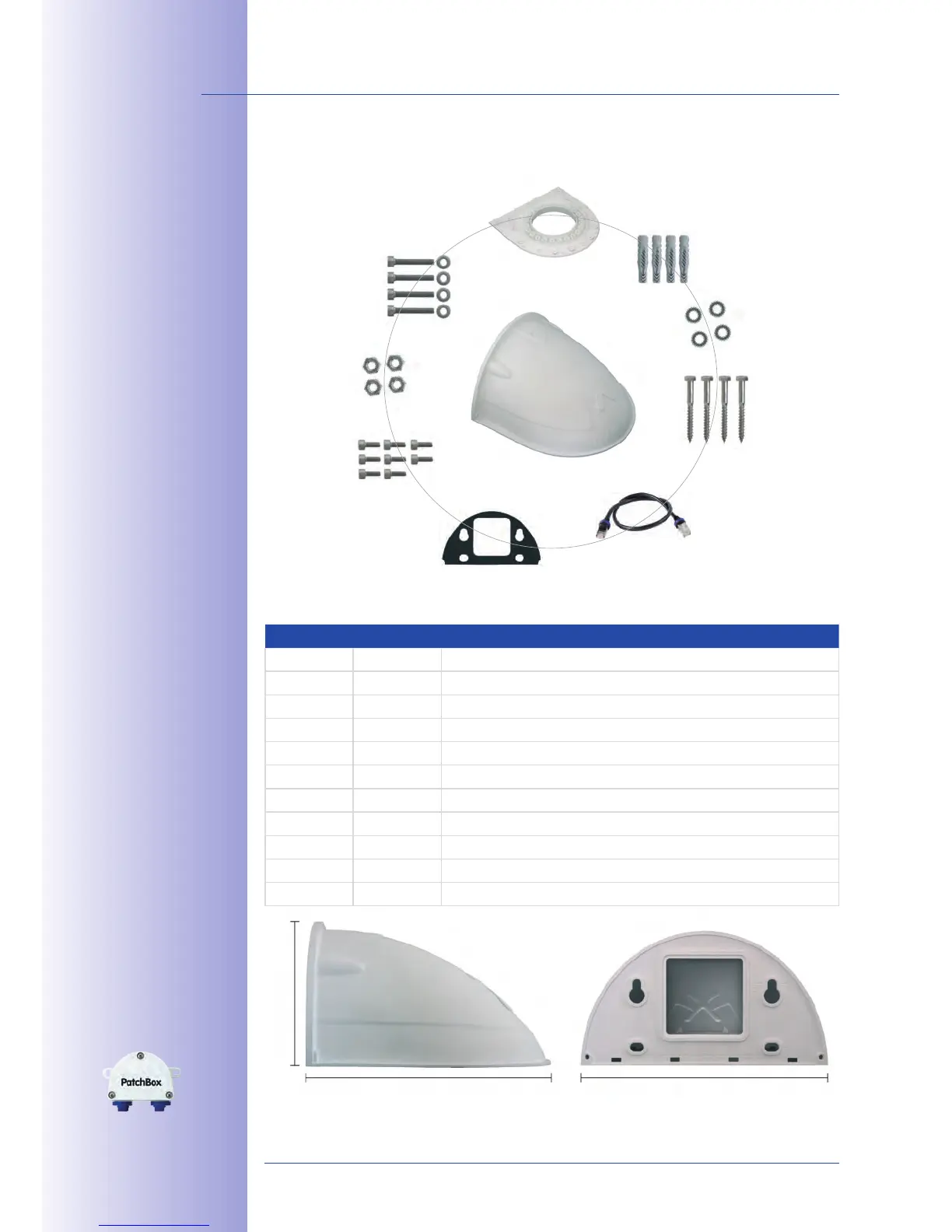

Mobotix D14D - Delivered Parts of the Outdoor Wall Mount (Optional Accessory)

38/126
D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com
1.6.7
Item Count Part Name
3.1
1 Outdoor wall mount
3.2 1 Bottom plate
3.3 4 Dowels 10 mm
3.4 4 Stainless steel washers Ø 9 mm
3.5 4 Stainless steel wood screws with hex head 8x70 mm
3.6 1 Ethernet cable 1 m
3.7 1 Wall sealing
3.8 8
Stainless steel Allen screws M4x10 mm
3.9 4 Stainless steel hex nuts M4
3.10 4 Stainless steel Allen screws M4x25 mm
3.11 4
Stainless steel washers Ø 4.3 mm
Make sure to check the
delivered parts
8 Allen screws,

4 dowels, 10 mm




4 wood screws, 8x70 mm



4 Allen screws, M4x25 mm







When using the wall
mount, please exchange
the original Ethernet
cable of the D14D
against the 1 m (3 ft 3 in)
Ethernet cable


The 90 x 90 mm space
covers in-wall and on-wall
sockets, as well as an
Outdoor PatchBox that
is attached to the wall
(MX-OPT-Patch1-EXT)
