Mobotix D14D - Power Supply When Connected Directly to a Computer; Power Supply with Power-Over-Ethernet Products

74/126
D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com
2.7.4

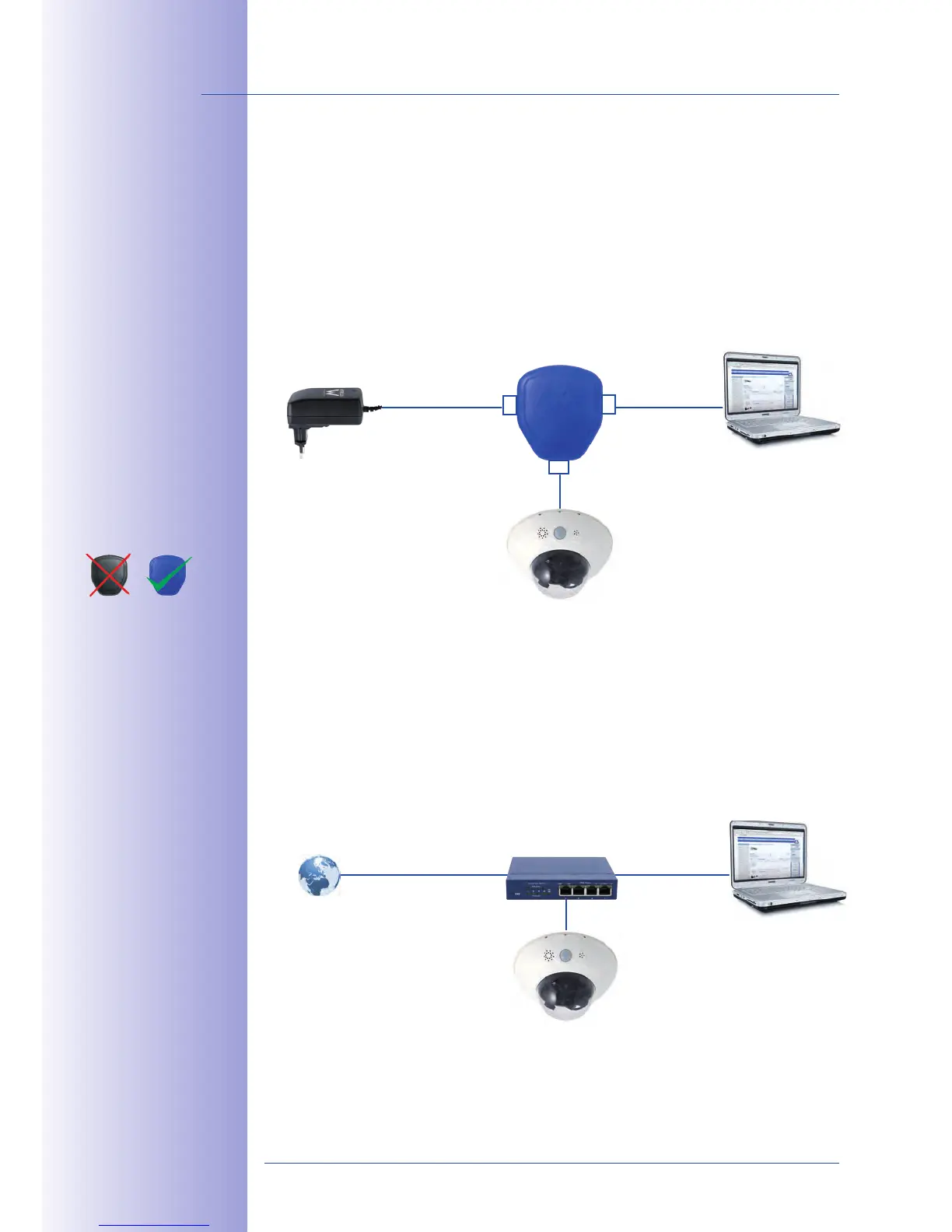

Connect the factory pre-installed cable of the camera to the 1. Camera connector of
the PoE adapter.
Connect the
2. PC/Power connector of the PoE adapter to the Ethernet port of the
computer.
Plug the RJ45 connector of the power supply unit into the
3. LAN/Power connector
of the PoE adapter.
2.7.5
Connect the factory pre-installed cable of the camera to the Ethernet connector of the
PoE switch/router. The switch/router must support the PoE standards IEEE 802.3af or IEEE
802.3at.
For the D14D, you
should use the new blue
MX-NPA-PoE-Set –
previous MOBOTIX
network power
accessories such as the
NPA Set, Power Box,
and Power Rack
(MX-NPA-Set,
MX-NPR-4 and
MX-NPR8/20) are
not suitable for use
with the D14D
The IP addresses in
the diagram are shown
only as an example
PoE Adapter
(MX-NPA-PoE)

PC

Camera

LAN/Power
PC/Power
Camera
RJ45
RJ45
RJ45
PC

Camera

PoE/PoE+

LAN/www
The IP addresses in
the diagram are shown
only as an example
