5. that you have properly fastened the three M4x25 Allen screws.
2.4.5
Plug the 1. camera connection cables into the appropriate wall outlets or adapters.
Insert the
2. into the back of the wall mount
as shown in the figure.
Push the front of the bottom plate upwards.
3.
4. Mount the bottom plate to the wall mount and make
sure the screws are all properly fastened.

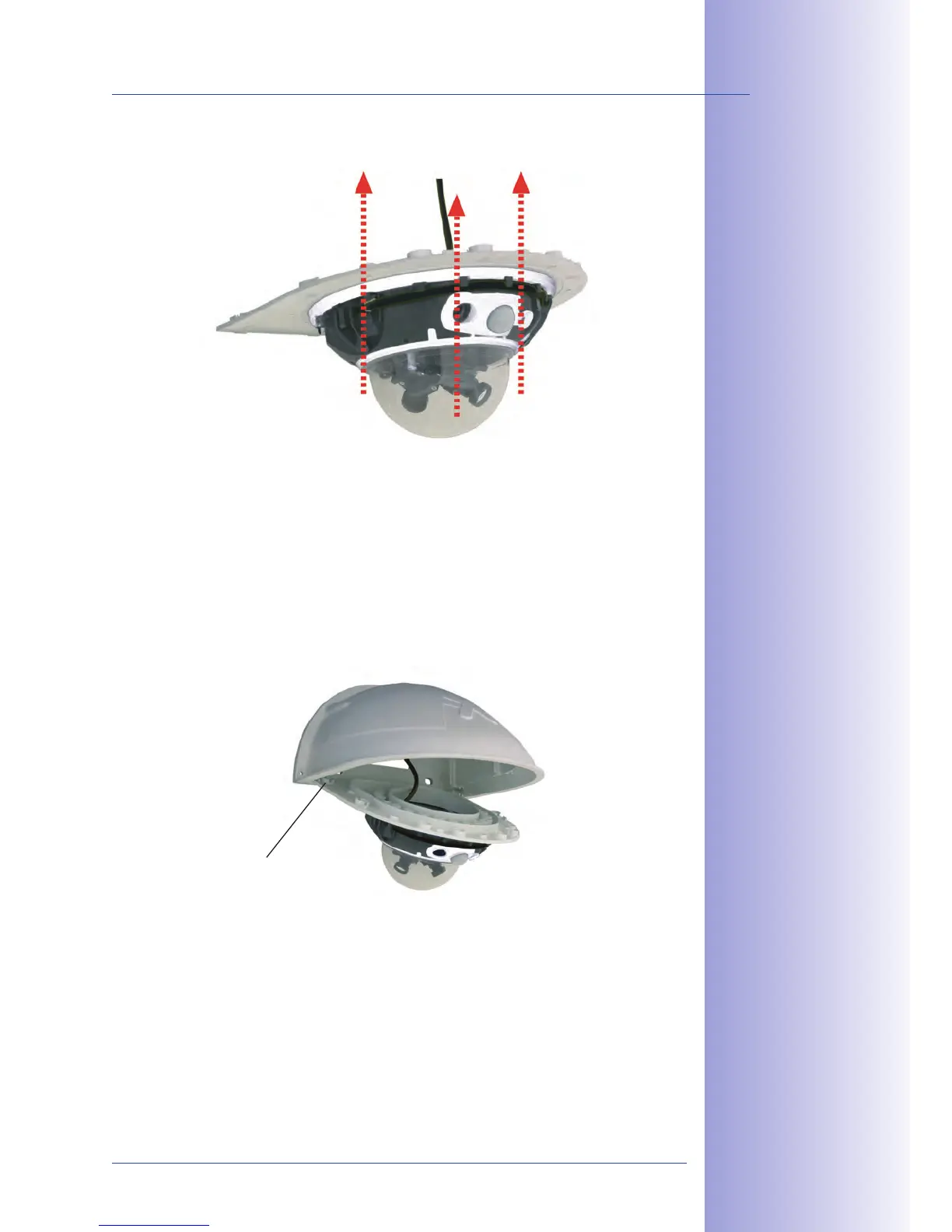

Mounting the camera
on the bottom plate
Pushing the bottom
plate into the Outdoor
Wall Mount
