D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com
MOUNTING2
2.1
2.1.1

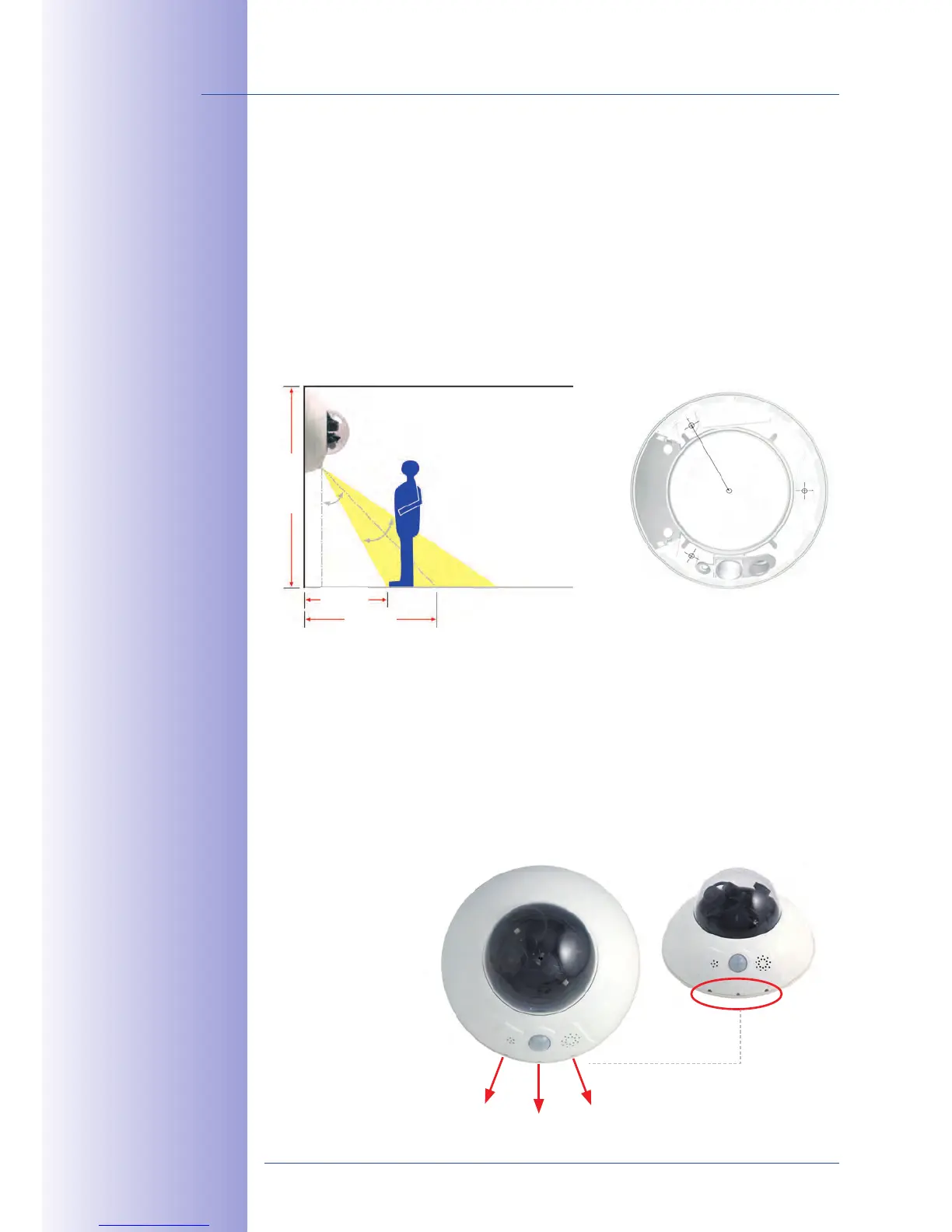

In order to mount the MOBOTIX D14D to a ceiling or wall, you need to drill the holes for
the fixtures. Use the supplied drilling template (fold-out at the end of this manual) to mark
the position for drilling the dowel holes and the holes through which the cables will be
led later on.



Position the camera housing over the cable exit.
•
Connect the camera patch cable securely to the Ethernet cable, for example, using •
the Mobotix Outdoor PatchBox.
Use the proper screws to mount the camera housing to the wall or ceiling.
•
Preventing Condensation
When installing the camera, make sure that the PIR sensor is pointing downwards to
allow condensation to flow freely through the openings in the outer shell (see diagram).
120°
120°
120°
R=75 mm
45°
30°
2.80 m
1.50 m
2.90 m
The folded drilling
templates can be found
at the end of the manual
