D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com
2.4
2.4.1

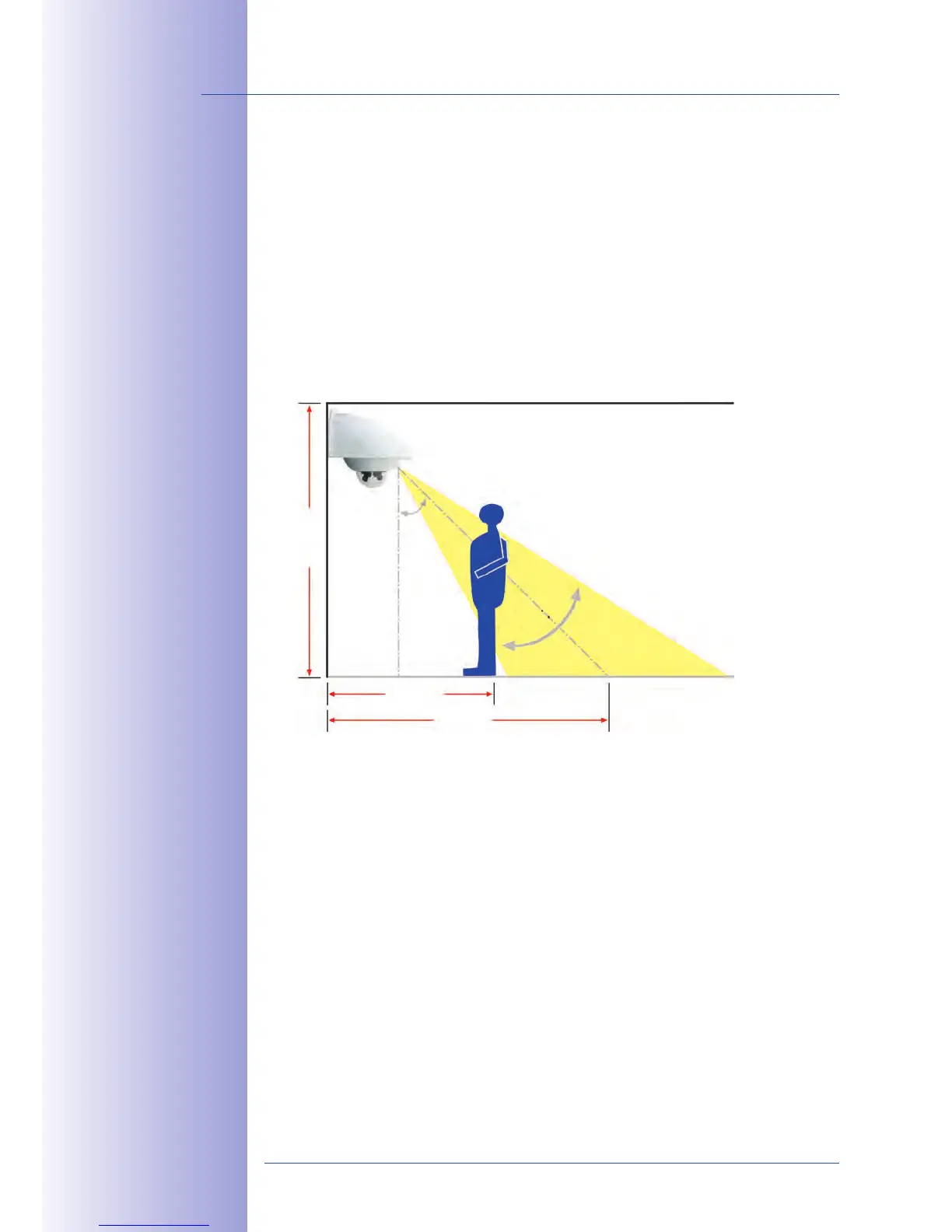

When mounting the camera, make sure that the PIR sensor points into the direction where
it is most useful. The PIR sensor has a
 and a detection
.
The available positions are identified by means of the mounting height of the MOBOTIX
D14D and the alignment of the bottom plate, which can be completed in 15° increments.
Hint: It may be useful to mark the ideal position of the PIR sensor on the bottom plate
with a pencil.
1.50 m
2.90 m
2.80 m
30°
45°
PIR data:
Range of approximately
10 m, detection angle of
approximately +/-15 degrees
