Dansensor A/S COPYRIGHT © P/N 330654-E 01/2018
Lippke 4000/4500 EN User Guide 23
Adjusting the restraining height (ASTM)
The ASTM restraining fixture can be adjusted to various package restraining heights from 6.35 to 76.2
mm (¼” to 3”) in steps of 6.35 mm (¼”).

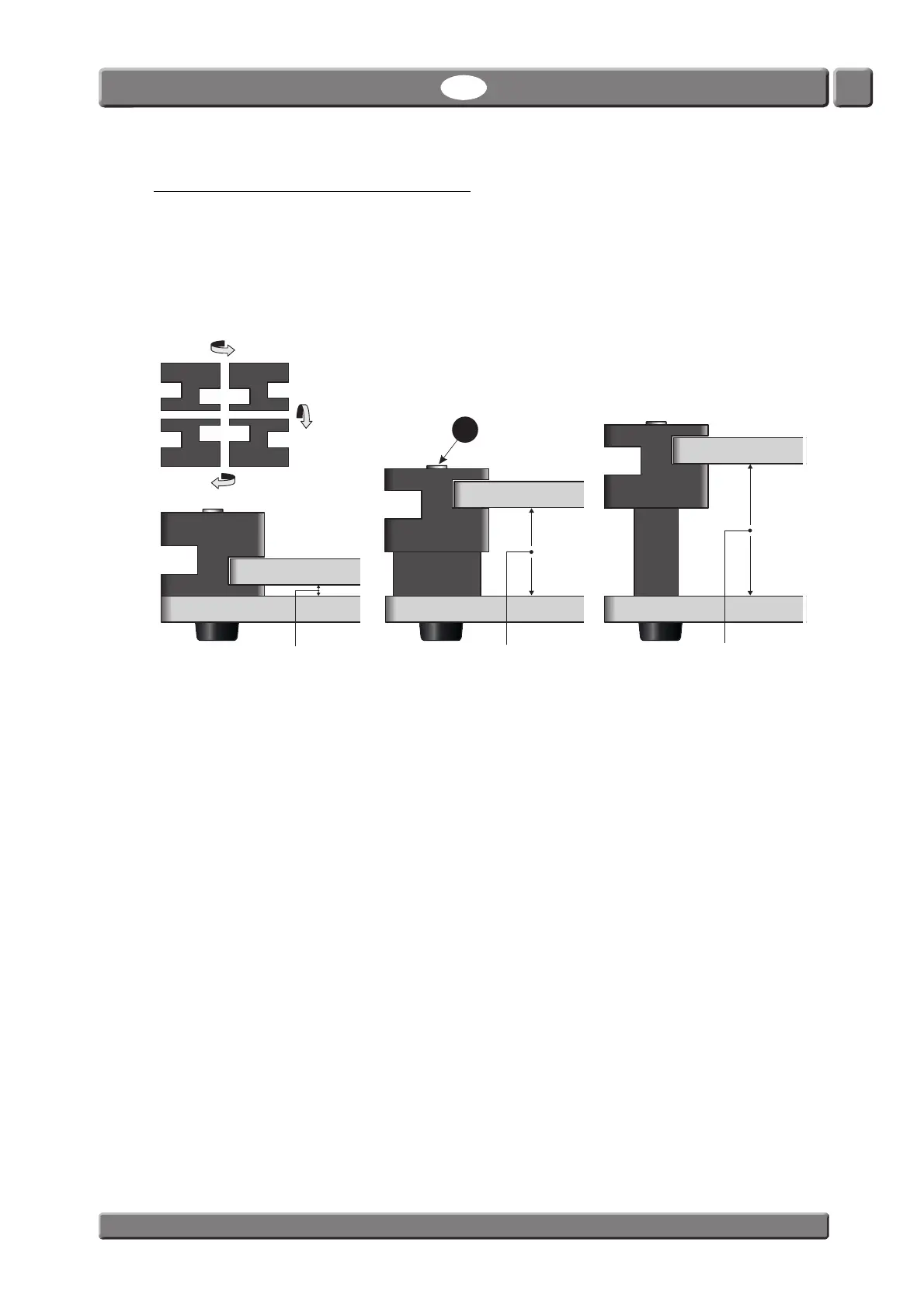

The 12 different height settings are achieved by combining the side bars (A) and (B) as illustrated below.
For each of the 3 combinations of the bar (B) (none, lying or standing) there is a matching set of screws
.
6.35 - 25.4 mm ( " - 1")¼ 31.75 - 50.8 mm (1 " - 2")¼ 57.15 - 76.2 mm (2 " - 3")¼
(Min.)
(Max.)
A
A
A
B
B
1
A
A
A
1
11
2
2
2
3
3
3
4
4
4
A
1
2
3
4
