P/N 330654-E 01/2018 COPYRIGHT © Dansensor A/S
14 User Guide EN Lippke 4000/4500

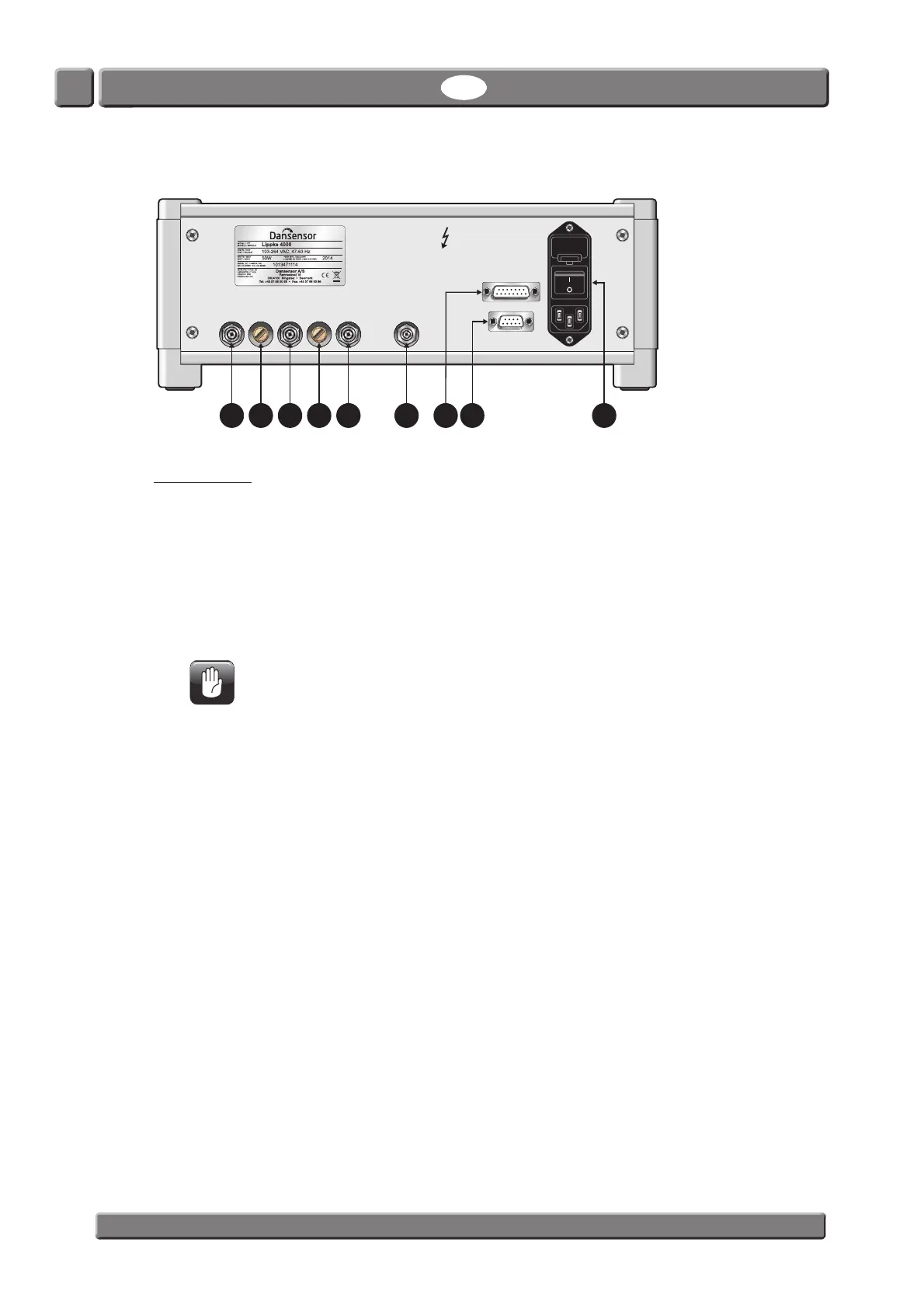

Device back
“Clamp” connector
The “Clamp” output is mainly used for automatic control of the lower clamp bar of the optional
PPC 300 II unit and for controlling the valves on the MultiCheck test head.
Ventilation outlet for “Clamp”
The outlet is fitted with a noise filter.
“Air Supply” connector
Connector for the device’s compressed air supply.
CAUTION! The supply pressure must not exceed the max. pressure indicated on the
device.
Ventilation outlet for “Feed”
The outlet is fitted with a noise filter.
“Feed” connector
Connector for the measurement accessory air supply outlet.
“Sense” connector
Pressure measurement inlet connector.
”Accessory Port”
For connection of a communication cable from PacCheck 3XX (when using the MultiCheck system)
of for connection of an external device (ex. a foot switch) for start and stop of the device.
“PC/Printer”
RS-232 port for connection to a printer or a computer.
Power input module
The power input module contains the connector for the power cord, the fuse holder and the power
ON/OFF switch.
Clamp Feed Sense
Accessory Port
PC/Printer
Main
Fuse 1AT
Caution!
Disconnect mains
before opening!
Air Supply
max. 4 bar
910111213 14 1516 17
