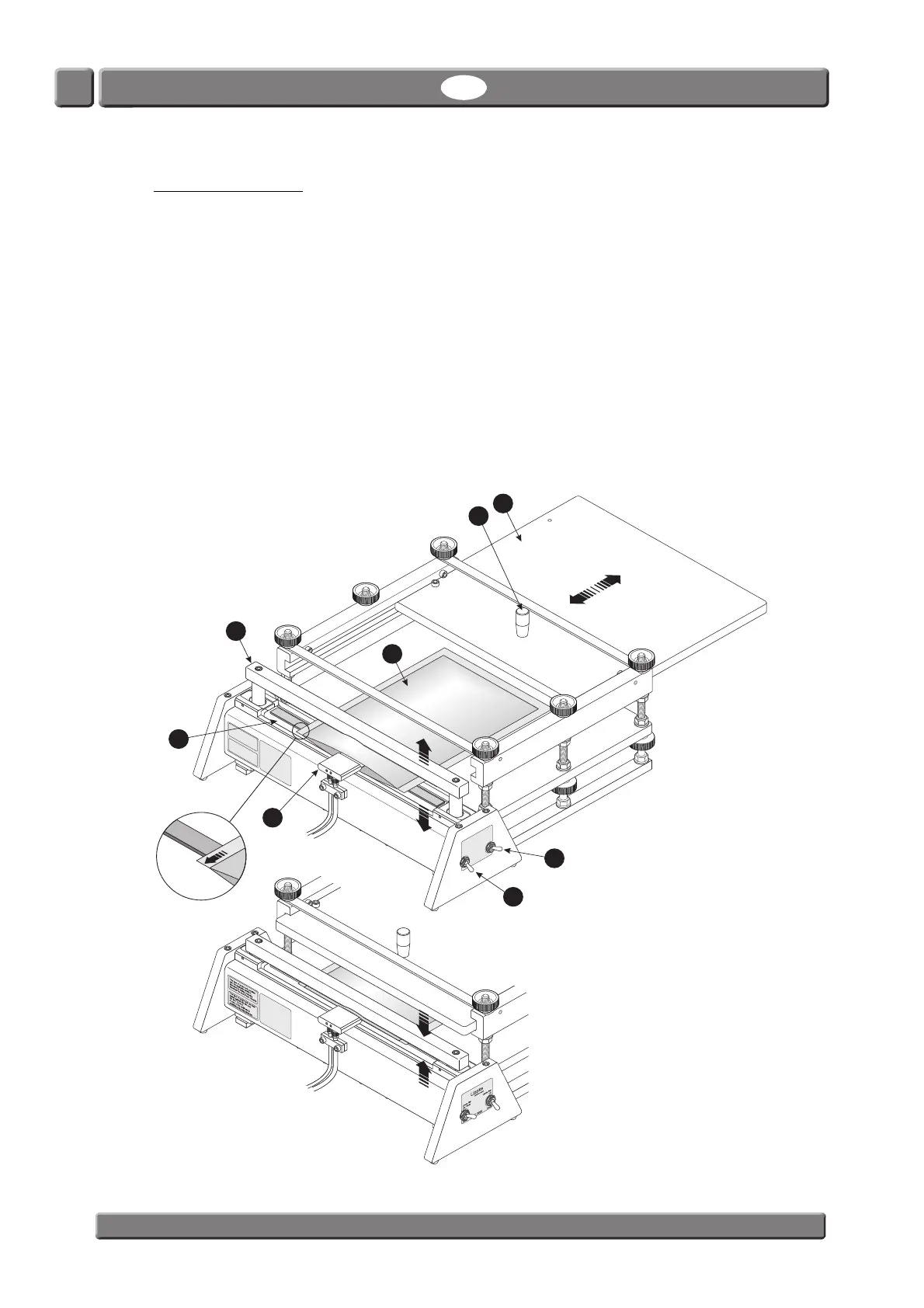

How does it work?
1. If necessary adjust the restraining height - see "Adjusting the restraining height (PPC 300 II)" on page
27 for details.
2. If the lower bar
 is controlled by the Lippke 4000/4500 it will already be lowered, otherwise use
the switch
 to move it down, then use the switch  to move the upper bar  upwards.
3. Use knob
 to slide the upper plate  away to open the restraining device.
4. Place the pouch
 around the air block  as shown. Make sure that the whole front edge of the
pouch extends past the front edge of the rubber band on the lower bar
 (see detail).
5. Close the restraining device.
6. Use switch
 to move the upper bar  down.
7. If the lower bar
 is controlled by the Lippke 4000/4500, it will automatically be moved upwards to
close the clamp around the pouch
 and air block when you start the test. Otherwise use the
switch
 to move it up.
8. Perform the test.
This type of equipment complies
with the applicable ANSI/UL
Standard for Safety, including
Electrical Fire and Shock Hazards
This type of equipment has been
tested against EN 983 and
EN ISO 12100-2.
