Mocon Dansensor Lippke 4500 - Handheld Needles

P/N 330654-E 01/2018 COPYRIGHT © Dansensor A/S
32 User Guide EN Lippke 4000/4500

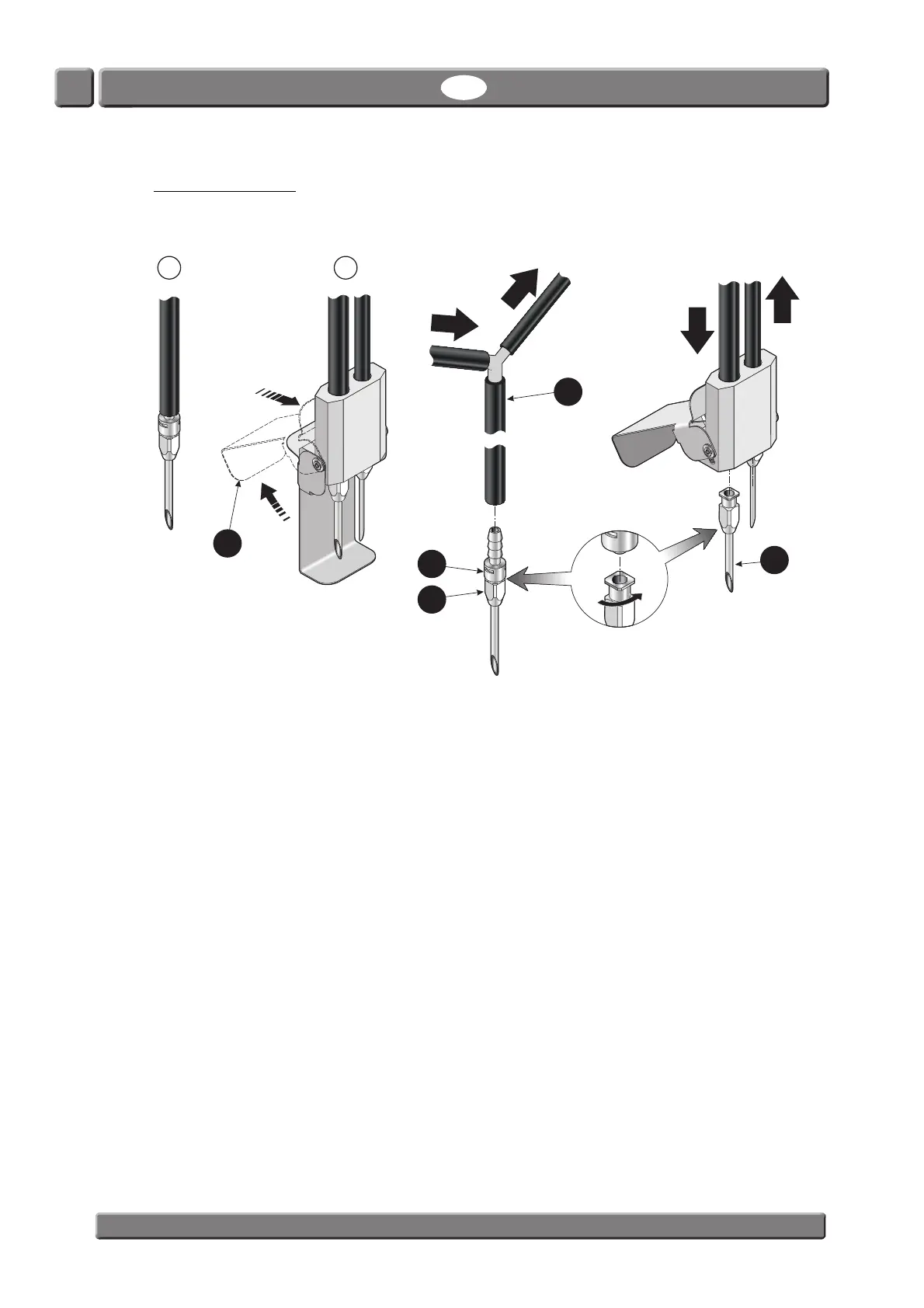

Handheld needles
The handheld needles can be used independently of any other accessory and are connected directly to
the Lippke 4000/4500 by means of hoses.
The handheld needles come as a “Mono” needle (E) or a “Twin” needle (F) with a security cover
.
To expose the needles of the “Twin” needle (F) simply press the backside of the cover upwards.
The handheld needles are used for the same applications as the corresponding test head needles as
described on page 31.
The mono needle hose
 splits into a hose for air supply (Feed) and a hose for pressure measurement
(Sense).
A needle
 is assembled with a hose connector  by pushing the needle into the connector while
turning it app. 1/3 of a round.
1
2
3
4
FE
3
Sense
Sense
Feed
Feed
