Adjusting the restraining height (PPC 300 II)

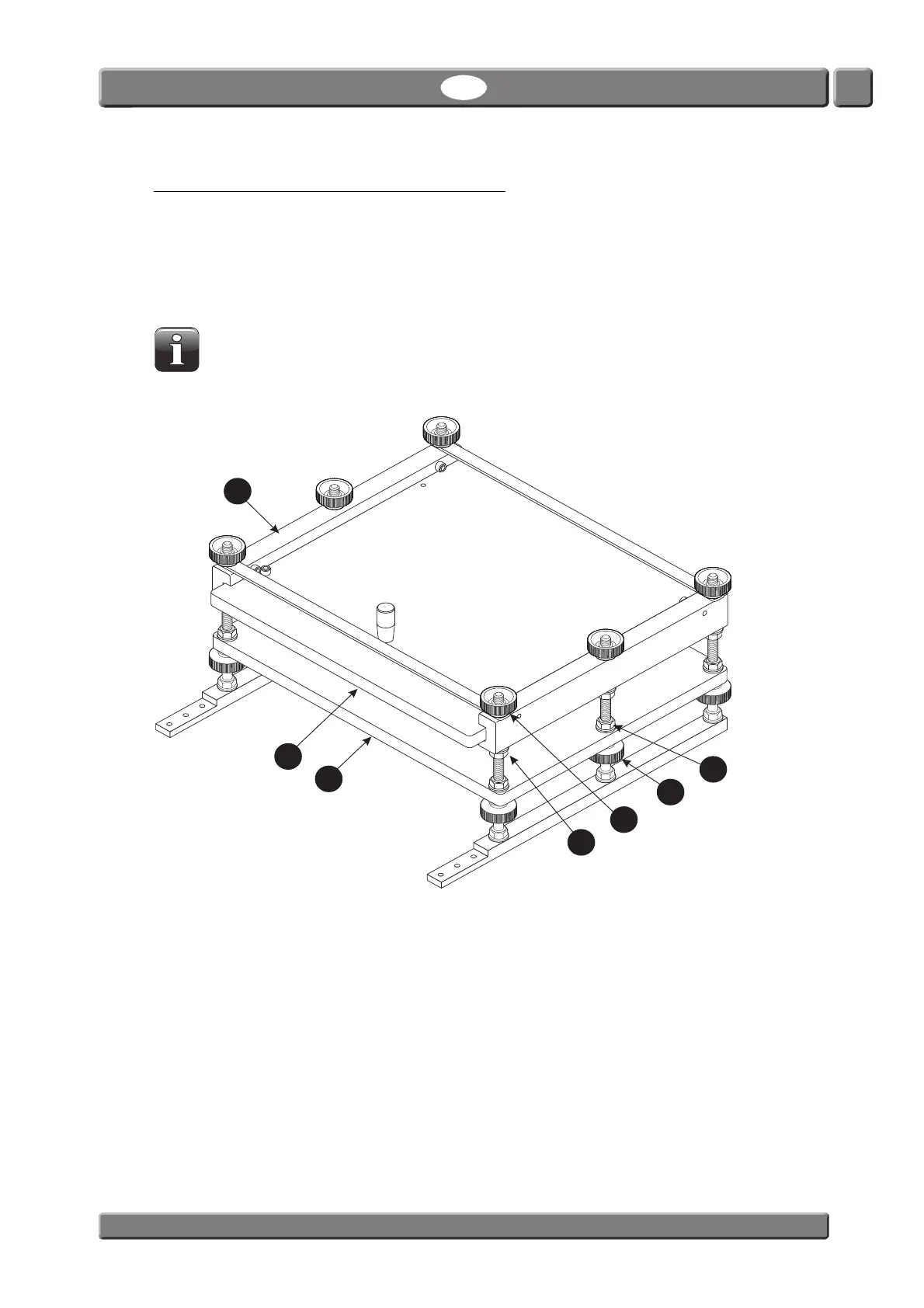

The package restraining fixture for the PPC 300 II can be adjusted to various package restraining heights.
The restraining height is achieved by adjusting the distance between the two plates
 and .
Use the nuts
 and finger nuts  to adjust the position of the lower plate , then use the nuts  and
finger nuts
 to adjust and lock the position of the side bars  and thereby the position of the upper
plate
.
NOTE! Make sure to adjust the side bars
 to the same height so that the upper plate 
can move freely.
1
2
3
6
4
5
6
7
