Appliances
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT 4•103
When one of the two manual modes is selected:
1. AC = The refrigerator is operating on AC electric.
2. LP = The refrigerator is operating on LP-Gas.
If the LP-Gas does not ignite within 30 seconds the controls either change
to a different energy source or the gas safety valve closes and F is displayed. If
the gas does not ignite after several attempts consult your dealer or authorized
Norcold service center.
When the AUTO mode is selected the refrigerator automatically selects the
most efficient energy source that is available for operation. If a more efficient
energy source becomes available the refrigerator controls change from the current
energy source to the more efficient energy source. The controls select the
energy source in this sequence.
1. When 120 Volts AC is available to the refrigerator “AU AC” flashes in the
center display. This means that the refrigerator is operating on AC electric. After
ten seconds the “AU AC” goes off and only a power indicator remains.
2. If 120 Volts AC is not available to the refrigerator “AU LP” flashes in the
center display. This means that the refrigerator is operating on LP-Gas.
3. After the refrigerator is operating, press the TEMP SET button and adjust
to the desired temperature.
• ON/OFF Button - Press this button to turn the
refrigerator ON. Press and hold this button
until the lights are no longer lit to turn the
refrigerator OFF.
• LED Display - This screen is used for fault code
display.
• MODE Button - Press and hold this button to
cycle the refrigerator through the different
modes available: AUTO, AC and LP modes.
Release the button when the desired mode is
displayed.
• TEMP SET Button - Press and hold the button to select the desired
temperature setting. Five settings are available, from COLD to
COLDEST.
This mode will lock the refrigerator into either LP-Gas or electric AC operation.
Press and hold the MODE button until LP or AC is displayed. Release when
the desired function is lit. The Alarm will sound and a code will be displayed
if the function selected is interrupted or a failure occurs. Note the code and
turn the refrigerator off to silence the alarm. Refer to the manufacturer’s manual
for a list of codes and their meanings.

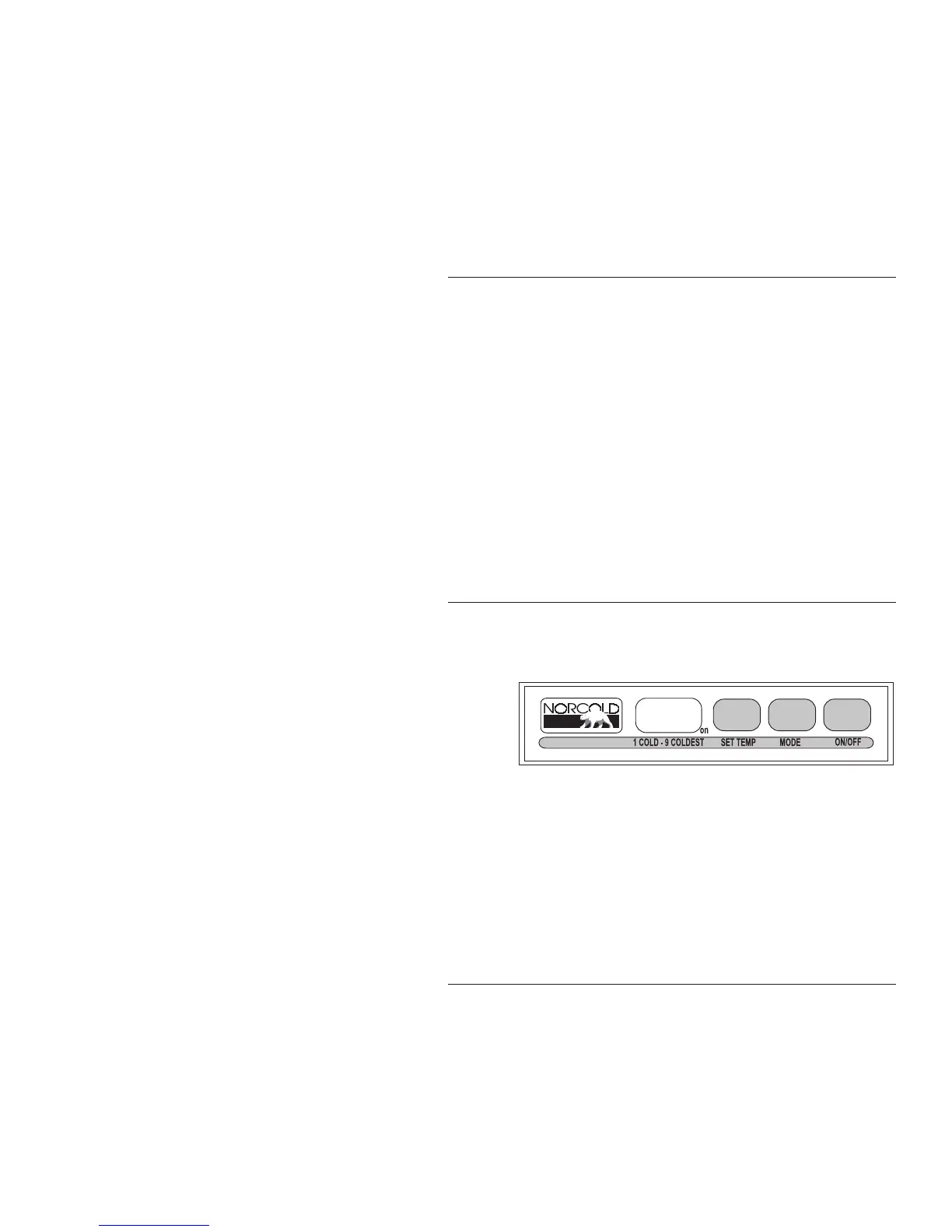

Control Panel
- 1200 Series (Optional)
The Refrigerator Control Panel requires 12 Volt DC to operate.
Automatic Mode
Operation
- 800 Series
Manual Mode
Operation
- 800 Series
Manual Mode
Operation
- 1200 Series
OM030864.eps
