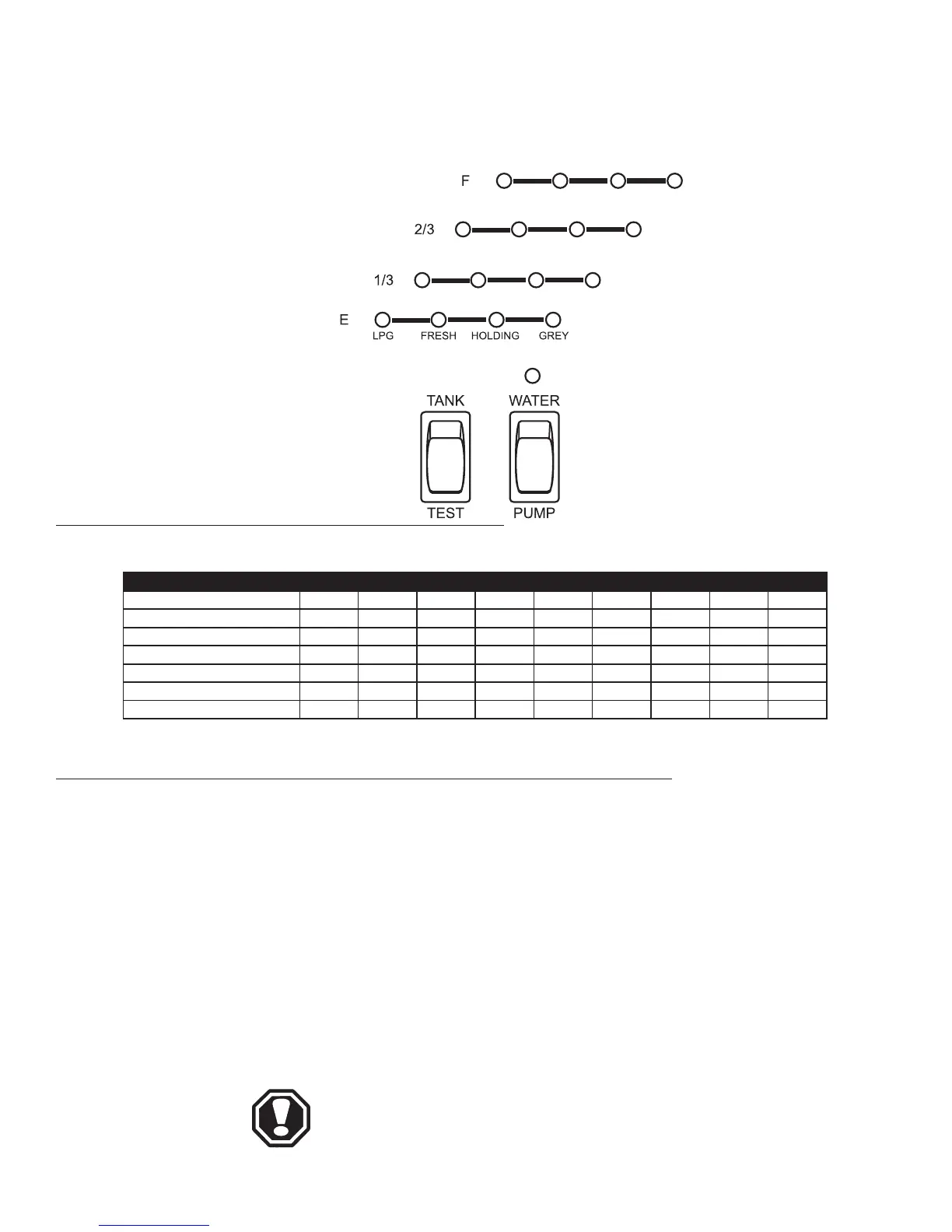

Tank Measurement - To measure level of a tank simply push button on display
panel located in hall area, corresponding to tank you wish to measure. Lights on
panel will turn on in sequence indicating level of tank.
If you smell gas (a rotten egg or sulfur smell) at any time, perform the follow-
ing steps immediately:
• Shut off gas appliances.
• Manually turn off the main gas supply at the tank.
• Do not attempt to operate any electric switch as this can produce a spark
and ignite the gas.
• Open windows and doors.
• Evacuate the motorhome. Stay clear of the immediate surrounding area.
• Keep open flames, spark producing devices and smoking material out of
the area.
• Contact a qualified service technician to find the source and repair the
gas leak.
WARNING: A fire or explosion from ignited gas or gas fumes can
seriously injure you or cause death.
CHECKLIST -
LP-GAS
EMERGENCY
PROCEDURES
MONITOR PANEL
- Measurement
MODELS 34PBD 36PBD 38PBD 38PBDD 38PBT 40PBD 40PBDD 40PWD 40PBT
Water Heater 10 gal. 10 gal. 10 gal. 10 gal. 10 gal. 10 gal. 10 gal. 10 gal. 10 gal.
Grey Tank 60 gal. 60 gal. 60 gal. 60 gal. 60 gal. 60 gal. 60 gal. 60 gal. 60 gal.
Black Tank 39 gal. 39 gal. 39 gal. 39 gal. 39 gal. 39 gal. 39 gal. 39 gal. 39 gal.
Fresh Tank 100 gal. 100 gal. 100 gal. 100 gal. 100 gal. 100 gal. 100 gal. 100 gal. 100 gal.
Fuel Tank 100 gal. 100 gal. 100 gal. 100 gal. 100 gal. 100 gal. 100 gal. 100 gal. 100 gal.
LP Tank* 38 gal. 38 gal. 38 gal. 38 gal. 38 gal. 38 gal. 38 gal. 38 gal. 38 gal.
MEASUREMENTS
This chart reflects product specifications available at the time of printing. Any floor plans introduced thereafter may not be
reflected in the chart. All other information contained throughout the manual will still apply.
OM040436.eps
Tank Capacity
*Actual filled LP-Gas Tank Capacities in 80% of listing due to safety shut-off required on tank.
