Monaco 2002 Diplomat - Circuit Breakers

Electrical Systems - Chassis
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT
9•259
Chassis:
13. Step Switch - 7.5 amp Fuse
14. Step Motor - 25 amp Fuse
15. Reserved
16. Roof Horns - 15 amp Fuse
17. Sunvisors - 5 amp Fuse
18. Step Slide - 15 amp Fuse
19. Reserved
Accessories:
20. Rear Vision - 5 amp Fuse
21. Leveling Jacks - 15 amp Fuse
22. Air Dumps - 15 amp Fuse
23. Auxiliary Lights - 15 amp Fuse
24. Spot Light - 15 amp Fuse
Ignition:
25. Air Conditioner - 20 amp Fuse
26. Jack/Antenna Warning Lights - 5 amp Fuse
27. TV IGN Relay - 7.5 amp Fuse
28. Slide-Out - IGN Relay - 7.5 amp Fuse
29. Mirror Heater - 15 amp Fuse
30. Mirror Control - 1 amp Fuse
31. Reserved
32. Reserved
33. Step/ISO/Vac Sense - 7.5 amp Fuse
Marker (Chassis):
34. Marker Lights - 7.5 amp Fuse
Circuit Breakers:
Refrigerator 2-Way/3-Way 5/30A
Interior Fuse Panel 50A

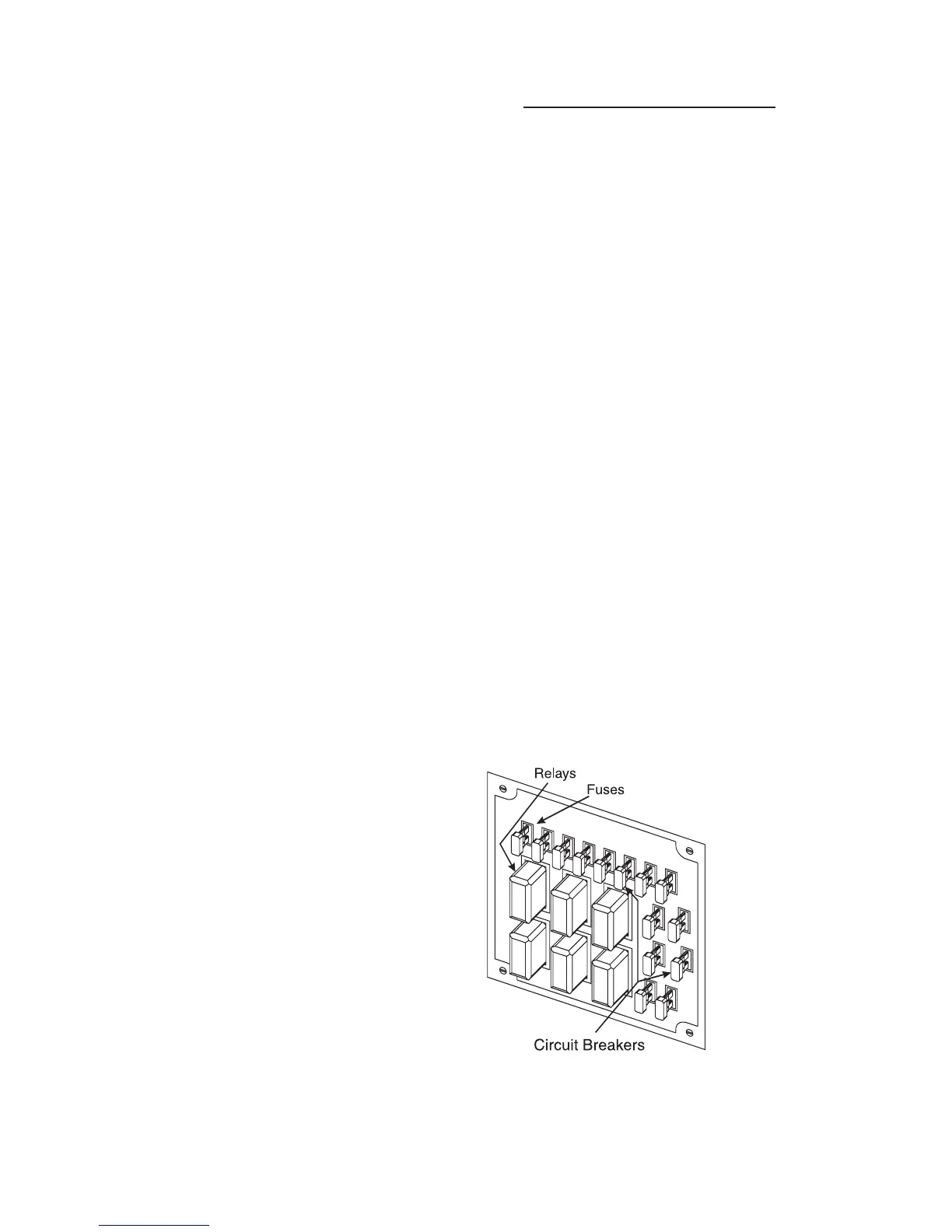

Monaco 1 Chassis Assignments:
FUSES, Left - Right - Down:
Marker Lights - 20A
Right Rear Turn - 15A
Left Rear Turn - 15A
Horn - 20A
Marker/Headlight Switch - 15A
Key Switch Feed - 10A
DRL - 25A
Reserved
ABS BAT - 20A
Reserved
ACC - 10A
Panel - 10A
CIRCUIT BREAKERS
Clutch Condenser - 20A
Wiper - 10A
RELAYS Left Top - Right Bottom:
Marker Lights
Left Rear Turn
ACC
Right Rear Turn
Horn
Clutch/Condenser
OM060004.eps
