NOTE: For error conditions not shown above, disconnect
Remote Control Panel for 30 seconds, verify that phone cable
is plugged in at remote and inverter/charger and verify that
batteries are above 10VDC. If condition persists, disconnect
incoming AC power from Inverter Charger and remove posi-
tive battery lead for 30 seconds.

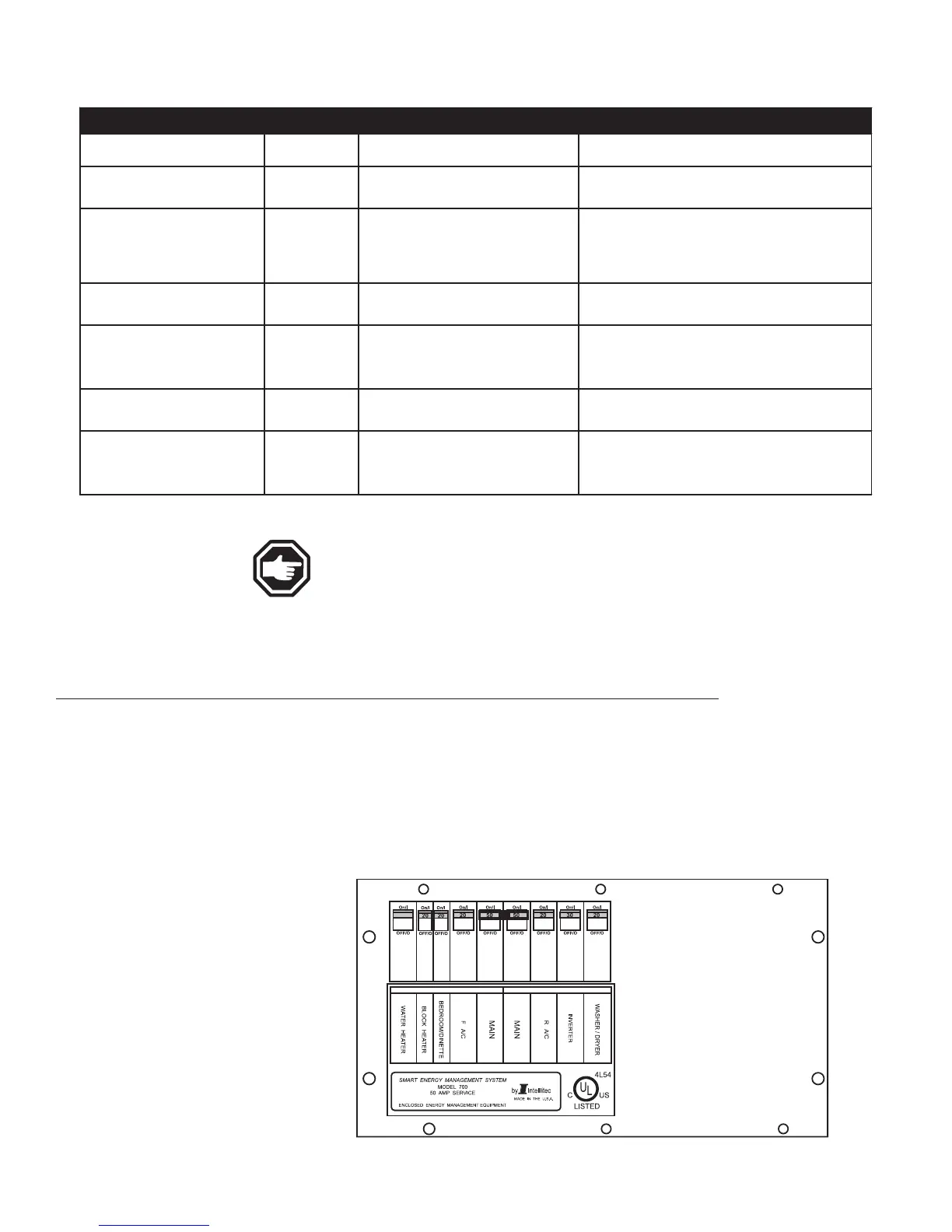

The AC distribution panel is located in the bedroom. The main AC panel 120
Volt circuit breakers receive power from the transfer switch, which is powered
by either shore power or the on board generator. Power is introduced into the
panel to the 50 Amp MAIN breaker first, followed by power being fed to the
individual branch circuit breakers. The panel label describes the breaker layout
and the item, outlet or appliance to which they pertain. Labels vary from model
to model.
LED Indication
Fault LED Error Detected Possible Solution
OVERTEMP On
OFF
Over temperature shutdown. Increase air circulation and allow to cool.
BATTERY STATE
Empty Blinking
ON
Low Battery Shutdown.
(too low to continue inverting)
Charge Batteries.
Battery STATE
Empty On
ON
Battery Overload.
(excessive ripple voltage during
charge)
Select lowest power share setting. Turn OFF
DC loads - Restart Charger.
15.5 VDC Blinking
(31.0 VDC in 24V System
ON
High battery shutdown.
Check other charging sources connected to
the battery.
AC IN blinking ON
AC Backfeed.
(external AC power detected at
inverter output)
Disconnect incoming AC power and correct
wiring.
INVERT blinking ON
Inverter overload
(too much AC load on inverter)
Reduce AC load on inverter. Reset by
pressing INVERT OFF and On.
CHARGE blinking ON
Charge overload.
(Battery voltage too low to
charge)
Check batteries. Turn OFF all DC loads.
Restart charger.
DISTRIBUTION
PANEL HOUSE 110
- AC Panel
20
LINE 1 LINE 2
