Electrical Systems - Chassis
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT
9•258
The front electrical panel is located on the roadside, ahead of the front
wheel. It contains the fuses, self resetting supply circuit breakers,
solenoid and relays.
The automotive fuses and emergency flashers are located in the front electri-
cal panel. The fuses are the standard plug-in type (ATO). When a fuse
“BLOWS,” the wire in middle of the plastic case will be broken. A bad or
blown fuse must be replaced with a fuse of the same rating and type. Using a
fuse of a different type rating will defeat the circuit protection provided by the
fuse, which could result in damage to the motorhome’s electrical system. If a
fuse has been replaced and it “BLOWS” repeatedly, that may be an indication
that a fault exists or an electronic component has failed. It is recommended that
the motorhome be taken to a qualified RV technician before any future use to
diagnose and repair the problem. Circuits are identified on the fuse label located
on the inside of the electrical compartment door.
Circuit Breakers And Fuses
House:
1. Slide-Out Room - 15 amp Circuit Breaker
2. LP/CO Detector - 3 amp Fuse
3. Power Seat (Driver) - 15 amp Circuit Breaker
4. Power Seat (Passenger) - 15 amp Circuit Breaker
5. Storage Lights - 15 amp Fuse
6. Service Lights/LP SOL - 15 amp Fuse
7. Auxiliary Start/TV AMP 7.5 amp Fuse
8. Reserved
9. Map Lights - 7.5 amp Fuse
10. C.B. Radio - 2 amp Fuse
11. Service Light/Aux Power Jack - 15 amp Fuse
12. Dash Fans - 15 amp Fuse
FUSES & CIRCUITS
- CHASSIS

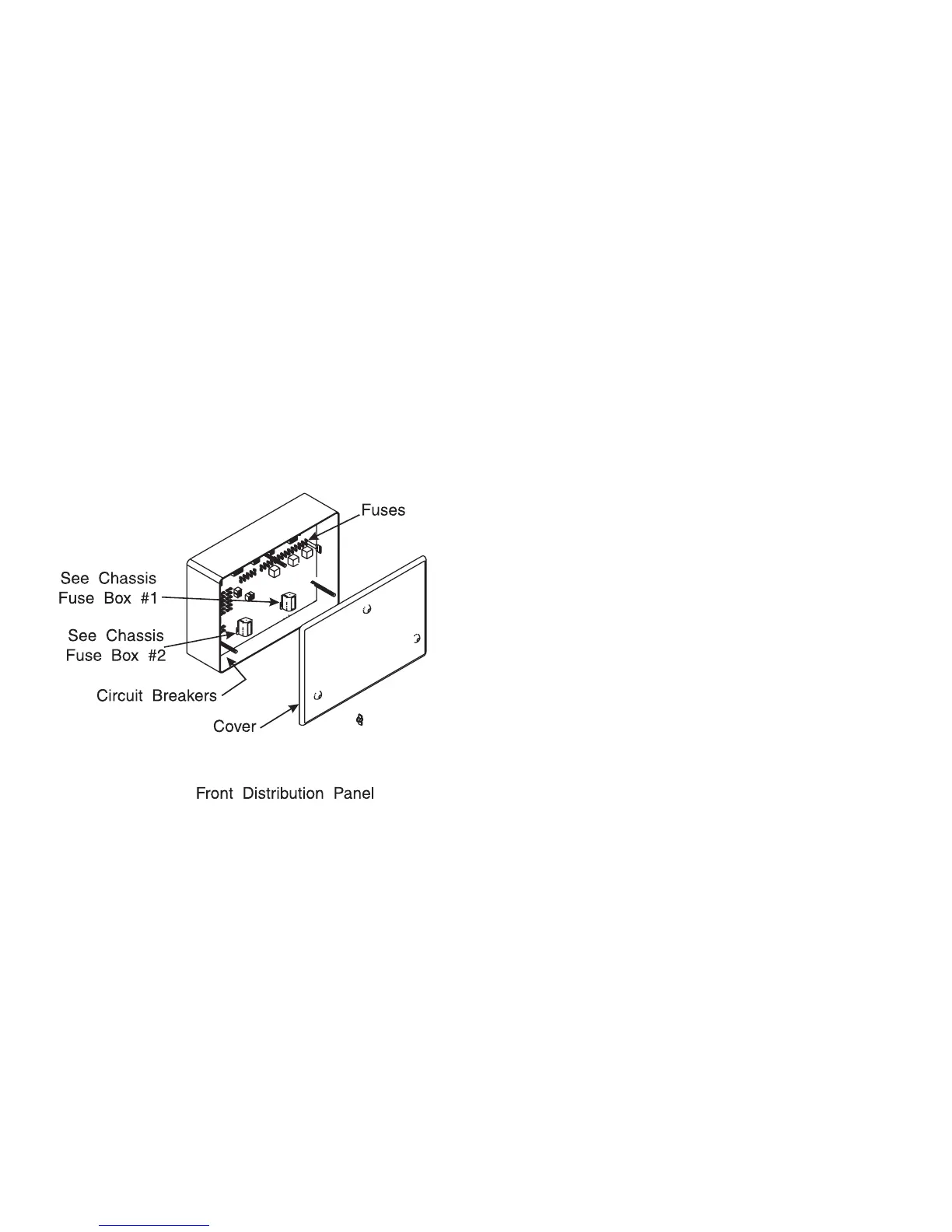

Distribution Panel -
Front
OM080236.eps
