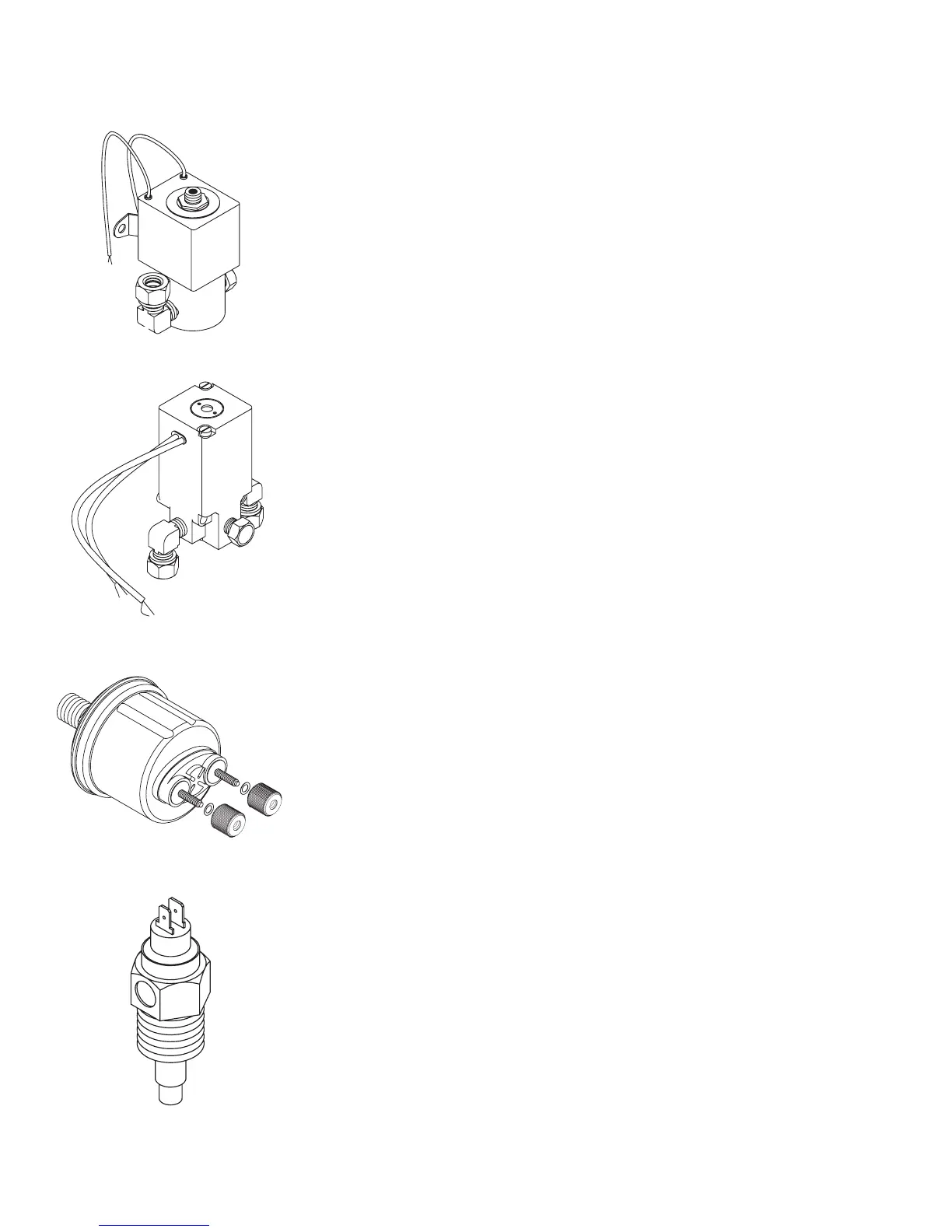

Rear Bag Dump Solenoid:
• Used on hydraulic level and air level systems.
• Dumps air in air bags on hydraulic level units and is used to dump air
from tag axle on air level units.
• Located in the engine compartment on the roadside, attached to frame
below alternator.
• Type- Allen Air 36BXA-HB
Front Bag Dump or Tag Axle Solenoids:
• Used on hydraulic level and tag axle units.
• Dumps air in front air bags and is used to raise or lower tag axle.
• Located in the generator compartment on the curbside.
• Type- MAC 225B-601BAAA
Oil pressure Sending Unit:
• One post is used for the oil pressure gauge and one post is for the
warning light.
• Type- VDO 360 0238NDO 0-100 Ohm
Water Temperature Sending Unit:
• One post is used for the water temperature gauge and one post is used
for the warning light.
• Type- VDO 323 0998
Chassis Information
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT
10•306
PARTS - COMMON SOLENOIDS & SENDERS
