NOTE: Do not use any petroleum based products on the slide
seal. Petroleum based products can damage the paint and will
cause premature aging of the rubber seal.
The slide lock can be useful for other functions in the unit. It does not have
to be stored when the slide room is extended. Some useful functions include a
towel bar in the shower to dry wet clothing or an extra closet rod.
If the slide bar is used for other functions follow a
few simple guidelines:
• Ensure the slide lock is straight as possible.
• Adjust the dimension nearest to the opening size. DO
NOT GO LARGER.
• The feet can be adjusted until they are ¼" shorter than
the opening.
• The foot on the brass bolt has 4 ½" of adjustment. Foot on
the silver bolt has 1 ½" of adjustment.
• Ensure slide lock is tightly in place before use. Use cau
tion when tightening if used on areas not reinforced.
Tip:
The silver bolt should face the outside wall, and then a clockwise rotation
will increase tension.
CAUTION: Do not work on the slide-out system unless the bat-
tery is disconnected.
NOTE: Do not leave the slide-out in the extended position dur-
ing severe weather. Conditions such as high winds or heavy
rain may cause damage to an extended slide-out.
NOTE: It is not recommended to extend the slide room in
snow, sleet, ice or freezing rain. There may be extensive damage
resulting from the awning freezing. In the event the slide-out
room is extended in snow, sleet, ice or freezing rain conditions,
it is recommended you clear the awning and ensure free
movement prior to retracting the slide room.
The motorhome is equipped with a remote control color television located
above the pilot seat. The outlet for front TV is controlled by the ignition switch
so that the front TV can only be viewed while the vehicle is at rest. The TV
operates from 120 Volt AC power only, which can be provided by shore power,
the generator or the inverter. Viewing time of the front TV from the inverter
depends on the state of charge of the house batteries and any additional 12 Volt
DC lighting being used.
Equipment
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT
5•142
ENTERTAINMENT
CENTER - HOME
Front Television
Lock-Out

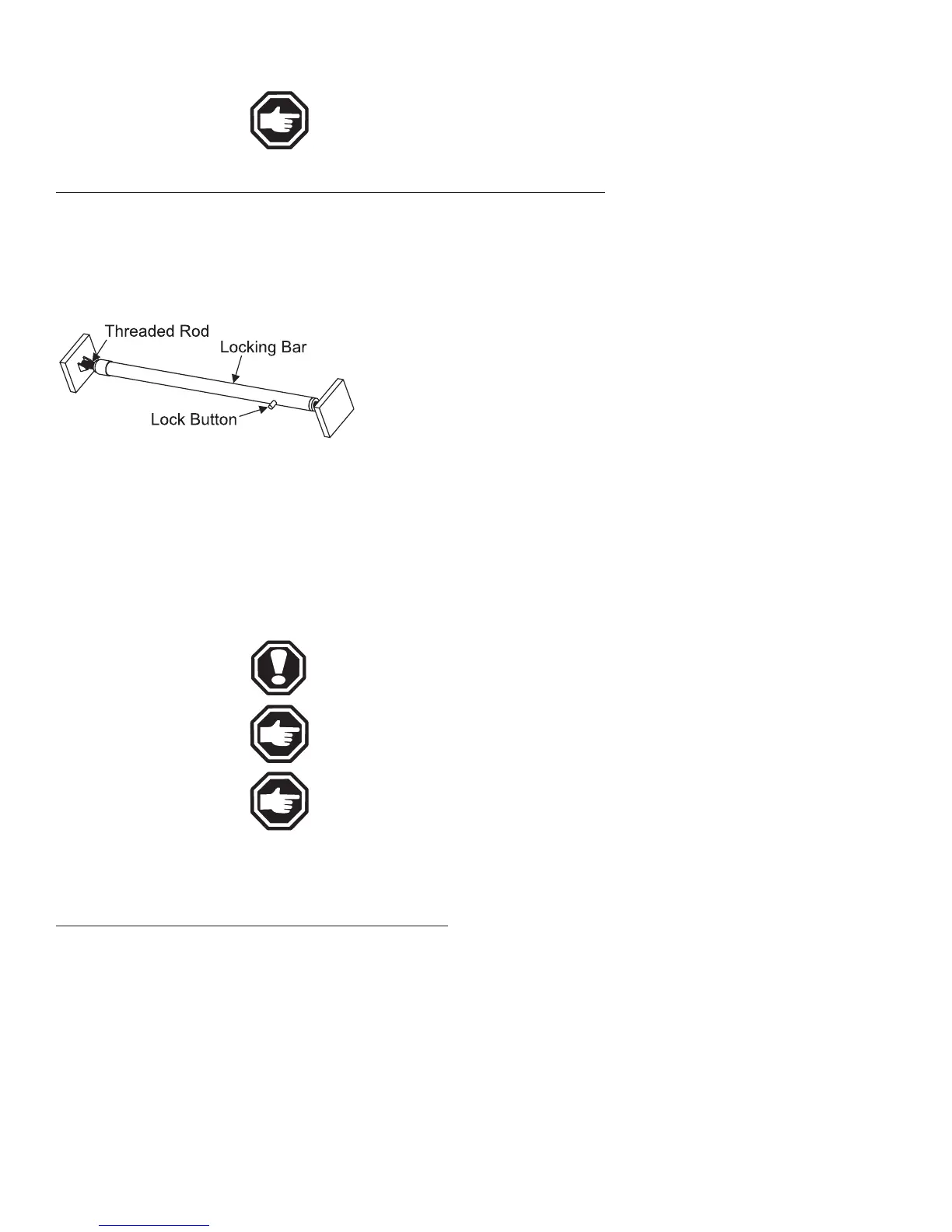

SLIDELOCK
OM030802.eps
