The motorhome is prewired with a trailer wire
harness. The harness is located on or near the hitch
receiver. Convoluted tubing protects the tow harness
wires. Current draw should not exceed ten amps for
each designated circuit.
NOTE: When towing a trailer or vehicle with a
two-wire system, a turn signal/brake light convert-
er will be needed to adapt the tow plug wiring to
the item being towed.
The motorhome is equipped with a rear vision and voice system. The fac-
tory will provide the wiring behind the dash and at the rear cap for future
installation. The rear vision system consists of a camera with a microphone
and a monitor.
The driver can see what is behind the motorhome with the ability to listen
to a guided assistant. This is useful during backing procedures. The rear
vision system will automatically turn ON when the gear selector is placed in
reverse. Turning the main power switch to ON will allow continuous opera-
tion of the rear vision system when the ignition key is turned ON.
For more detailed instructions see the manufacturer’s man-
ual.
Systems Features Overview:
The system is designed to provide the driver with a view of the rear of
the motorhome. The field of view is 140º in the diagonal plane, 121º in the
horizontal plan and 90º in the vertical plan. Power will be supplied to the
system when the ignition key is turned to the Accessory or ON position. The
green LED will illuminate. The display on the monitor is controlled by the
position of the power switch. When in the ON position the display is present.
When placed in the S/B (Standby) position the display is off until the gear
shift lever is set to Reverse.
Monitor Controls:
• Power Switch - The switch in the ON (in) position turns on the
monitor for viewing. The green LED indicator will illuminate. When
the switch is OFF (out) the monitor is in a standby mode of operation.
The green LED will remain illuminated when the ignition is ON. The
monitor will display rear viewing when the transmission is shifted to
Reverse.
• Camera Selector - This switch should be left in the CAI (out) position.
CA2 (in) position is not used in the motorhome.
Driving & Safety
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT 2•31

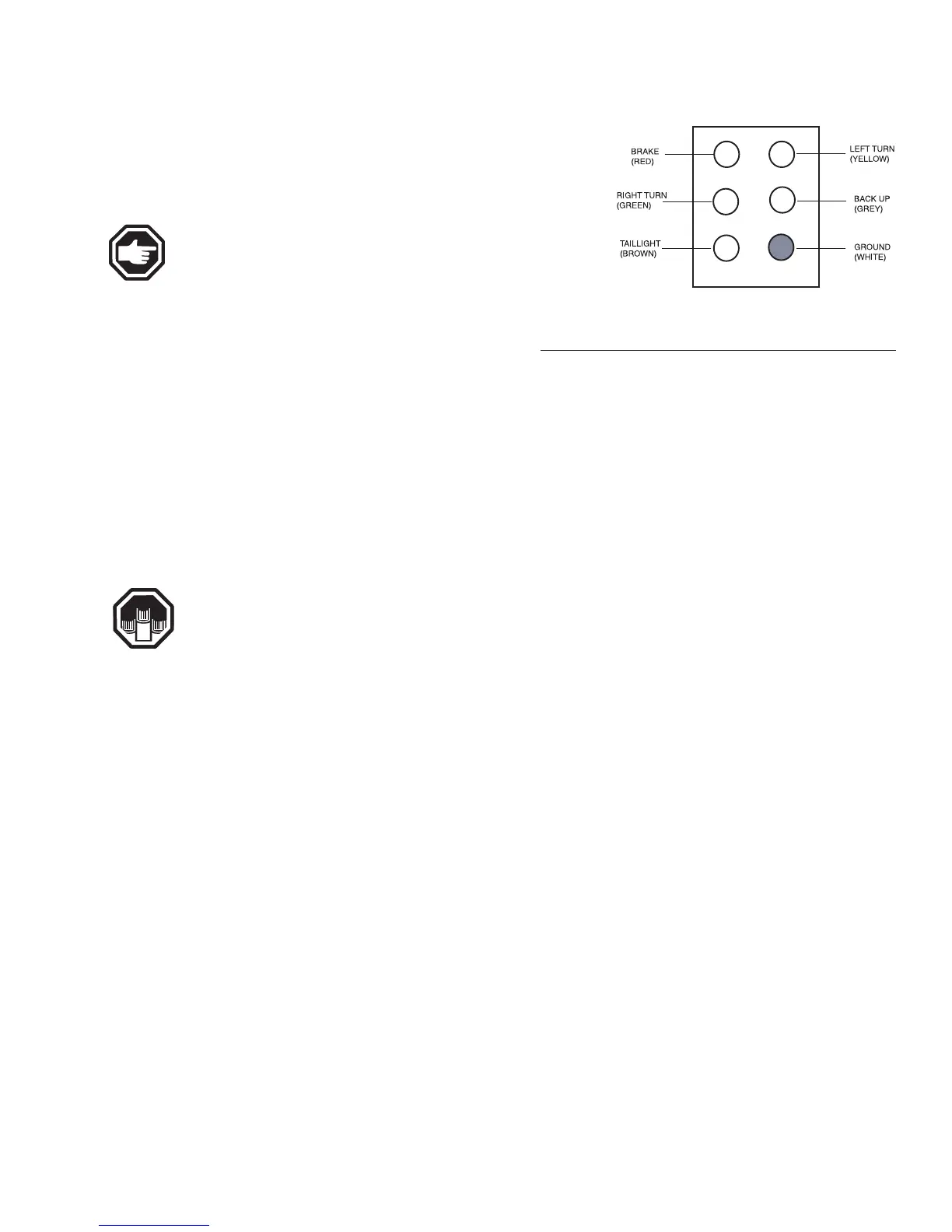

Tow Plug Connection
OM020166.eps
REAR VIEW
SYSTEM
