Electrical Systems - Chassis
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT
9•260

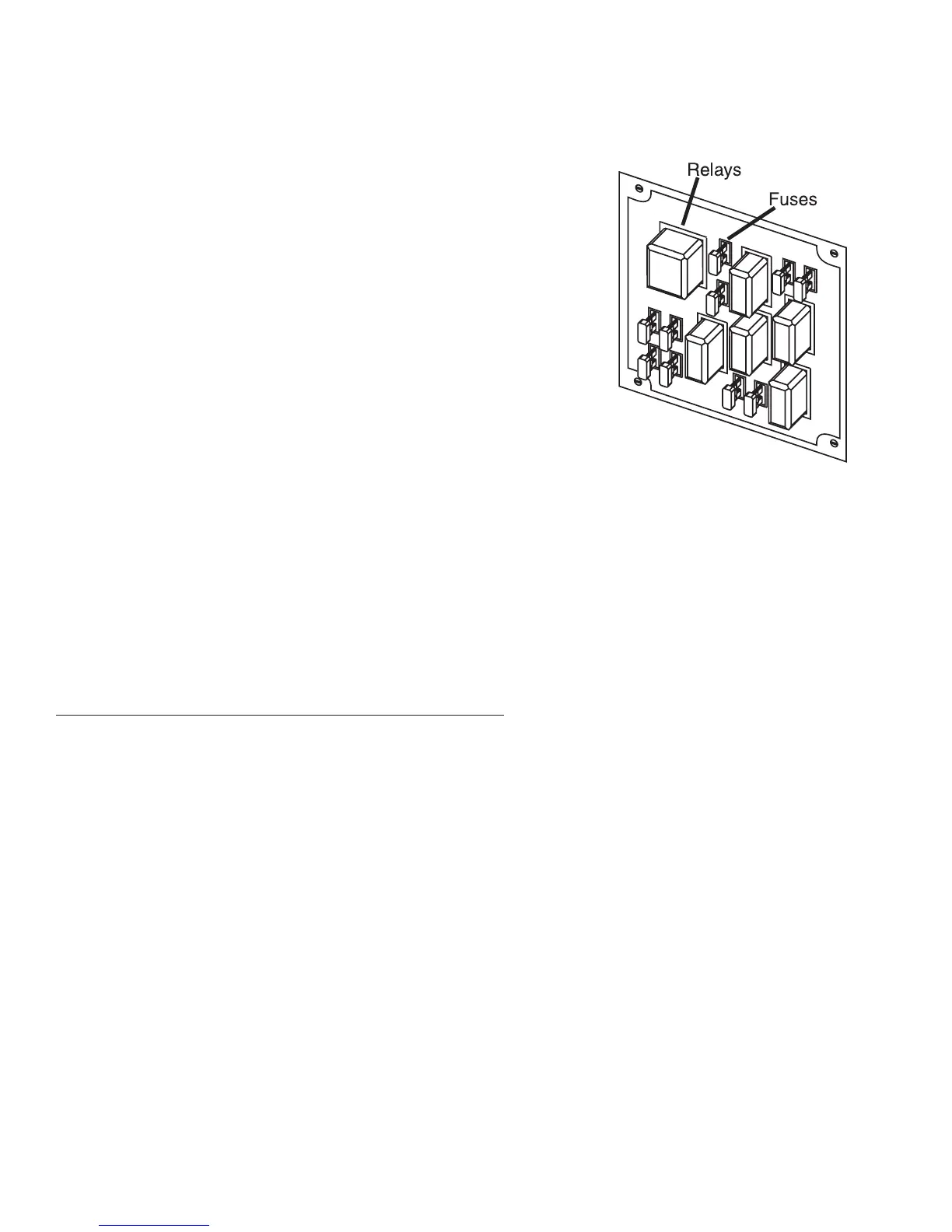

Monaco 2 Chassis Assignments:
FUSES, Left Top - Right Bottom:
Park Bell - 10A
Brake Lights - 20A
Head Lights - 25A
Hazard Flasher - 20A
Park Bell - 10A
Exhaust Brake - 20A
Air Dryer - 15A
Turn Flasher - 20A
Back-Up Lights - 15A
ABS IGN - 5A
Dash IGN - 10A
Eng/Trn IGN - 5A
RELAYS Left Top - Right
Bottom:
Ignition
Park Bell 1
Park Bell 2
Exhaust Brake 2
Exhaust Brake 1
Brake Lamps
The Leece-Neville alternator with integral rectifier and regulator and remote
voltage sensor is designed for reliable high output at all RPMs. This alternator
offers high output over a broad range of operating speeds. The 4800JB delivers
the same reliable, heavy duty performance all Leece-Neville alternators are
known for. The 4800JB features an integral regulator and rectifier for compact
installations. Always keep a close eye on the voltmeter in the dash area.
The alternator should replace the ampere-hours taken from the battery at
start. The amount of charge given to a battery is dependent on engine run time.
This allows maintaining a 75% level with enough energy to power the electrical
systems. Driving the motorhome for a short distance, or short periods of time,
may prevent the battery from reaching above 75% level.
ALTERNATOR
OM060005.eps
