The parking brake system is activated when the push-pull control knob
(located on the driver’s left console panel) is pulled. When the knob is pushed,
the brake is released. Prior to driving, allow time for the air compressor to build
up sufficient air to shut off the air warning lamp.
WARNING: If the air tank is not dumped, there is the possi-
bility of an accidental release of the parking brake. Traveling
with small children and/or pets may require a small block to
be fabricated to prevent accidental release. The block should
be placed under the knob and rested on the dash panel. A
wooden clothes pin clasped at the base of the shaft will work.

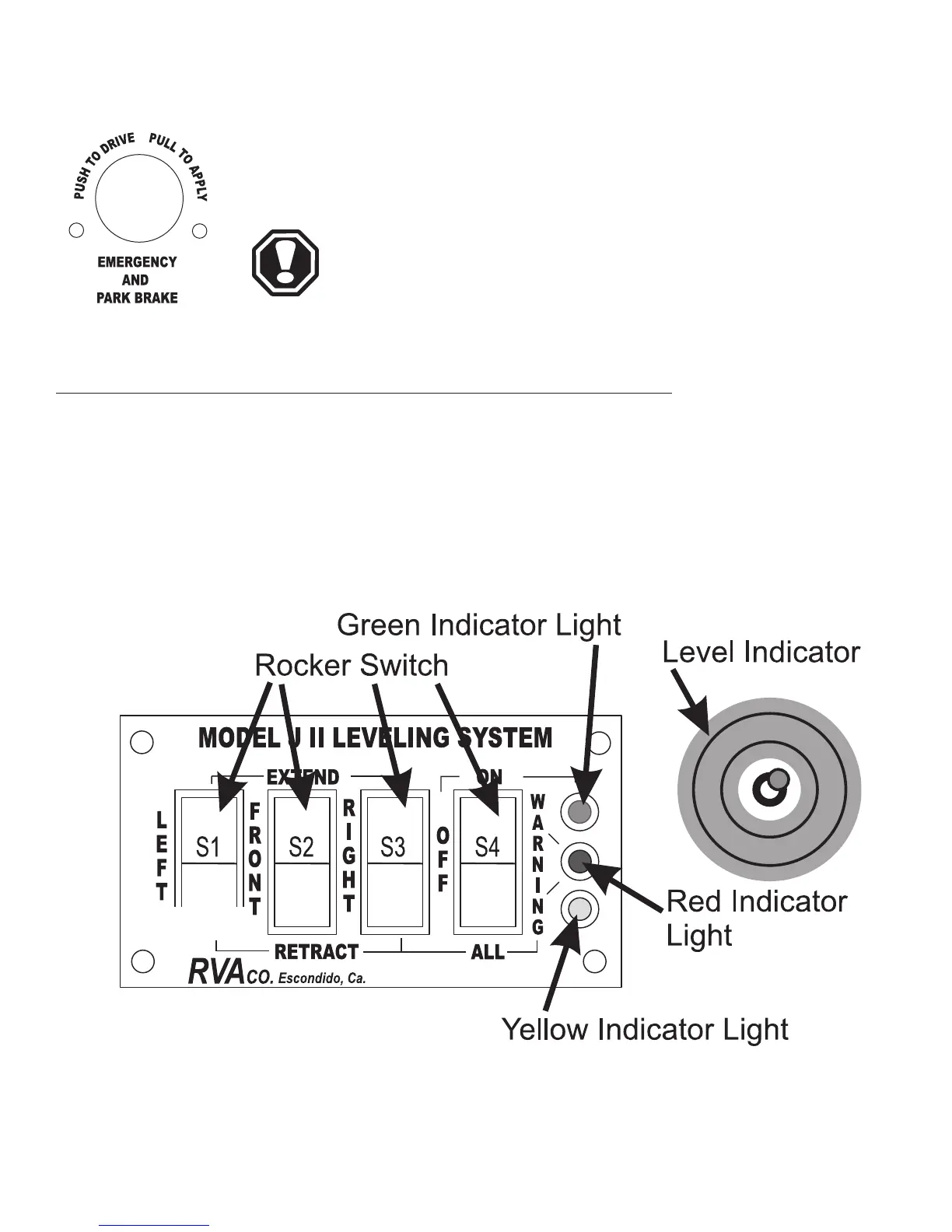

The hydraulic leveling system is manually operated from the control panel. A
feature of the control panel is a multiple warning system with flashing lights.
The system alerts the driver of any leveling jacks which are in the down posi-
tion.
Parking Brake
Leveling Controls
OM080313.eps
OM080247.eps
