POWER SHARE - Limits the amount of external AC current used by the
charger. If the total AC load is larger than AC power available, the
external AC circuit breakers may trip. Select a lower POWER SHARE
setting to reduce AC power consumption by the charger, thus reducing the
total AC load.
Enter the SETUP mode by pressing and holding SETUP for 5 seconds
until the LED blinks. The Remote automatically exits from the SETUP mode.

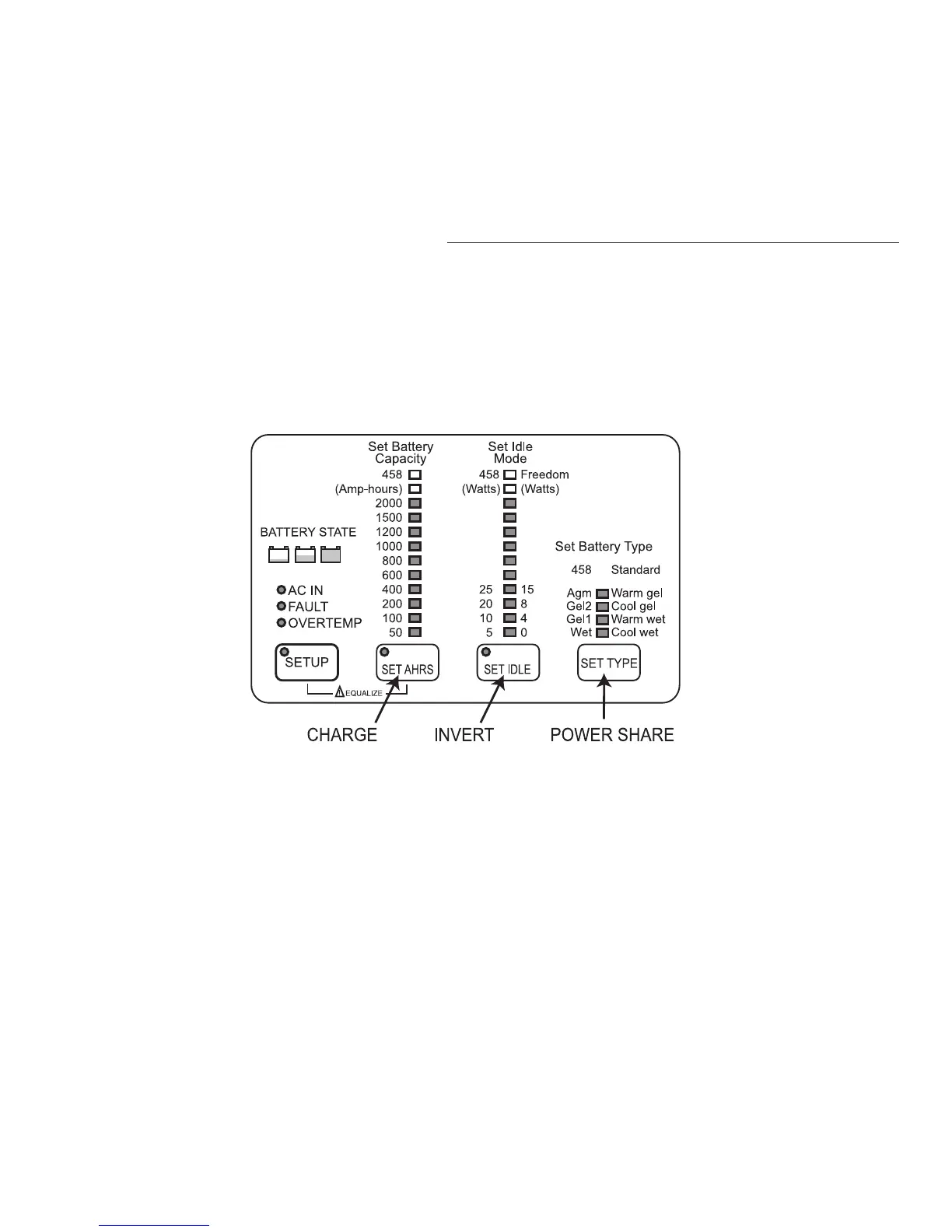

Use Remote buttons, SET AHRS, SET IDLE or SET TYPE to select SETUP
features.
OPERATING TIP: Battery type and battery capacity are the most critical
setup settings.
SET AHRS (Battery Capacity (Amp-Hours) - Using CHARGE, set the
Amp-Hour rating of the battery bank. This information is used to determine the
charge parameters for the battery. Default setting varies:
1500-2000W: 400 Amp-Hours
SET IDLE (Idle Load (Watts) - Using INVERT, select idle setting. If
present inverter loads are less than the selected value, the inverter will remain
in IDLE MODE. Idle mode prevents unnecessary power drain on the battery
when no AC loads are in use. When an AC load is turned ON and the load draw
exceeds the idle value, the unit begins full power inverting. When the appliance
is turned OFF, the inverter returns automatically to IDLE MODE. A setting of
“0” disables IDLE MODE.
Default: 10 Watts.
