• Loosen locking knobs for both arms and
extend arms so that canvas will clear door in
the open position.
To Retract Awning
• Loosen locking knobs for both arms. Lower
arms to stop bolts. Tighten knobs.
• Untie the pull strap with a firm grip until ten-
sion is off the inner arms. Fold brace into
main arms.
• Carefully allow material to wind onto awning
roll tube while holding strap in neutral
position. This will allow material to roll up
evenly.
• Awning end caps should be against the rubber
bumpers. If one end cap is off, pull down on
awning pull strap while holding strap slightly
to opposite side, allow ing awning to roll back
up into position.
• Lock awning in position by raising lock up all
the way.
CAUTION: When the awning is at full extension do not allow
the awning to snap back into the retracted position. Personal
injury or damage to the awning or motorhome may occur.

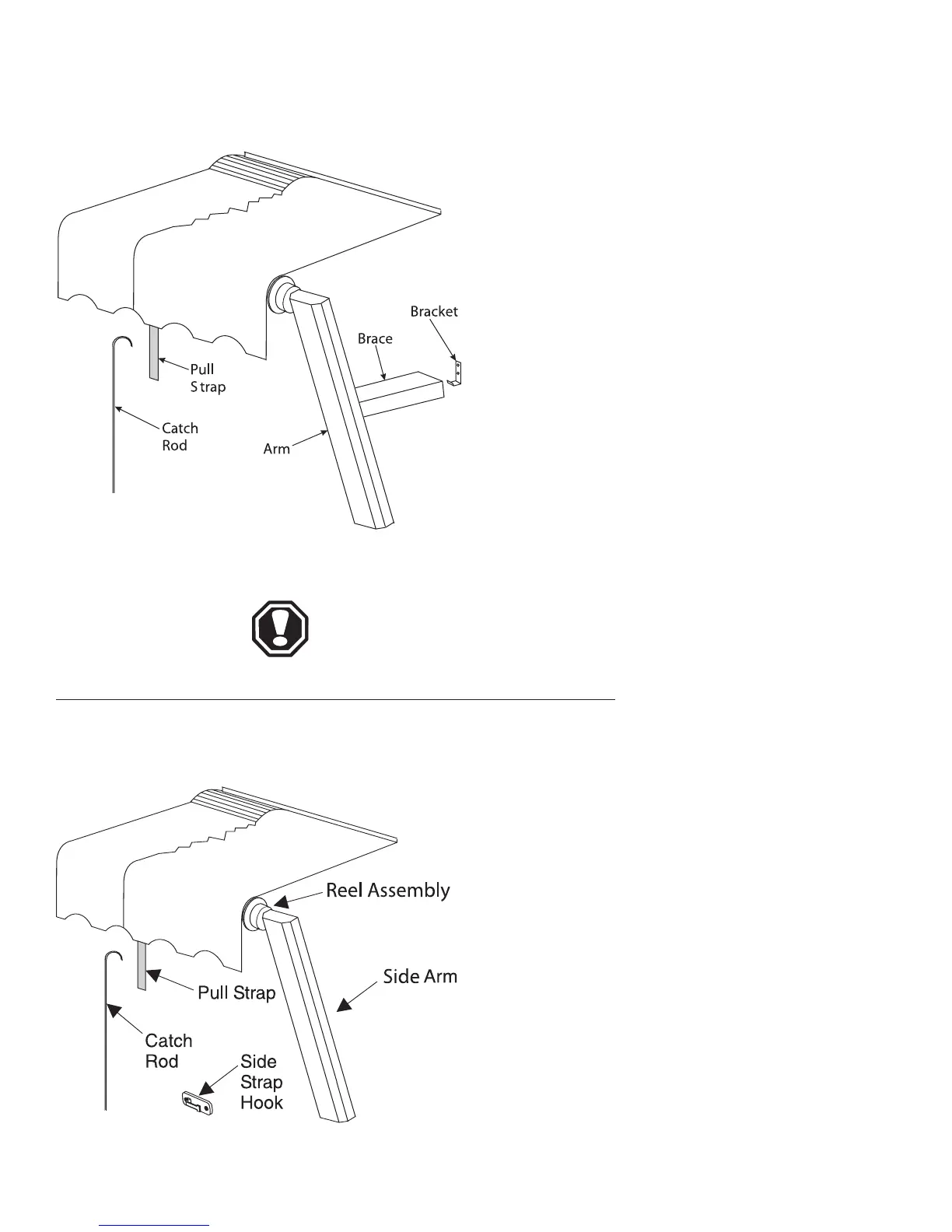

To Extend Awning
• Hook loop of pull strap with catch rod and pull
awning, reel assembly and side arms to extend
fully away from motorhome
• Hook pull strap on side strap hook, remove
catch rod from pull strap and store.
To Retract Awning
• Hook catch rod on pull strap, remove pull strap
from side strap hook and slowly allow awning
to retract.
• Remove catch rod from pull strap and store.
Equipment
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT
5•156
OM020013.eps
Window Awning
(Optional)
OM030792.eps
