If the motorhome was not ordered with an optional washer/dryer, it will
have a washer/dryer preparation package installed from the factory. The
washer/dryer “prep” package includes the following items:
1. Color coded water supply lines. A red line for hot; a blue line for cold.
2. An 1½ in. waste water drain line with threaded cap, p-trap and an auto-
matic vent cap. This will drain the waste water into the grey water hold-
ing tank.
3. A 120 Volt receptacle located in the compartment.
NOTE: Sidewall dryer vents are not part of the prep pack-
age. If a sidewall vent is to be installed be sure to properly
seal vent to sidewall.
If a washer/dryer is to be installed at a later date be sure to follow all the
manufacturer installation instructions. Listed here are further instructions
which should be adhered to for safe and reliable operation:
• Do not connect the clothes dryer exhaust duct to any other duct,
vent or chimney.
• Do not terminate the exhaust duct beneath the motorhome.
• Be sure to use proper length fastener when attaching exhaust vent
to exterior sidewall. Stainless steel fasteners are best suited for this
as they will not rust.
• If the cabinet or closet in which a washer/dryer is installed does
not have vented louvered doors, the manufacturer’s installation instruc-
tions may require installation of vented doors or vents to be
installed in the doors. This is for sufficient circulation of drying.
The automatic washer/dryer has a capacity of up to 10 lbs. (4.5 Kg.) of dry
clothing. It is front loading with an extra large door opening for easier access.
It has five wash cycles, in addition to extra rinse and
spin cycles.
• The washer/dryer operates on 120 Volt AC.
• To operate the washer/dryer you will need to be
plugged into shore power.
• The washer/dryer water use will be approximately
16 gallons of water.
Appliances
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT 4•127
WASHER/DRYER
PREPARED

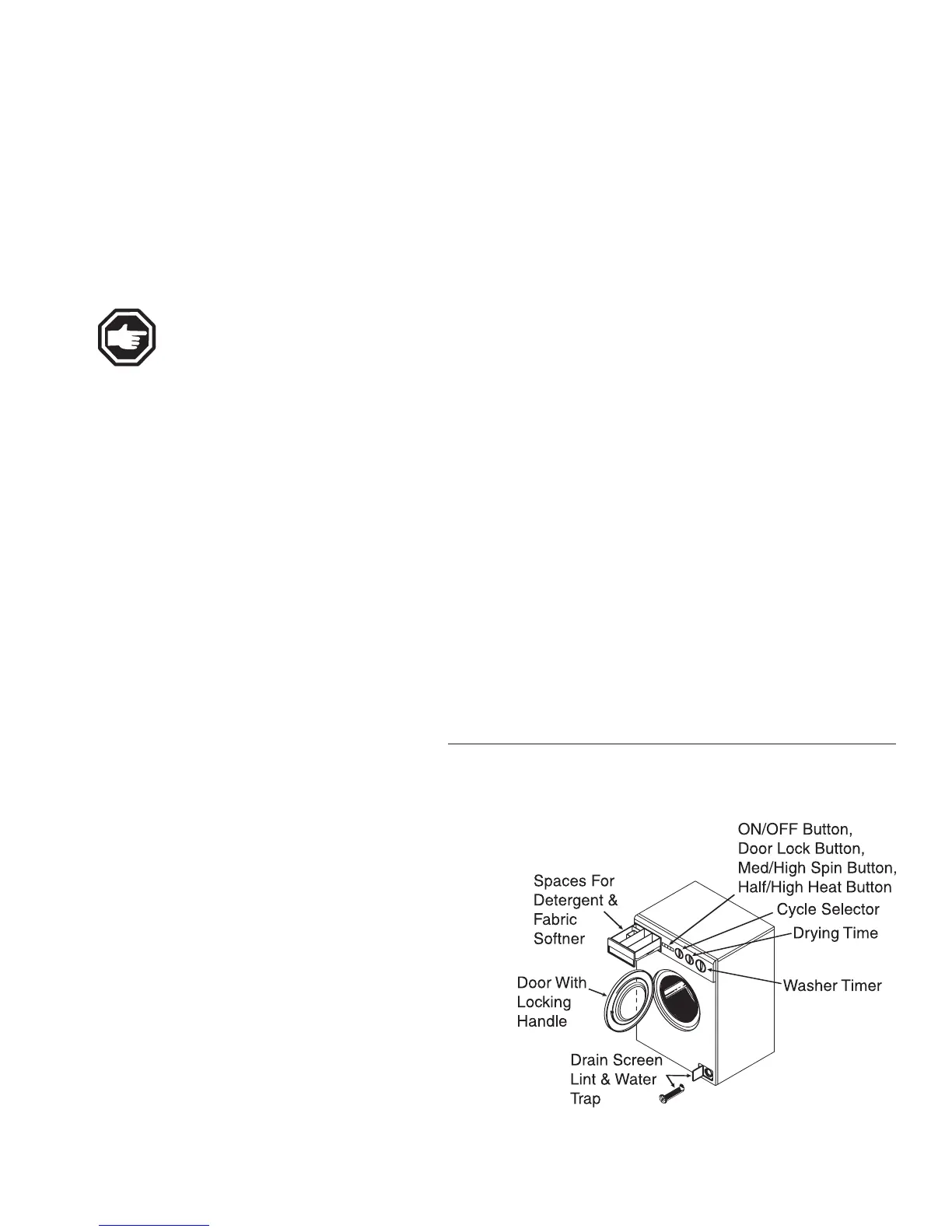

WASHER/DRYER
