Electrical Systems - Chassis
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DIPLOMAT
9•248
NOTE: Never drive the motorhome with the air bags deflated.
This may damage the motorhome.
INC/DEC: Will increase and decrease the engine idle in 25 rpm increments.
There are limits to the idle speed, about 700 to 875 rpm.
ENG DIAG: Checks engine functions.
RADIO: Applies power to the dash radio. This will allow the radio to be turned
ON and OFF independent of the main radio switch.
GEN START: Starts and stops the generator from the dash area.

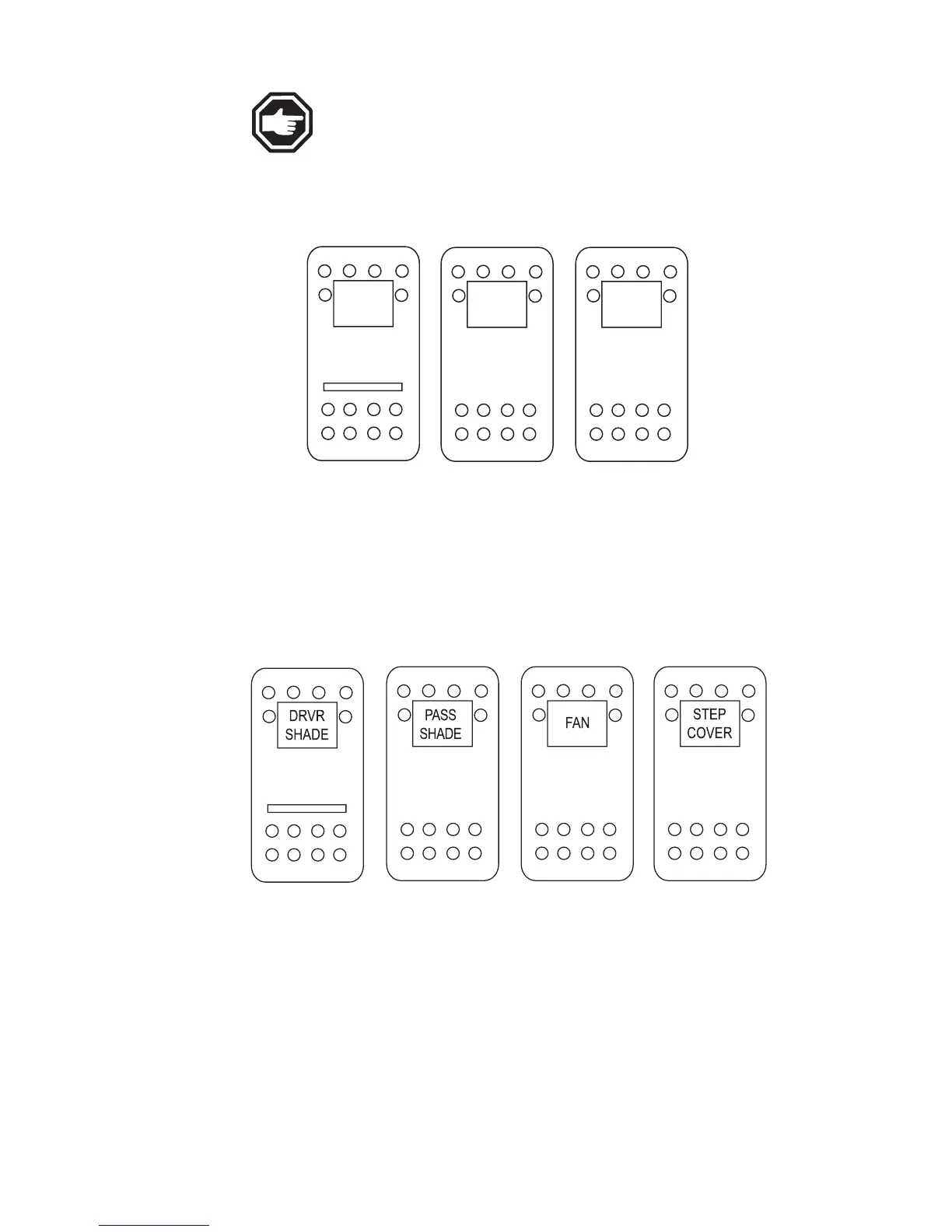

LH SHADE: Operates the power sun visor located on driver’s side.
RH SHADE: Operates the power sun visor located on passenger side.
FAN: Operates the optional dash fans.
STEP COVER: The motorhome is equipped with a sliding stepwell cover that
is extended and retracted by use of a dual action air cylinder. An electrically
operated air valve controls the air cylinder. The air solenoid, known as a
