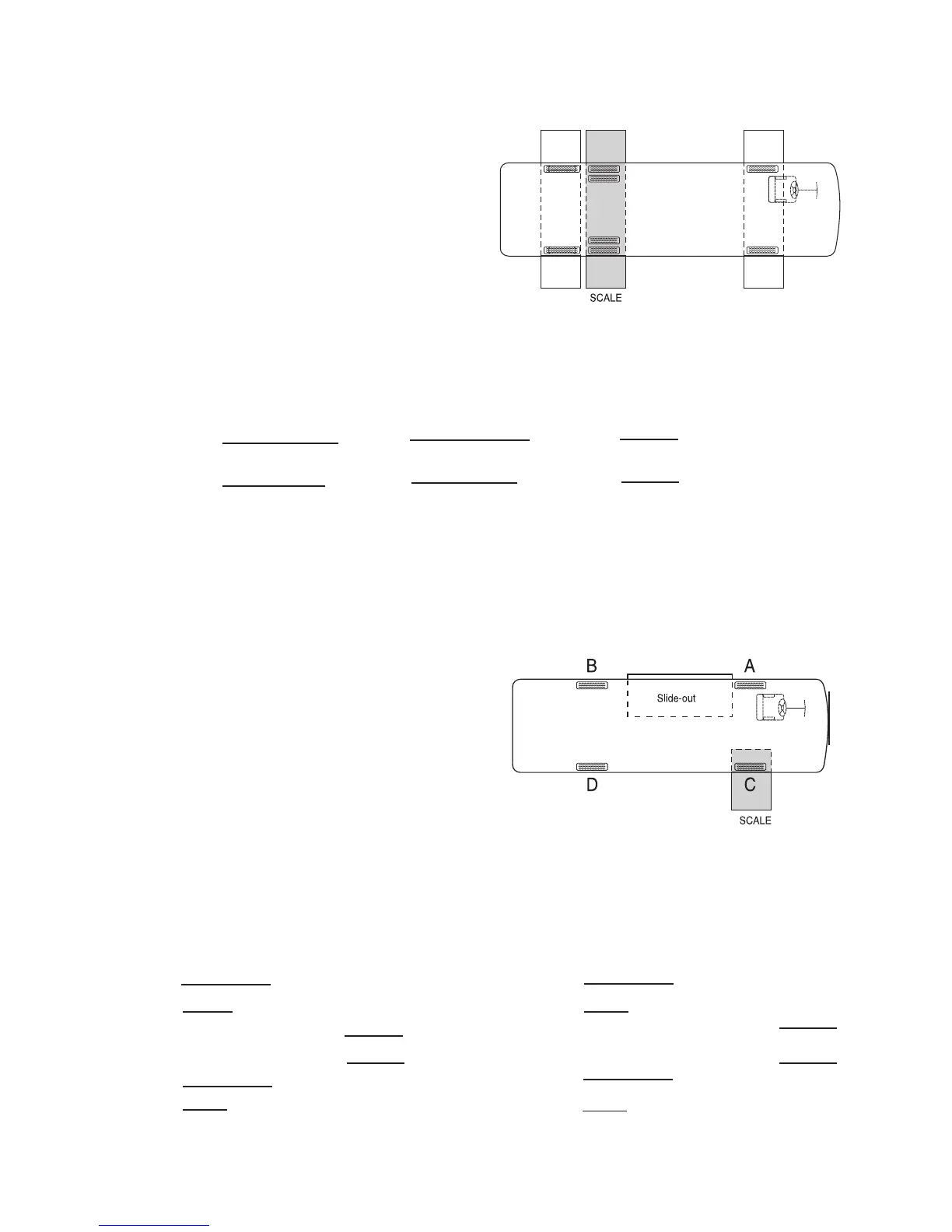

Weighing a two axle non-slide motorhome.
• Record the Gross Axle Weight Ratings
(GAWR) and the Gross Vehicle
Weight Rating (GVWR).
• Weigh and record each wheel position
or Total Axle Weight.
• If necessary, adjust the payload so the
GAWR is not exceeded. Total com-
bined weights must not exceed the
GVWR.
• Using the tire chart, locate the recom-
mended air pressure for the weight carried by each tire. Adjust
the tire pressure accordingly.
Weighing a two axle slide-out motorhome.
• Slide rooms must be in the retracted
position.
• Record the gross axle weight ratings
(GAWR) and the Gross Vehicle Weight
Rating (GVWR).
• Weigh and record the weight placed on
each tire.
• If necessary, adjust the payload so the
GAWR is not exceeded. Total com-
bined weights must not exceed the
GVWR.
• Using the tire chart, locate the recom-
mended air pressure for the weight car-
ried by each tire. Adjust the tire pres-
sure accordingly.
